YH4
GRAND
VITARA

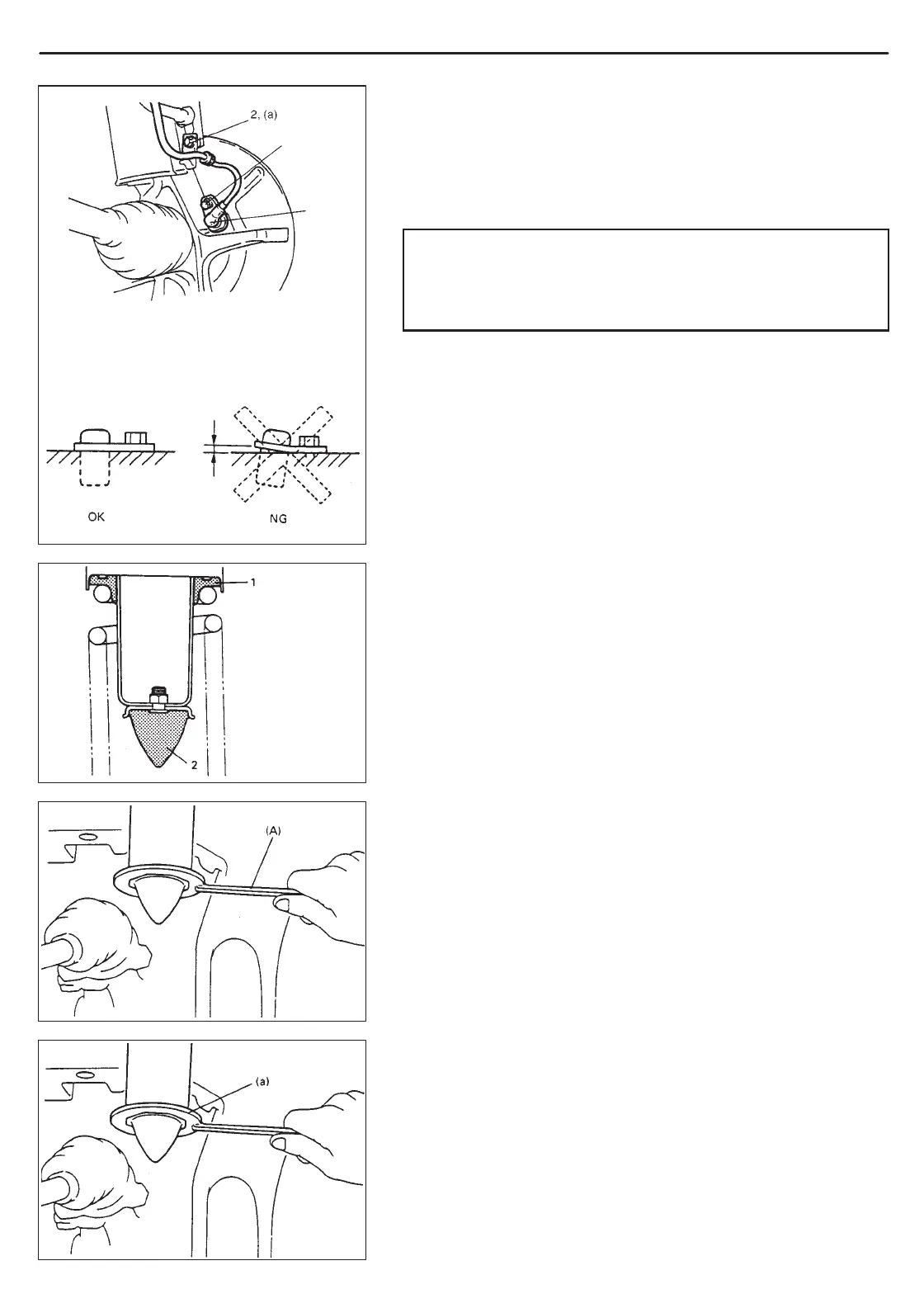

FRONT SUSPENSION 3D-11
1. Front wheel speed sensor
2. Bolt
1. Spring rubber
seat
2. Bump stopper
2, (b)
1
Check that no foreign material is attached to sensor and rotor.
Install wheel speed sensor and its harness clamp.
Tightening Torque
(a): 10 N
.
m (1.0 kg-m, 7.5 lb-ft)
(b): 23 N
.
m (2.3 kg-m, 17.0 lb-ft)
CAUTION:
Do not pull wire harness or twist more than necessary
when installing front wheel speed sensor.
Fit harness grommet to inner fender securely.
Check that there is no clearance between sensor and knuckle.
BUMP STOPPER/SPRING RUBBER SEAT
REMOVAL
1) Remove coil spring. Refer to steps 1) to 15) of item “COIL
SPRING REMOVAL” in this section.
2) Remove spring rubber seat.
3) Remove bump stopper, using special tool.
Special Tool
(A): 09941-66010
INSTALLATION
1) Tighten bump stopper to specified torque, using special tool.
Tightening Torque
(a): 50 N
.
m (5.0 kg-m, 36.5 lb-ft)
2) Install spring rubber seat.
3) Install coil spring. Refer to item “COIL SPRING INSTALLATION”
in this section.
To Next Page
