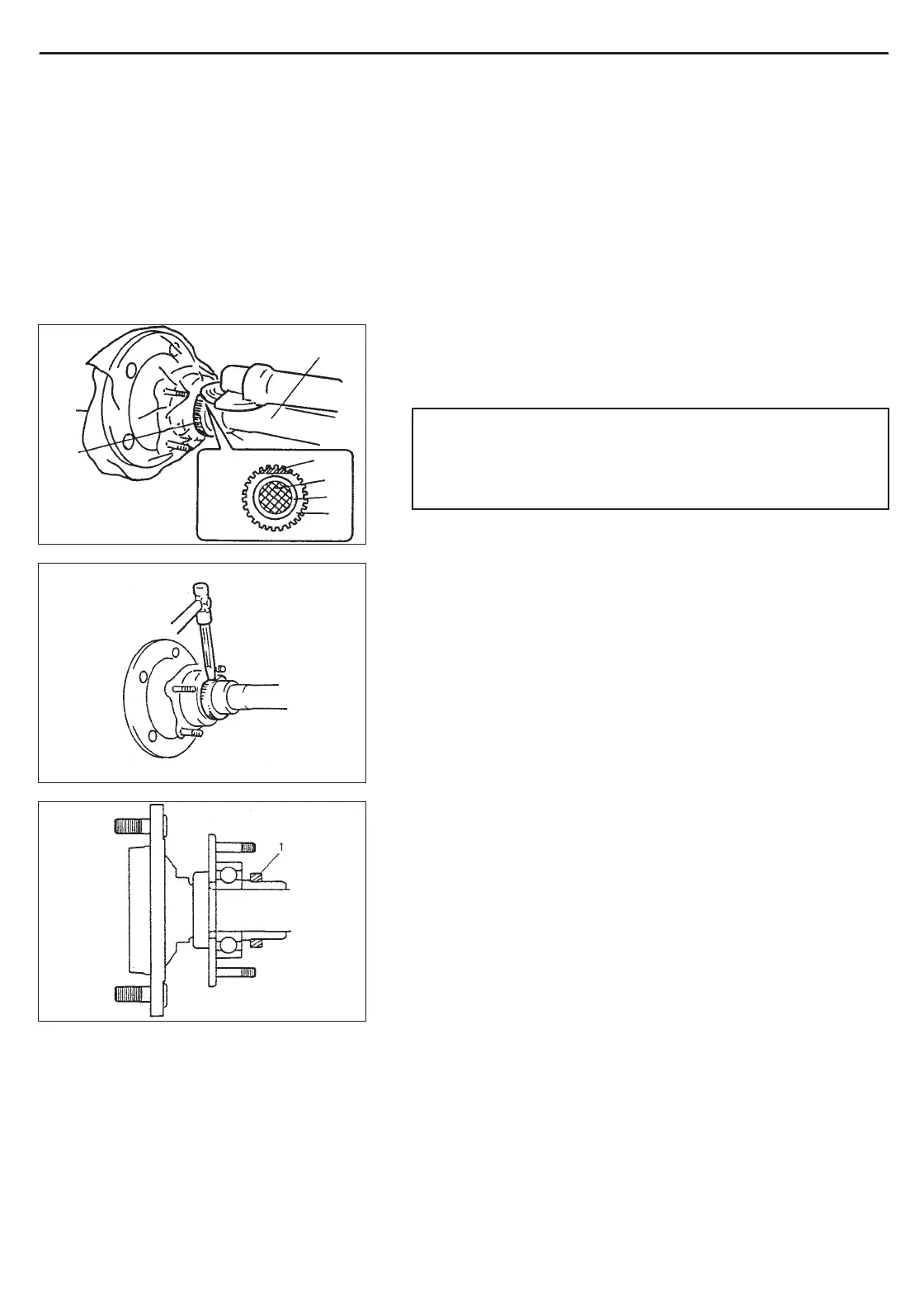

ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL) 5E1-39
1. Rear axle
2. Retainer ring
3. Sensor rotor
4. Vinyl envelope
“A” Grind with grinder
“A”
1. Sensor rotor
4
3
1
2
2
1
3
REAR SENSOR ROTOR
REMOVAL
1) Remove rear axle shaft. Refer to REAR AXLE SHAFT RE-
MOVAL in Section 3E.
2) In order to remove sensor rotor from retainer ring, grind with a
grinder one part of the sensor rotor as illustrated till it becomes
thin.
CAUTION:
 Cover vinyl sheet or the like over wheel bearing so that
fine grains from grinding will not enter there.
 Be careful not to go so far as to grind the retainer ring.
3) Break with a chisel the thin ground sensor rotor, and it can be re-
moved.
INSTALLATION
1) Press-fit sensor rotor as shown.
NOTE:
Use care not to cause any damage to outside of retainer
ring.
2) Install rear axle shaft. Refer to REAR AXLE SHAFT INSTALLA-
TION in Section 3E.
