YH4
GRAND
VITARA

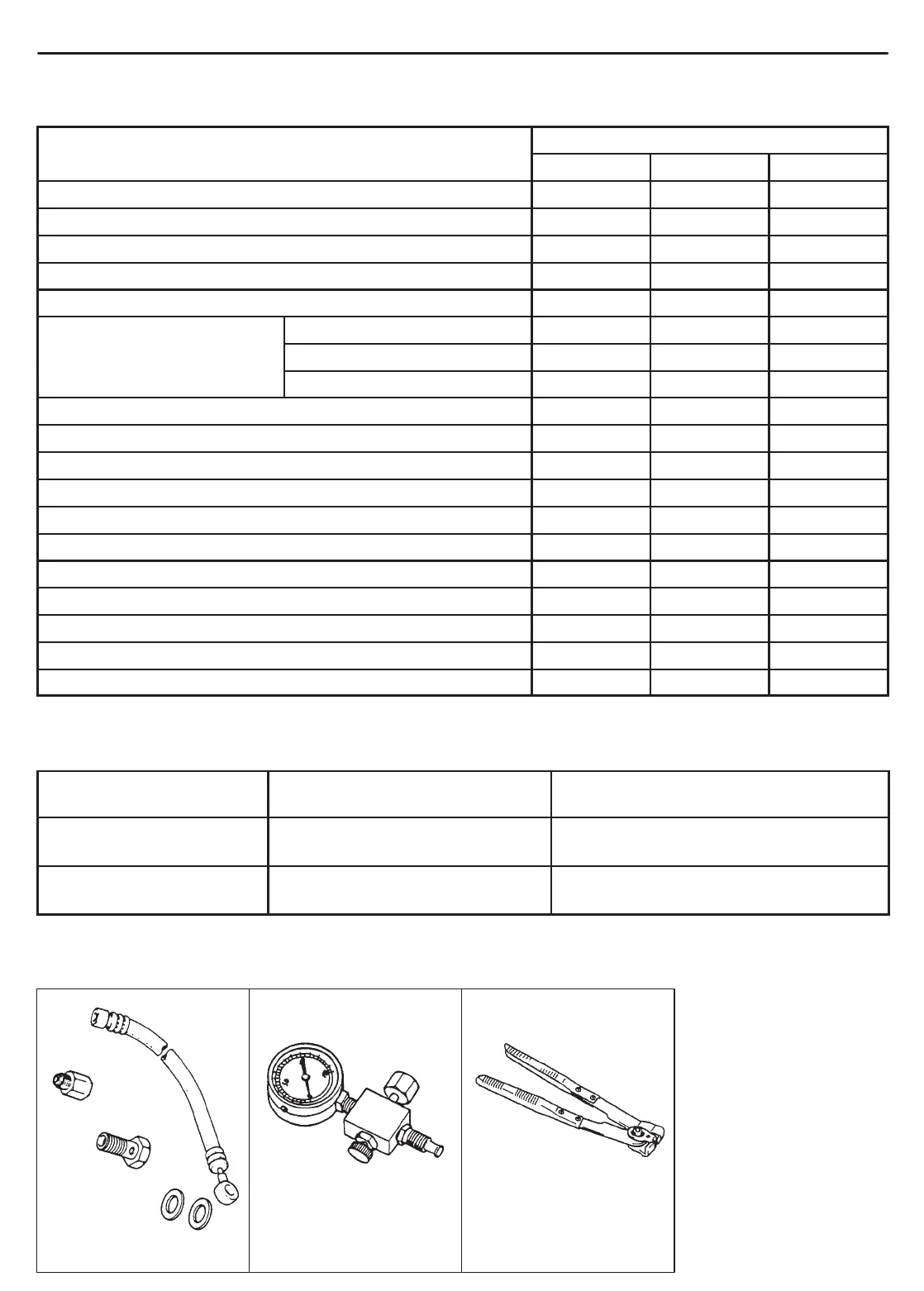

3B1-26 POWER STEERING (P/S) SYSTEM
09915-77420
Oil pressure gauge
attachment and hose set
09915-77410
Oil pressure gauge
09943-55010
Boot clamp plier
TIGHTENING TORQUE SPECIFICATION
p
Tightening torque
N
.
m kg-m lb-ft
Gear box mounting bolts 55 5.5 40.0
Gear box cylinder pipe flare nuts 29 2.9 21.0
Gear box low pressure pipe union bolt 40 4.0 29.0
Gear box high pressure pipe union bolt 35 3.5 25.5
Tie-rod end lock nut 65 6.5 47.0
G16 Type engine 55 5.5 40.0
Pump bracket bolt
J20 Type engine 25 2.5 18.5
H25 Type engine 45 4.5 32.5
Pump union bolt 60 6.0 43.5
Oil pump mount bolts 25 2.5 18.5
Pipe clamp bolt/Reservoir bracket bolt 11 1.1 8.0
Steering shaft joint bolt 25 2.5 18.0
High pressure flare nuts 40 4.0 29.0
Pump cover bolts 23 2.3 17.0
Plug 60 6.0 43.5
Pressure switch (Terminal) 28 2.8 20
Suction connector bolt 10 1.0 7.5
Tie-rod end nut 48 4.8 35.0
Tie-rod (for canvas top LH model only) 85 8.5 61.5
REQUIRED SERVICE MATERIAL
MATERIALS
RECOMMENDED
SUZUKI PRODUCT
USE
Lithium grease
SUPER GREASE (A)
(99000-25010)
Oil seal lip of P/S pump pulley shaft
Power steering fluid
An equivalent of DEXRON
-III or
DEXRON
-II
To fill P/S fluid reservoir
Parts lubrication when installing
SPECIAL TOOL
To Next Page
