Suzuki Grand Vitara 2005 Service Manual

YH4
GRAND
VITARA
4A2

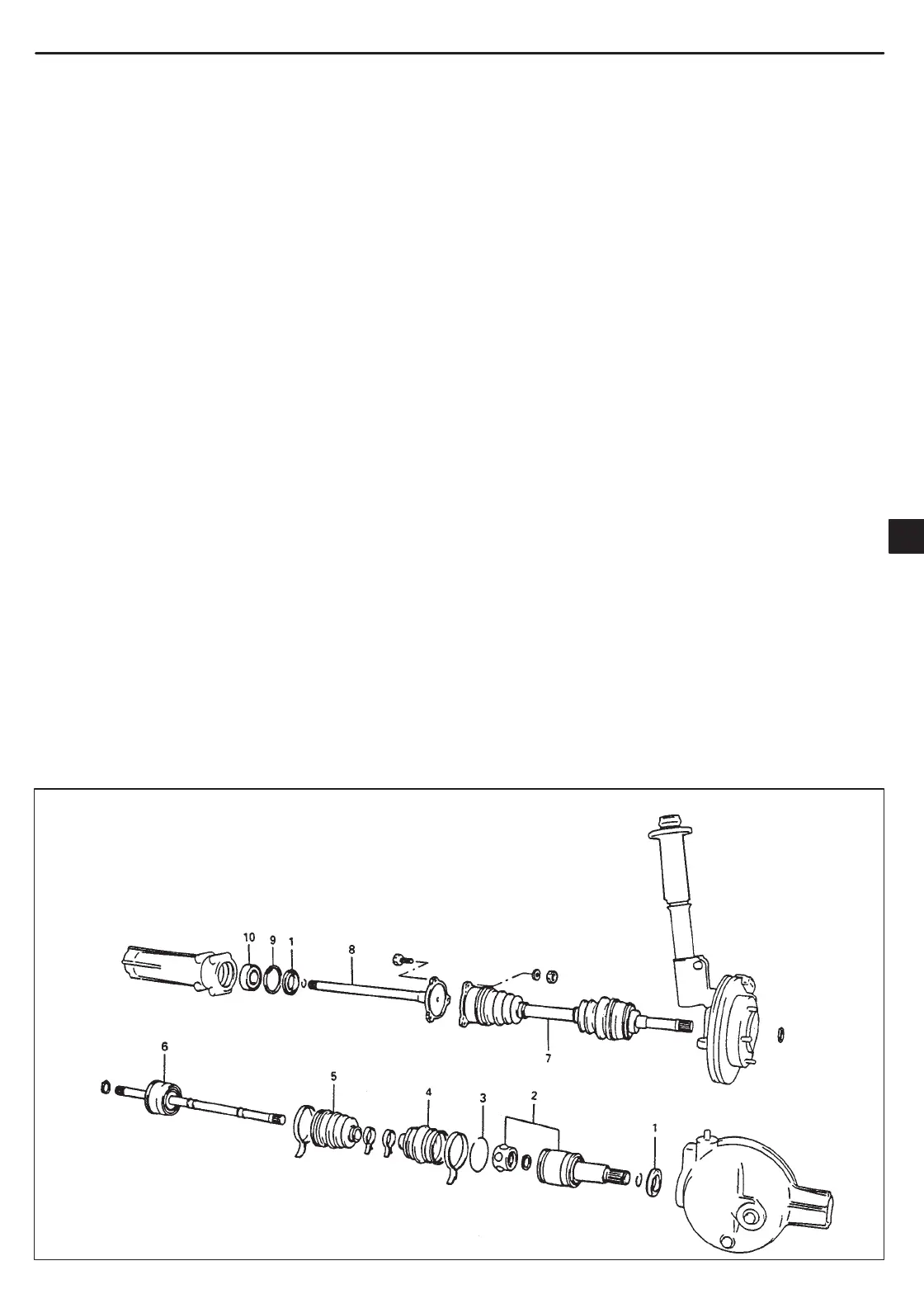

1. Drive shaft oil seal
2. Double off set joint (DOJ)
3. Joint circlip
4. DOJ boot
5. Ball joint boot
6. Ball joint assembly (RH side)
7. Drive shaft assembly (LH side)
8. Left drive shaft
9. Drive shaft bearing circlip
10. Drive shaft bearing
FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL 4A2-1
SECTION 4A2
FRONT DRIVE SHAFT/SHAFT BEARING,
OIL SEAL
CONTENTS
GENERAL DESCRIPTION 4A2- 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIAGNOSIS 4A2- 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis Table 4A2- 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Shaft Boot And Joint Check 4A2- 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 4A2- 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Shaft 4A2- 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shaft Bearing/Oil Seal 4A2- 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TIGHTENING TORQUE SPECIFICATIONS 4A2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REQUIRED SERVICE MATERIALS 4A2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIAL TOOLS 4A2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL DESCRIPTION
The drive shaft joint is a constant velocity joint (C.V. joint) which slides in the axial direction. The joint is composed
of an outer race, cage, inner race and balls. In the turning direction, the joint rotates in the same way as a ball bear-
ing. The balls lock rotation completely and transmit drive. In addition this vehicle is also characterized by a function
that the shaft can slide through the balls in the grooves of the outer race in the extension/contraction direction of
the drive shaft.
