YH4
GRAND
VITARA
AUTOMATIC TRANSMISSION (4 A/T) 7B1-3

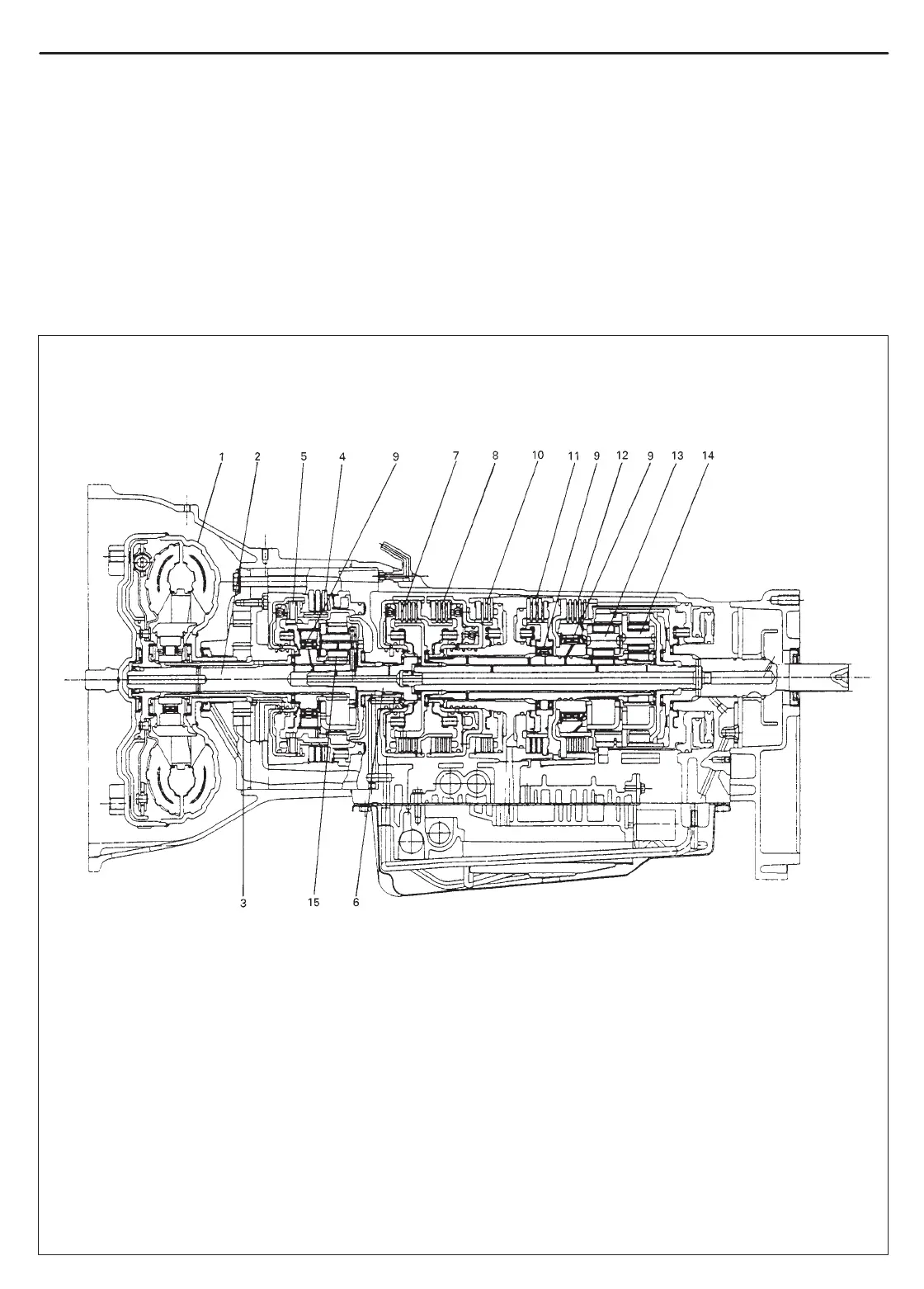

1. Torque converter
2. Overdrive input shaft
3. Oil pump
4. Overdrive brake
5. Overdrive clutch
6. Forward clutch input shaft
7. Forward clutch
8. Direct clutch
9. One-way clutch
10. Second coast brake
11. Second brake
12. Reverse brake
13. Front planetary gear
14. Rear planetary gear
15. Overdrive planetary gear
GENERAL DESCRIPTION
This automatic transmission is a full automatic type with 3-speed plus overdrive (O/D).
The torque converter is a 3-element, 1-step and 2-phase type and is equipped with an electronically controlled
lock-up mechanism. The gear shift device consists of 3 sets of planetary gear units, 3 disc type clutches, 4 disc
type brakes and 3 one-way clutches. The gear shift is done by selecting one of 6 positions (“P”, “R”, “N”, “D”, “2”
and “L”) by means of the select lever installed on the floor. On the shift knob, there is an overdrive (O/D) cut switch
which allows shift-up to the overdrive mode (except at 4L) and shift-down from the overdrive mode. Also, by using
the P/N change switch located on the console box, it is possible to select the gear change timing of 2 modes, nor-
mal and power.
