YH4
GRAND
VITARA
8C-10 INSTRUMENTATION/DRIVER INFORMATION
G16
J20
H25
1. ECT sensor
1
ENGINE COOLANT TEMP. (ECT) METER AND
SENSOR
ENGINE COOLANT TEMPERATURE (ECT) METER
INSPECTION
1) Disconnect Y/W lead wire going to ECT sensor.
2) Turn ignition switch ON, and check that ECT meter indicates
COOL.
3) Turn ignition switch OFF.

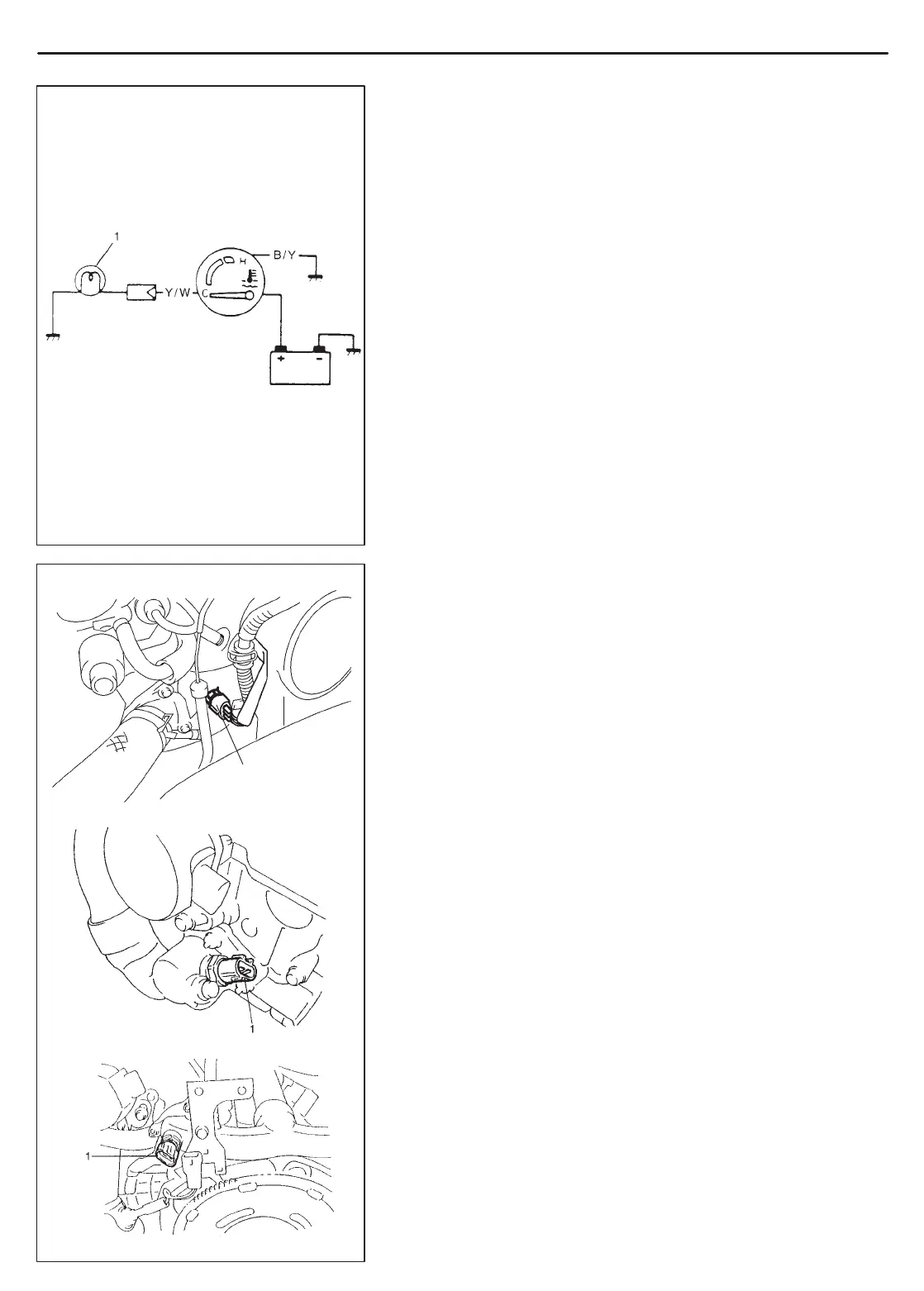

4) Ground Y/W lead wire through a 3.4 W test bulb (1) as illustrated.
5) Turn ignition switch ON, and check that bulb light up and pointer
(2) moves to hot side.
6) If ECT meter shows no operation, repair or replace defective
parts.
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
REMOVAL AND INSTALLATION
Refer to ECT SENSOR in ON-VEHICLE SERVICE in Section 6E1
(for G16 and J20) or Section 6E2 (for H25) of this manual for details.
