YH4
GRAND
VITARA
BODY SERVICE 9-21

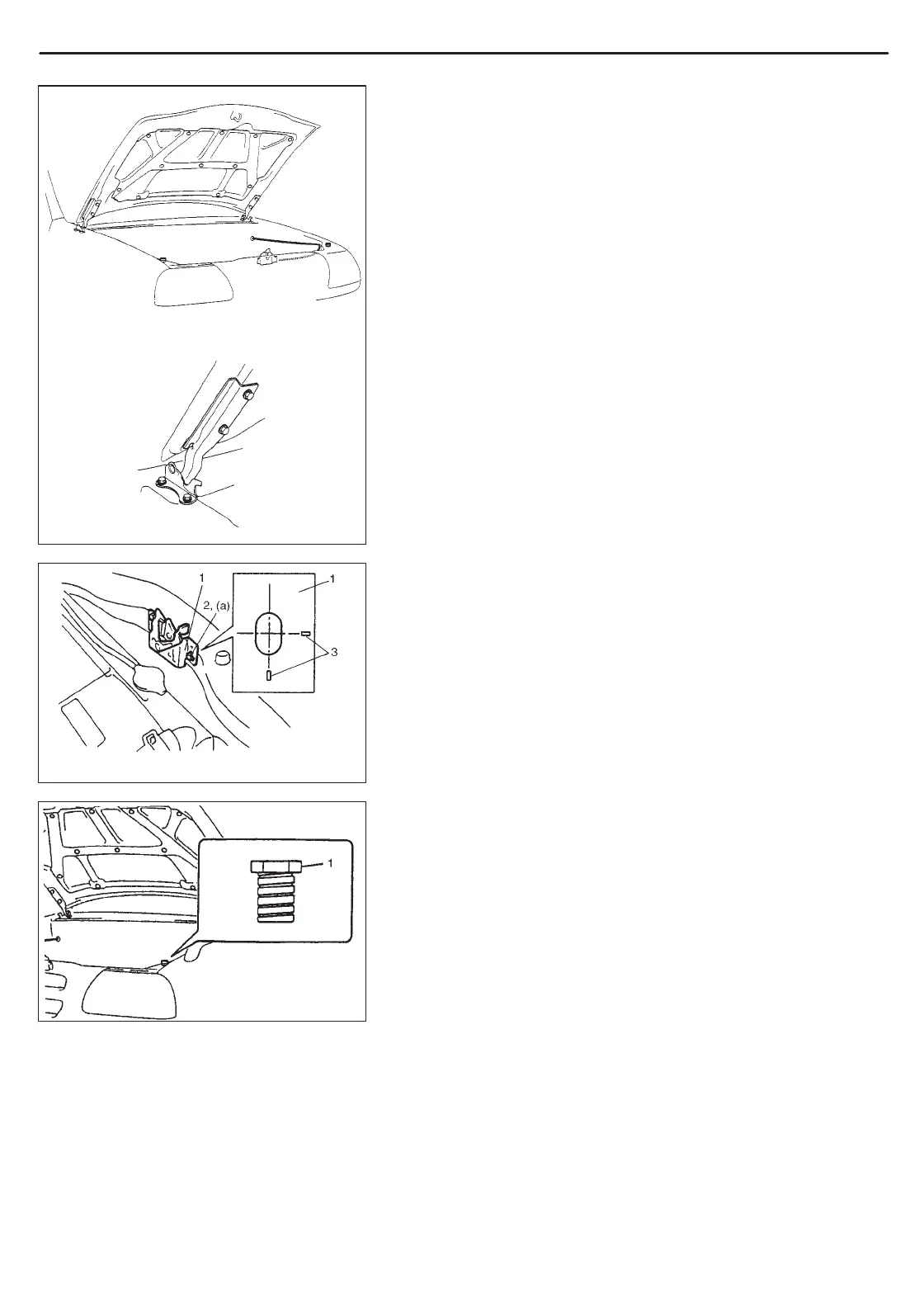

1. Hood lock
2. Hood lock bolts
3. Match marks
1. Hood cushion
HOOD
REMOVAL
1) Remove window washer hose from hood.
2) Remove four mounting bolts to detach hood.
ADJUSTMENT
Fore-and-aft and right-and-left adjustment.
Loosen four mounting bolts for adjustment.
Hood lock adjustment
When installing hood lock, bring bolt at intersection point of match
marks and move it in vertical direction for adjustment, if neces-
sary.
Tightening Torque
(a): 10 N
.
m (1.0 kg-m, 7.5 lb-ft)
Vertical adjustment
If only one side (right or left) of hood is not level with front fender,
make it level by tightening or loosening hood cushion.
INSTALLATION
Reverse removal procedure to install hood.
INSPECTION
Check that secondary latch operates properly (check that second-
ary latch keeps hood from opening all the way even when pulling
hood release handle inside vehicle.) Also check that hood opens
and closes smoothly and properly and hood locks securely when
closed.
If any malfunction is found, lubricate hinge and latch, or repair hood
lock system.
