YH4
GRAND
VITARA
1. Shim
1. Rubber cushion
1
9-62 BODY SERVICE

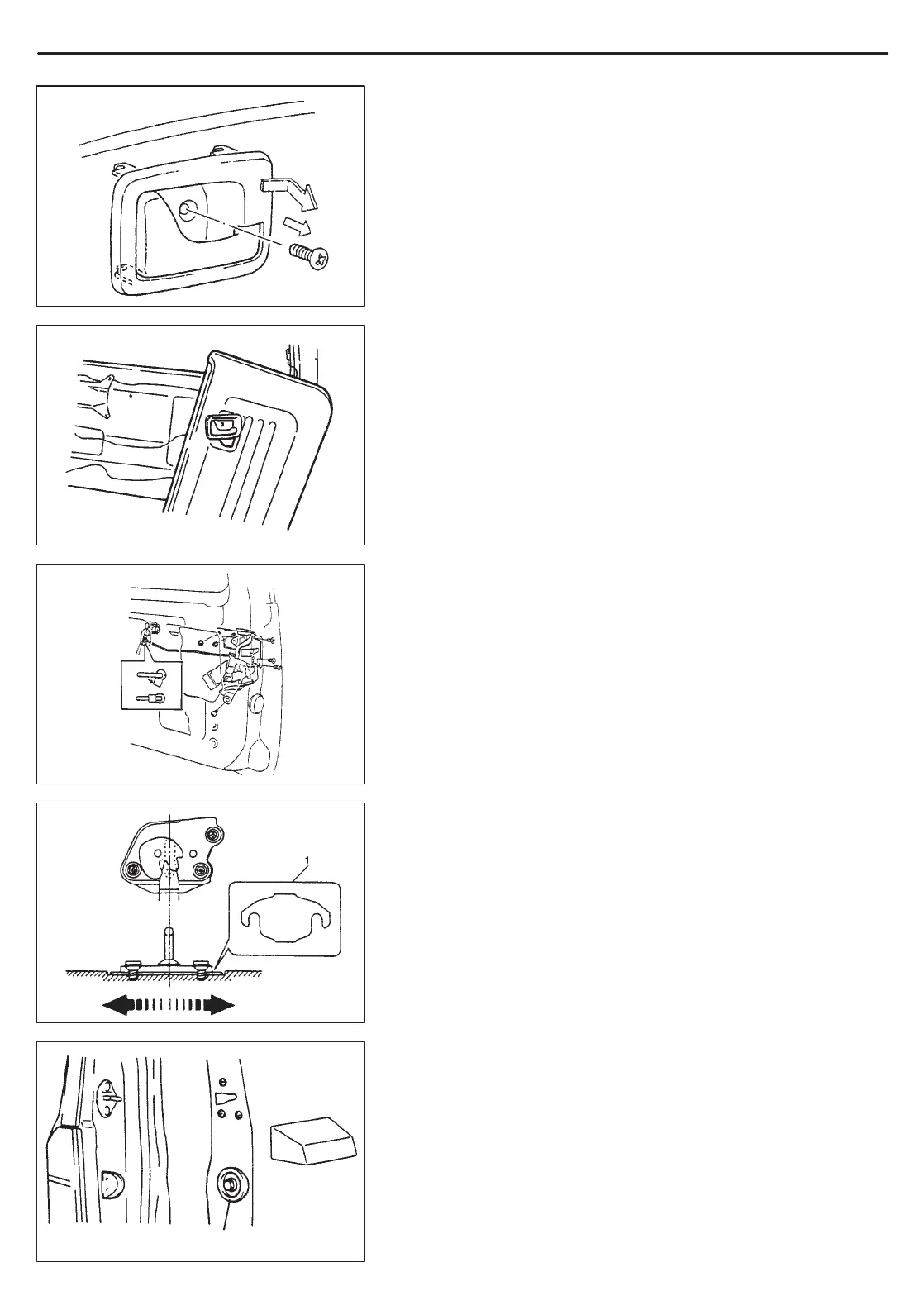

BACK DOOR/REAR GATE LOCK ASSEMBLY
REMOVAL
1) Remove inside handle bezel (if equipped).
2) Remove inside lock knob.
3) Remove door trim.
With inside handle bezel tilted as shown in figure, turn door trim
90_ counterclockwise to remove it (if equipped with inside han-
dle).
4) Remove back door/rear gate sealing cover.
5) Remove back door/rear gate lock control rod.
Unlock back door/rear gate lock rod pin retainer and disconnect
control rod.
6) Disconnect back door lock motor lead wire (if equipped).
7) Remove lock assembly.
INSTALLATION
Reverse removal procedure to install back door/rear gate lock as-
sembly noting following points.
D Back door/Rear gate latch striker.
Adjust back door/rear gate latch striker so that its center aligns
with the center of groove in back door/rear gate latch base.
To adjust back door/rear gate latch and striker with each other,
insert proper number of shims below the bottom of striker, as
shown.
D Back door/Rear gate rubber cushion.
Move rubber cushion installed at the left side of back door/rear
gate to align it with its guide.
To Next Page
