YH4
GRAND
VITARA

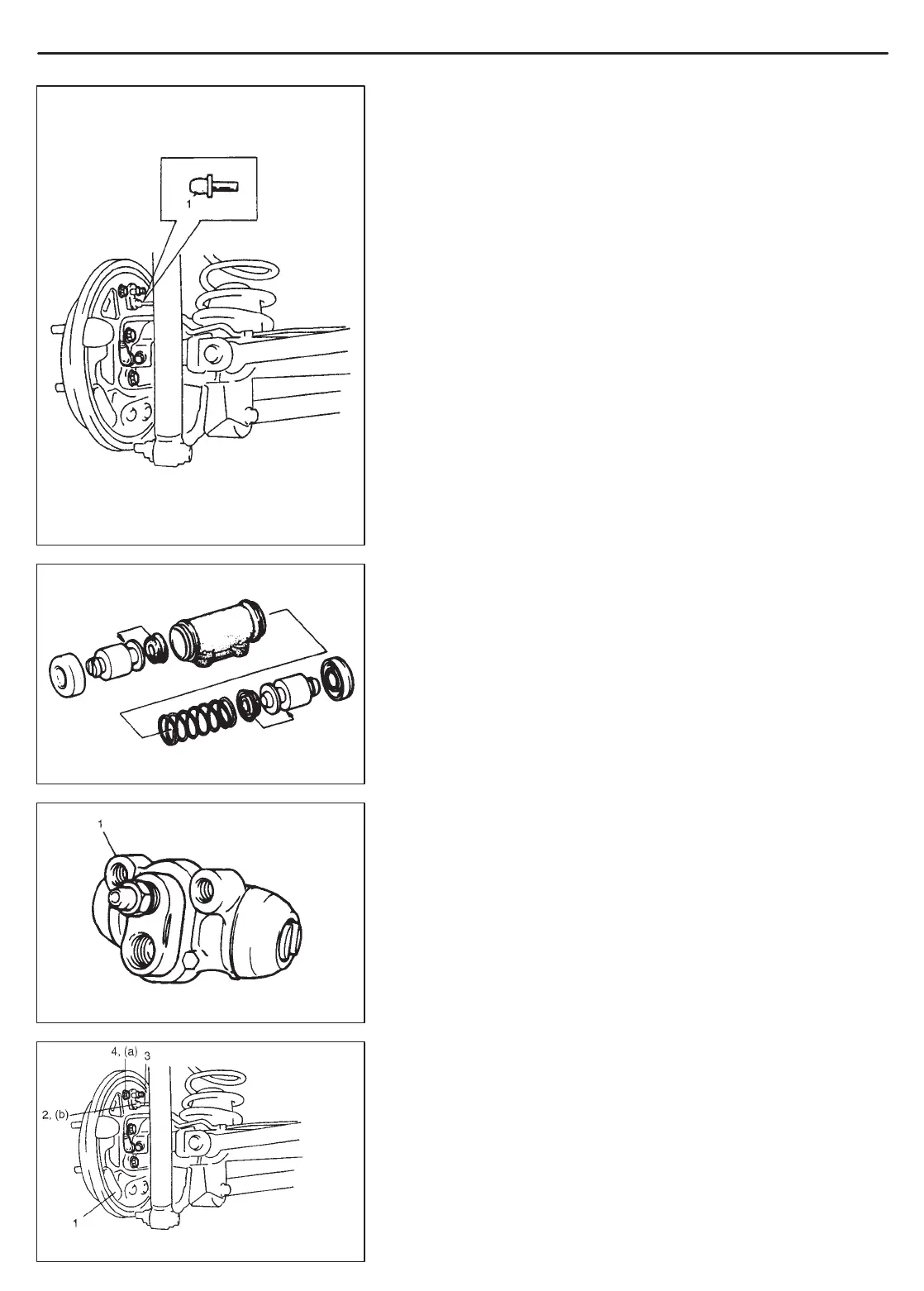

1. Wheel cylinder
1. Brake back plate
2. Brake pipe flare nut
3. Brake pipe
4. Wheel cylinder bolts
1. Bleeder plug cap
5C-12 PARKING AND REAR BRAKE
WHEEL CYLINDER
REMOVAL
1) Perform steps 1) to 5) of BRAKE DRUM REMOVAL.
2) Perform steps 2) to 4) of BRAKE SHOE REMOVAL.
3) Loosen brake pipe flare nut (or nuts) but only within the extent
that fluid does not leak.
4) Remove wheel cylinder mounting bolts. Disconnect brake pipe
(or pipes) from wheel cylinder and put wheel cylinder bleeder
plug cap onto pipe to prevent fluid from spilling.
INSPECTION
Inspect wheel cylinder disassembled parts for wear, cracks, corro-
sion or damage.
NOTE:
Clean wheel cylinder components with brake fluid.
INSTALLATION (For non sealed type)
1) Take off bleeder plug cap from brake pipe and connect pipe (or
pipes) to wheel cylinder just enough to prevent fluid from leak-
ing.
2) Tighten wheel cylinder to brake back plate to specified torque.
Tightening Torque
(a): 8.5 N
.
m (0.85 kg-m, 6.5 lb-ft)
3) Torque flare nut (or nuts) of brake pipe which was connected in
step 1) to specification.
Tightening Torque
(b): 16 N
.
m (1.6 kg-m, 12.0 lb-ft)
To Next Page
