YH4
GRAND
VITARA
BODY SERVICE 9-25

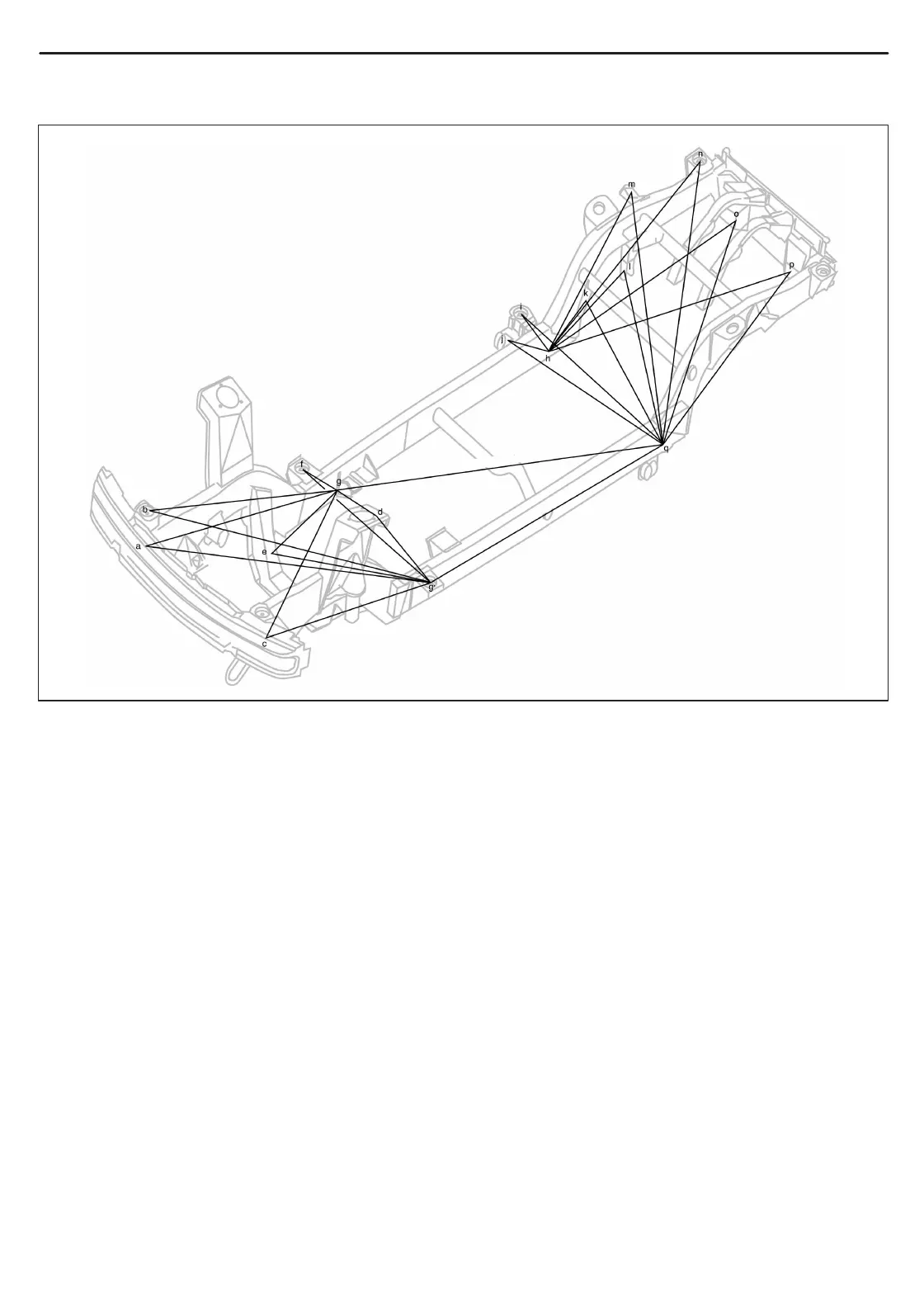

a. Front bumper
b. 1st mounting
c. Suspension frame
d. Front strut
e. Suspension arm
f. 2nd mounting
g. ø20 zig hole
h. Zig hole
i. 3rd mounting
j. Lower rod
k. Upper rod
l. Lateral rod
m. Rear shock absorber
n. 4th mounting
o. Fuel tank
p. Fuel tank
q. Lower rod
a – g : 1315 mm (51.77 in.)
a – g’ : 1534 mm (60.39 in.)
b – g : 1243 mm (48.94 in.)
b – g’ : 1518 mm (59.76 in.)
c – g : 1377 mm (54.21 in.)
c – g’ : 1105 mm (43.50 in.)
d – g’ : 1319 mm (51.93 in.)
d – f : 874 mm (34.41 in.)
e – g : 525 mm (20.67 in.)
e – g’ : 857 mm (33.74 in.)
f – g’ : 927 mm (36.50 in.)
h – i : 178 mm (7.01 in.)
h – j : 133 mm (5.24 in.)
h – k : 325 mm (12.80 in.)
h – l : 674 mm (26.54 in.)
h – m: 803 mm (31.61 in.)
h – n : 1161 mm (45.71 in.)
h – o : 1184 mm (46.61 in.)
h – p : 1190 mm (46.85 in.)
i – q : 999 mm (39.33 in.)
j – q : 997 mm (39.25 in.)
k – q : 824 mm (32.44 in.)
l – q : 1130 mm (44.49 in.)
m – q: 1258 mm (49.53 in.)
n – q : 1483 mm (58.39 in.)
o – q : 1349 mm (53.11 in.)
p – q : 1334 mm (52.52 in.)
For 4 door model
g’ – q : 1275 mm (50.20 in.)
g – q : 1534 mm (60.39 in.)
For 2 door model
g’ – q : 995 mm (39.17 in.)
g – q : 1310 mm (51.57 in.)
UNDER BODY DIMENSIONS
