YH4
GRAND
VITARA
5E1-40 ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL)

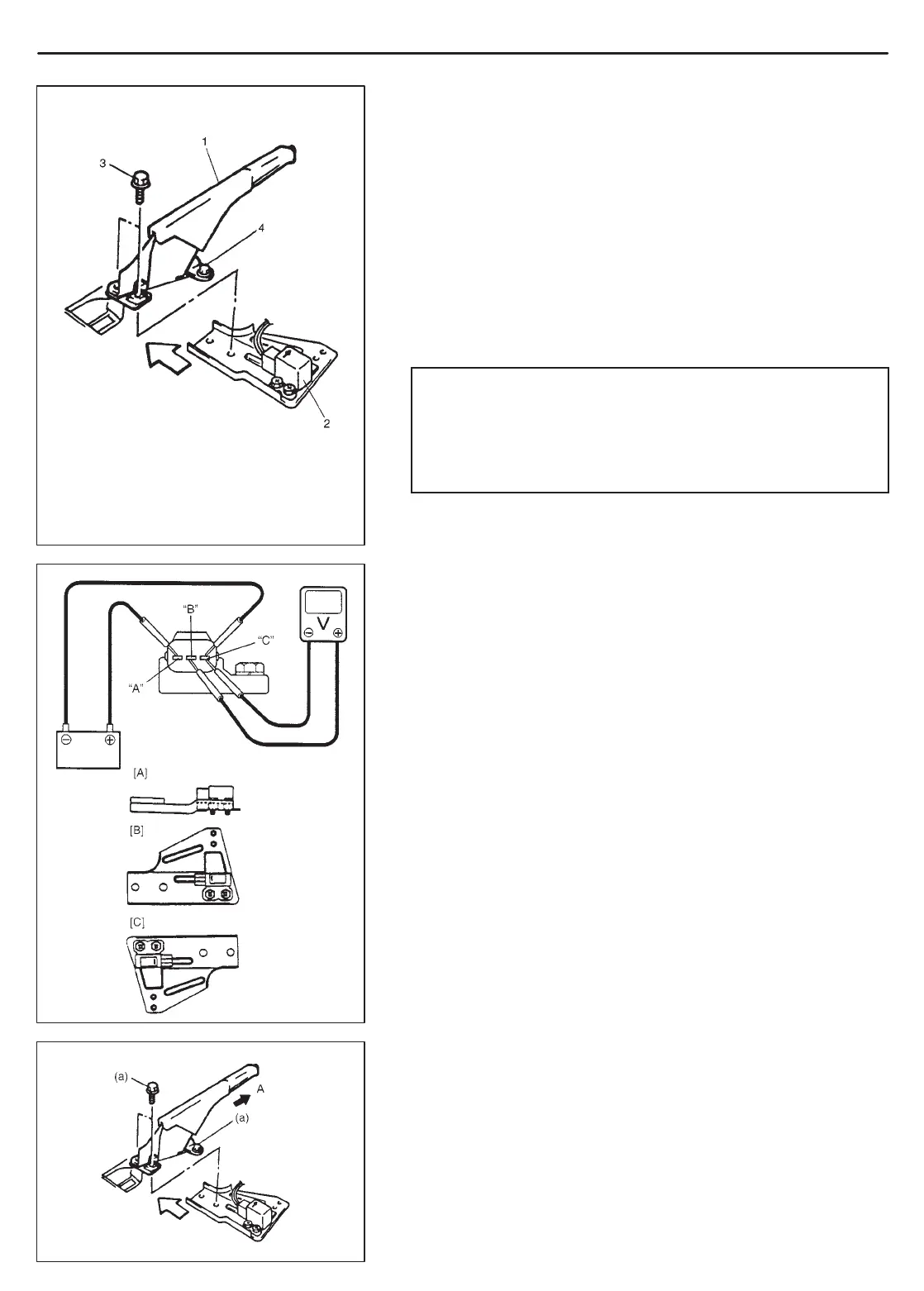

1. Parking brake
lever ass’y
2. G sensor
3. Bolt “1”
4. Bolt “2”
[A] Horizontal
[B] Upright with
arrow upward
[C] Upright with
arrow downward
A: Forward
G SENSOR (FOR 4WD MODEL ONLY)
REMOVAL
1) Turn ignition switch OFF and disconnect battery negative cable.
2) Remove rear center console box.
3) Remove parking brake lever bolts “1” and G sensor with bracket
from floor.
NOTE:
Loosen only bolt “2”.
4) Remove sensor with bracket from floor.
5) Disconnect connector from sensor.
CAUTION:
Do not separate sensor and bracket. It will lead to erro-
neous assembly.
Sensor must not be dropped or shocked. It will affect its
original performance.
INSPECTION
1) Check sensor bracket for bend.
2) Connect positive cable of 12 volt battery to “A” terminal of sensor
and ground cable to “C” terminal. Then using voltmeter, check
voltage between “B” terminal and “C” terminal.
When placed horizontally: 2 – 3 V
When placed upright with arrow upward: 3 – 4 V
When placed upright with arrow downward: 1 – 2 V
If measured voltage is not as specified, replace sensor with
bracket.
INSTALLATION
1) Connect connector to sensor securely.
2) Install sensor with bracket and parking lever assy onto floor so
that arrow mark directs vehicle forward.
Tightening Torque
(a): 23 N
.
m (2.3 kg-m, 17.0 lb-ft)
3) Install rear console box.
