YH4
GRAND
VITARA

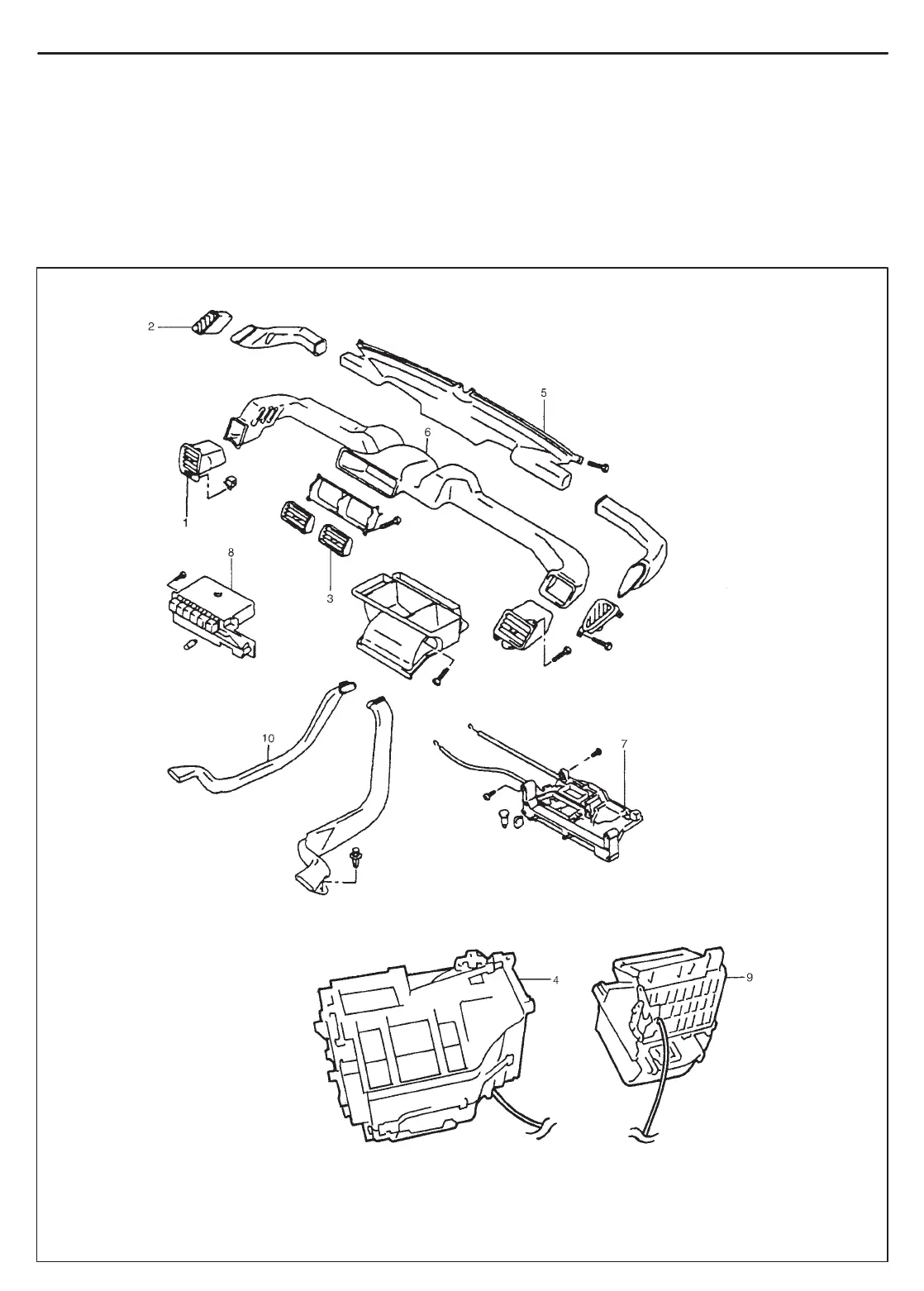

1. Side ventilator outlet
2. Side defroster outlet
3. Center ventilator outlet
4. Heater unit
5. Defroster duct
6. Ventilator duct
7. Heater control lever assembly
8. Heater mode control switch
9. Blower unit
10. Rear duct
1A-2 HEATER AND VENTILATION
GENERAL DESCRIPTION
The heater, an in and out air selectable-type hot water heater, is so constructed that it is possible to assure an
agreeable ventilation at all times by providing the ventilator air outlets at the center and both sides (right and left)
of the instrument panel, the hot air outlet at a place close to the feet of front passengers, and the defroster air outlets
at places, right and left, along the windshield glass.
The heater and ventilation consist of following parts.
