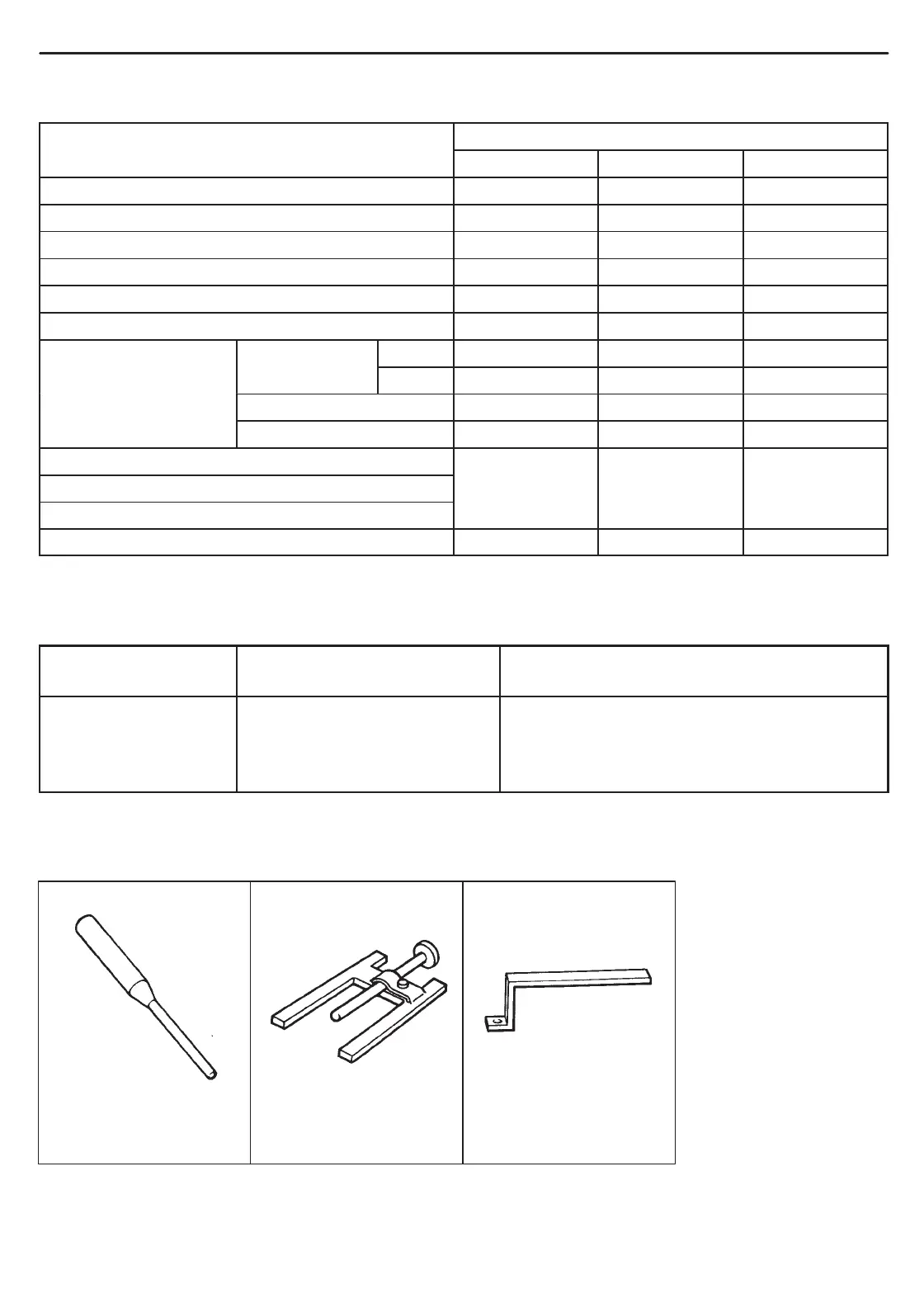

BRAKES PIPE/HOSE/MASTER CYLINDER 5A-19
09922-85811
Connector pin remover
09950-96010
Booster piston rod gauge
09952-16010
Booster piston rod adjuster
TIGHTENING TORQUE SPECIFICATIONS
Fastening
p
arts
Tightening torque
Fastening
arts
N
.
m kg-m lb-ft
Brake flexible hose bolt (Brake caliper/2 (4) way joint)
23 2.3 17.0
Master cylinder attaching nut
13 1.3 9.5
Booster nut
13 1.3 9.5
Clevis nut
25 2.5 18
2-way (or 4-way) joint mounting bolt
10 1.0 7.5
Brake pipe flare nut
16 1.6 11.5
Front cali
p
er
M8
8.0 0.8 6.0
Brake bleeder
p
lug
Front
cali er
M10
8.5 0.85 6.5
Brake
bleeder
lug
Wheel cylinder
7.5 0.75 5.5
LSPV
8.0 0.8 6.0
LSPV mounting bolt
LSPV stay bolt
23 2.3 17.0
LSPV spring nut
Wheel nut
100 10.0 72.5
REQUIRED SERVICE MATERIAL
MATERIALS
RECOMMENDED
SUZUKI PRODUCT
USE
Brake fluid
Indicated on reservoir
cap or described in owner’s
manual of vehicle
 To fill master cylinder reservoir.
 To clean and apply to inner parts of master
cylinder caliper and wheel cylinder when
they are disassembled.
SPECIAL TOOLS
