YH4

GRAND

VITARA

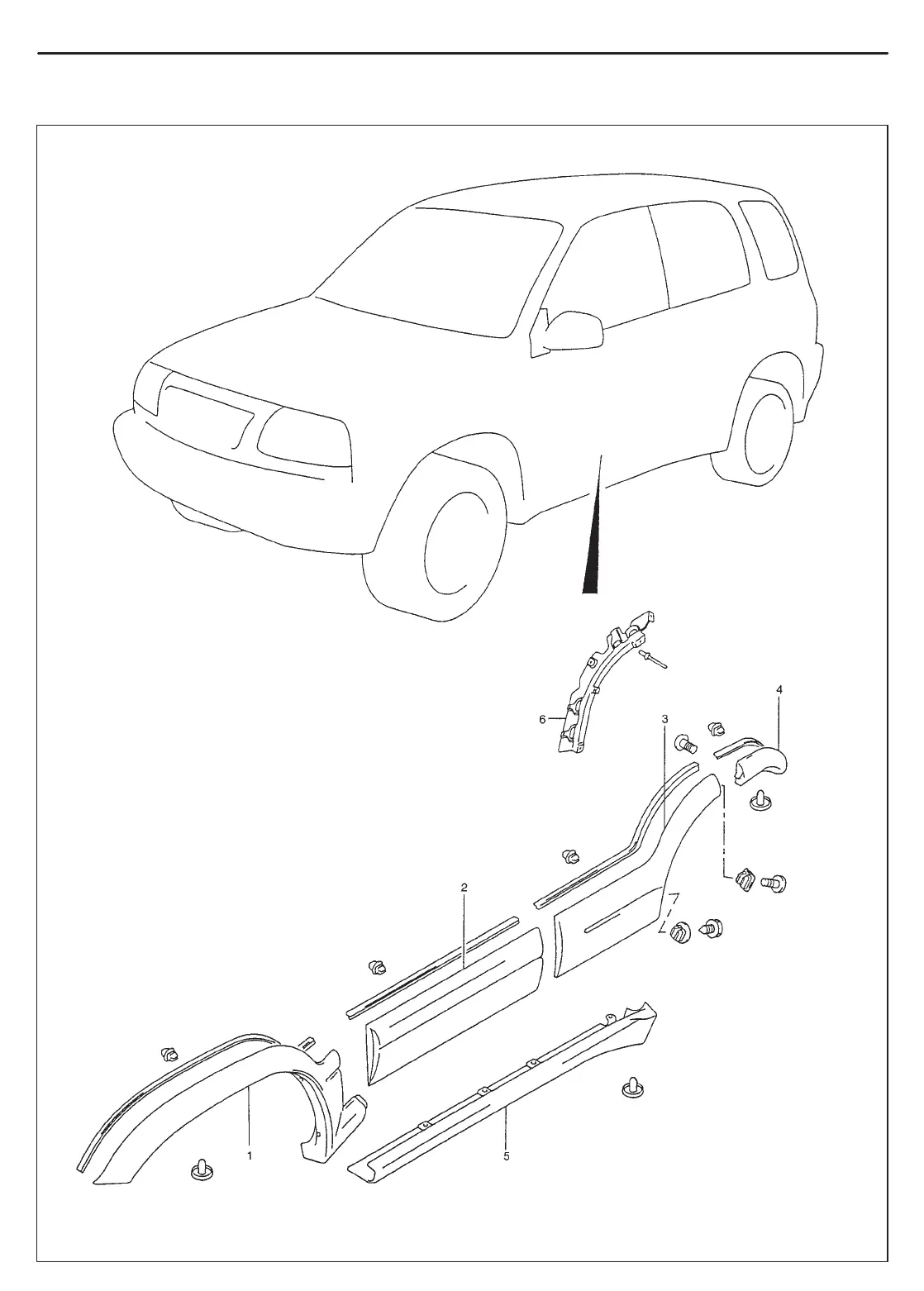

9-78 BODY SERVICE

1. Fender splash guard

2. Front door splash guard

3. Rear door splash guard

4. Rear splash guard

5. Side sill splash guard

6. Rear door guard holder

SPLASH GUARD (IF EQUIPPED)
