YH4

GRAND

VITARA

BODY SERVICE 9-61

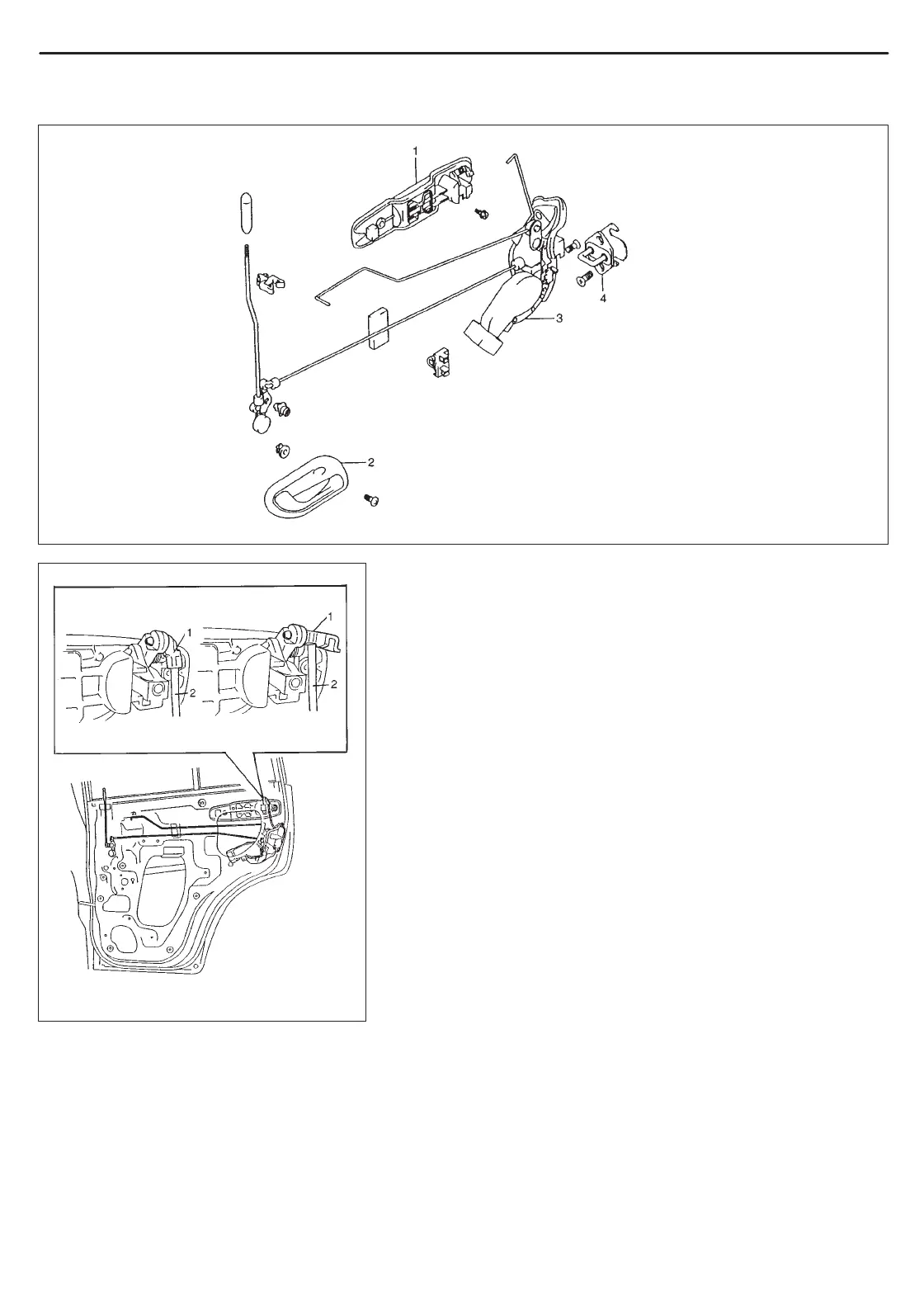

1. Outside handle

2. Inside handle bezel

3. Latch assembly

4. Latch striker

1. Door opening rod pin

2. Door opening control rod

REAR DOOR LOCK ASSEMBLY

REMOVAL

1) Remove door trim and door sealing cover, refer to steps 1) to 4)

of REAR DOOR GLASS REMOVAL in this section.

2) Remove door opening control rod and door lock control rod.

3) Remove lock assembly.

INSTALLATION

Reverse removal sequence to install rear door lock, noting points

mentioned in “FRONT DOOR LOCK ASSEMBLY”.
