YH4
GRAND
VITARA

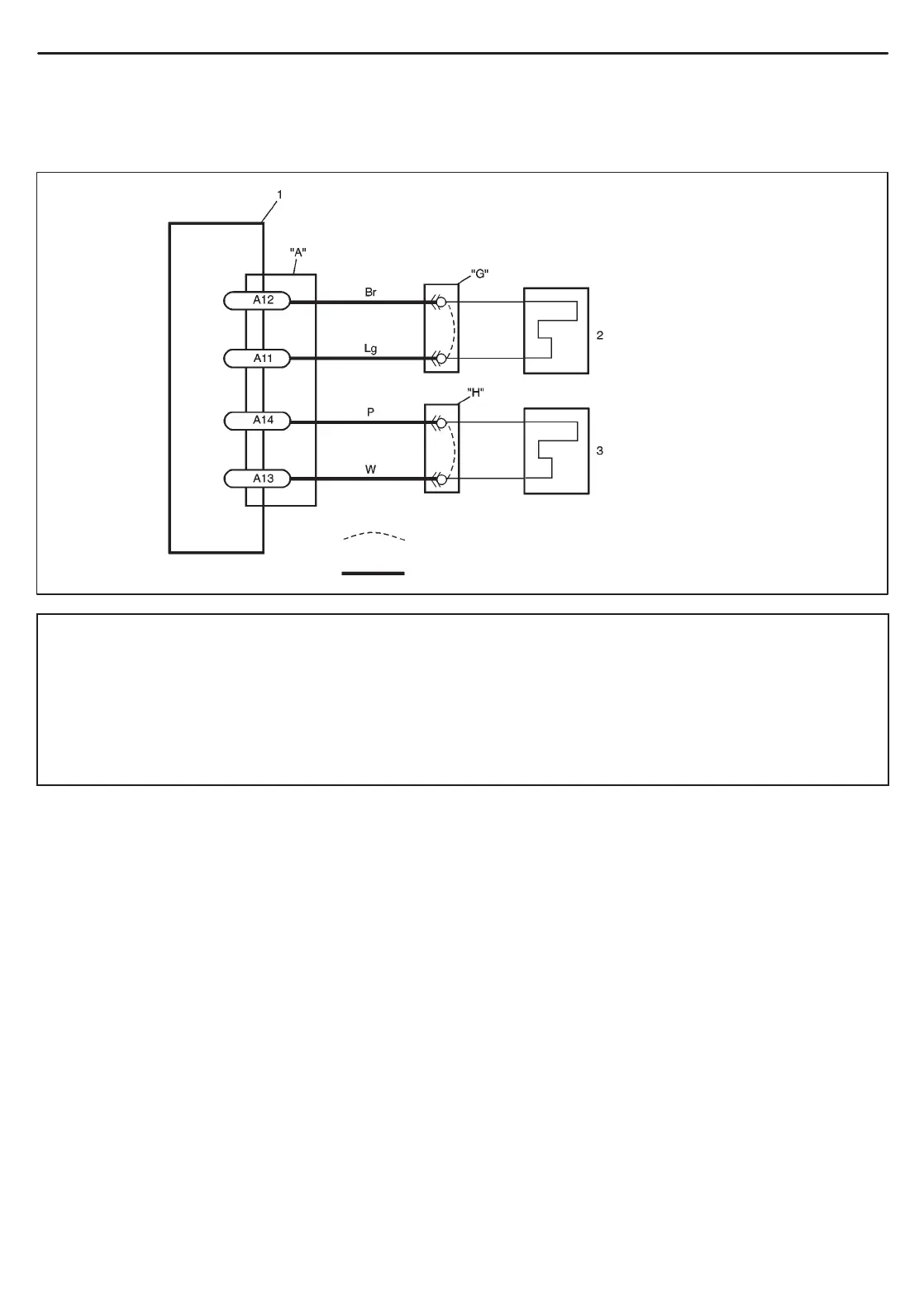

1. SDM
2. Passenger seat belt pretensioner
3. Driver seat belt pretensioner
: Shorting bar
: Air bag harness
10B-44 AIR BAG SYSTEM
CODE 41 – DRIVER PRETENSIONER INITIATOR CIRCUIT RESISTANCE HIGH
CODE 45 – PASSENGER PRETENSIONER INITIATOR CIRCUIT RESISTANCE HIGH
(Page 1 of 2)
CAUTION:
When measurements are requested in this chart use specified digital multimeter with correct terminal
adapter from special tool (Connector test adapter kit).
When a check for proper connection is requested refer to “Intermittent and Poor Connections” in this
section.
When an open in air bag wire harness, damaged wire harness, connector or terminal is found, replace
wire harness, connectors and terminals as an assembly.
DTC WILL SET WHEN:
The resistance of driver or passenger seat belt pretensioner initiator circuit is above a specified value for specified
time.
