YH4
GRAND
VITARA
WASHER
ON
INT
LO
HI
Type A
Type B
Type C
WINDOWS, MIRRORS, SECURITY AND LOCKS 8D-9
Wiper
SW
Terminal
Wiper SW
Terminal
ON-VEHICLE SERVICE
WINDSHIELD WIPER AND WASHER
FRONT WIPER AND WASHER
INSPECTION

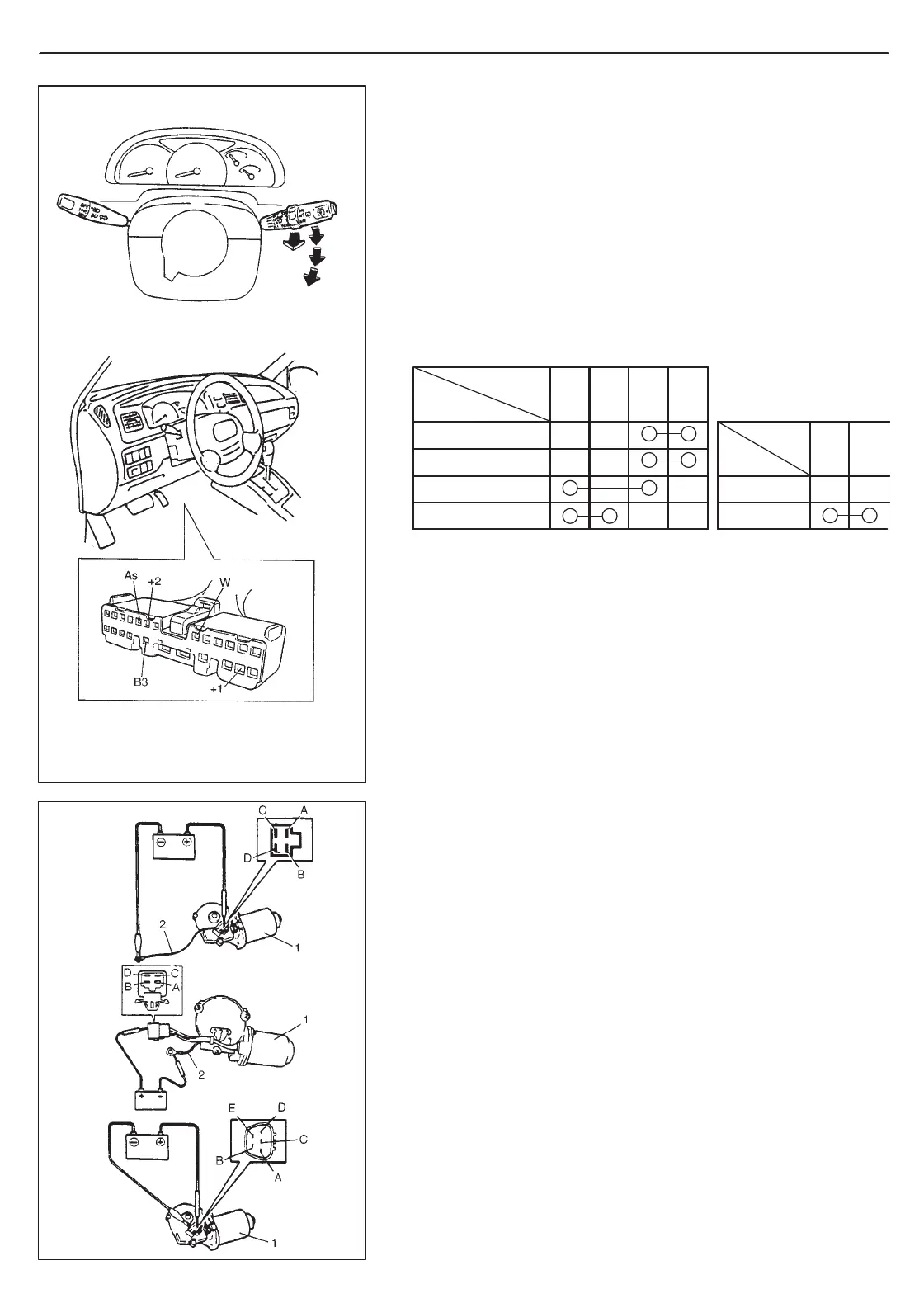

Front Wiper and Washer Switch (in Combination Switch)
1) Disconnect negative cable at battery.
2) Disconnect combination switch lead wire coupler.
3) Check for continuity between terminals at each switch position
as shown below. If check result is not as specified, replace
switch.
OFF
INT
LO OFF
HI ON
REMOVAL AND INSTALLATION
For vehicle without air bag system, refer to Section 3C COMBINA-
TION SWITCH, and for vehicle with air bag system, refer to Section
3C1 CONTACT COIL AND COMBINATION SWITCH ASSEMBLY.
Wiper Motor
1) As illustrated, use a 12 V battery to connect its (+) terminal to ter-
minal “A”, and its (–) terminal to Black lead wire (2) (Type A, B)
or terminal “E” (Type C).
If motor (1) rotates at a low revolution speed of 45 to 55 rpm, it
is proper. For high speed check, connect battery (+) terminal to
terminal “B”, and its (–) terminal to Black lead wire (2) (Type A,
B) or terminal “E” (Type C). If motor rotates at a high revolution
speed of 67 to 83 rpm, it is proper.
To Next Page
