YH4
GRAND
VITARA
7A
MANUAL TRANSMISSION (TYPE 1) 7A-1
TYPE 1
GENERAL DESCRIPTION 7A- 1. . . . . . . . . . . . . .
DIAGNOSIS 7A- 2. . . . . . . . . . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 7A- 3. . . . . . . . . . . . . . . .
Gear Oil 7A- 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shift Control Levers 7A- 4. . . . . . . . . . . . . . . . . . .
Switches 7A- 6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Rear Mounting 7A- 8. . . . . . . . . . . . . . . .
Dismounting of Trans. Unit 7A- 9. . . . . . . . . . . . .
Remounting of Trans. Unit 7A-12. . . . . . . . . . . . .
Extension Case (2WD MODEL) 7A-13. . . . . . . .
Extension Case Oil Seal
(2WD MODEL) 7A-13. . . . . . . . . . . . . . . . . . . . . .
UNIT REPAIR 7A-14. . . . . . . . . . . . . . . . . . . . . . . . .
TIGHTENING TORQUE
SPECIFICATIONS 7A-14. . . . . . . . . . . . . . . . . . . .
REQUIRED SERVICE MATERIALS 7A-14. . . . . .
SPECIAL TOOL 7A-14. . . . . . . . . . . . . . . . . . . . . . .
As the aluminum case is sealed with liquid type gas-
ket, it is necessary to use genuine sealant or its equiv-
alent on its mating surfaces when reassembling it.
Also, the case fastening bolts must be tightened to
specified torque by means of the torque wrench and
tightening over or below the specified torque should
be avoided.
The description under ON-VEHICLE SERVICE in this
section covers a part of the TYPE 2 manual transmis-
sion and the transfer. The transfer is next to the trans-
mission as well, but their gear boxes are independent
and each of them has its own drain and level/filler
plugs for the oil change or the level check.
For the repair procedure of the transfer unit, refer to
Section 7D.
SECTION 7A
MANUAL TRANSMISSION
(TYPE 1)
CONTENTS

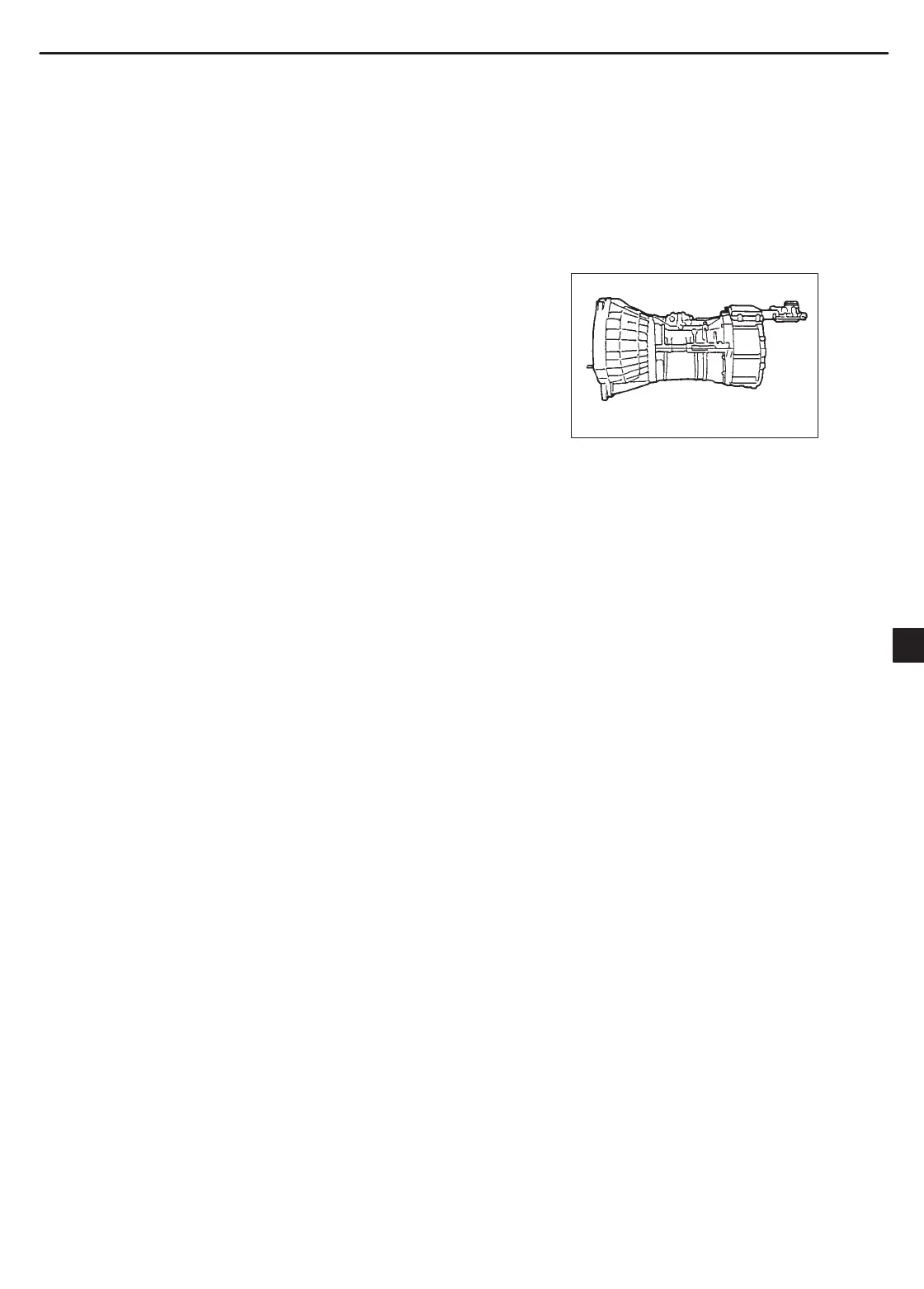

GENERAL DESCRIPTION
The manual transmission consists of the input shaft,
main shaft, countershaft and reverse gear which are
installed in the aluminum case. Its gears are of for-
ward five speeds in synchro mesh and reverse one
speed in constant mesh system.
The main shaft gears are held by the needle bearings
and on them the synchronizer rings and synchronizer
sleeve & hubs are assembled.
The gear shift lever case is located at the upper be-
hind the transmission case and has a cam which pre-
vents direct gear shift from the 5th speed gear to the
reverse gear.
To Next Page
