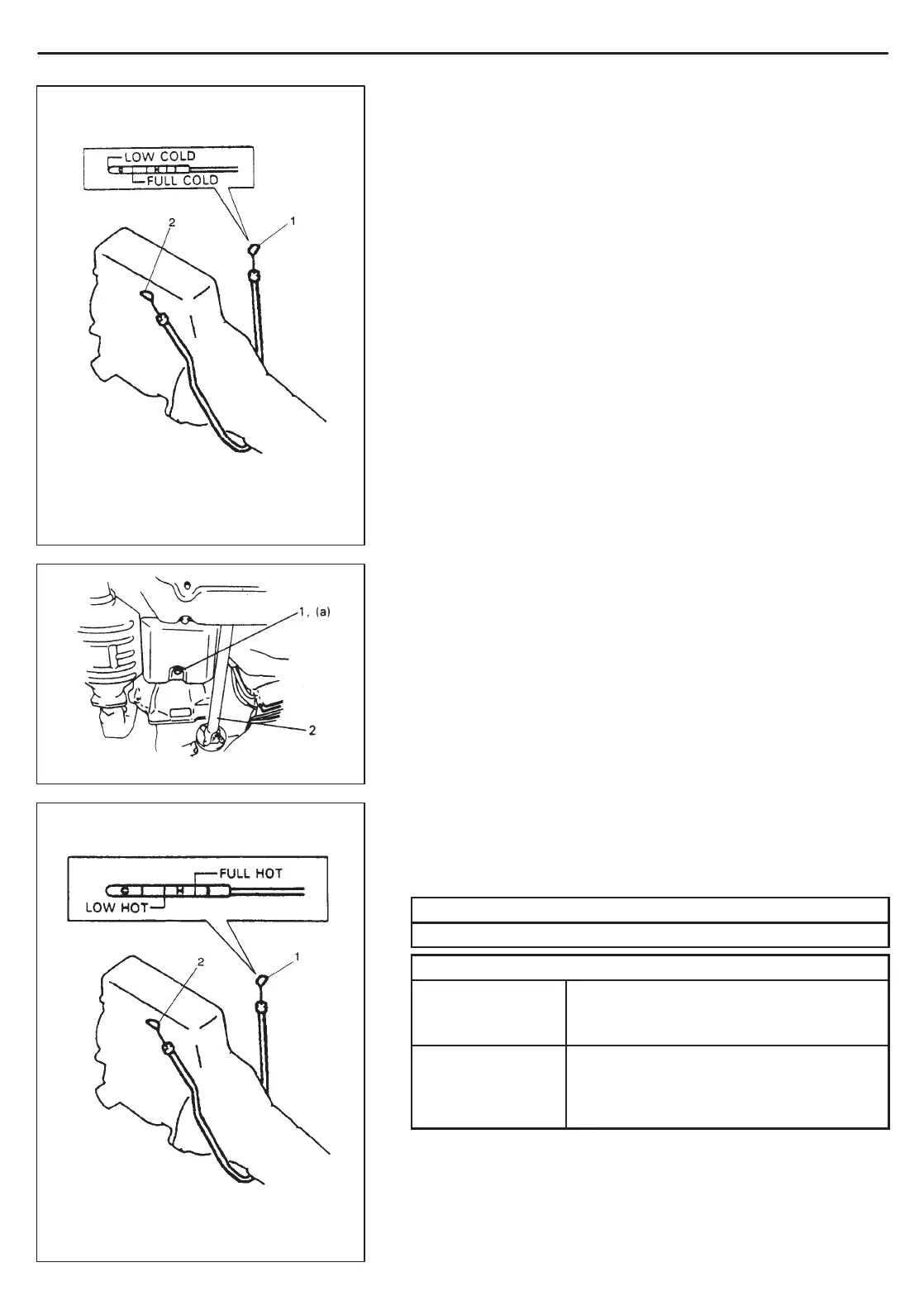

1. Dipstick (G16/J20)
2. Dipstick (H25)
1. Drain plug
2. Propeller shaft
1. Dipstick (G16/J20)
2. Dipstick (H25)
7B1-60 AUTOMATIC TRANSMISSION (4 A/T)
LEVEL CHECK AT ROOM TEMPERATURE
The fluid level check at room temperature performed after repair or
fluid change before test driving is just preparation for level check of
normal operating temperature. The checking procedure itself is the
same as that described previously. If the fluid level is between FULL
COLD and LOW COLD, proceed to test drive. And when the fluid
temperature has reached the normal operating temperature, check
fluid level again and adjust it as necessary.
FLUID CHANGE
1) Lift up vehicle.
2) With engine is cool, remove drain plug from oil pan and drain A/T
fluid.
3) Install drain plug.
Tightening Torque
(a): 23 N
.
m (2.3 kg-m, 17.0 lb-ft)
4) Lower vehicle and fill proper amount of an equivalent of DEX-
RONr-III.
5) Check fluid level according to procedure described under LEV-
EL CHECK NORMAL OPERATING TEMPERATURE.
Fluid specification
An equivalent of DEXRONr-III
Fluid capacity
When draining
from drain plug
hole
2.5 liters (5.28/4.40 US/lmp.pt.)
When
overhauling
6.9 liters (14.58/12.14 US/lmp.pt.)
for G16
7.1 liters (15.00/12.50 US/lmp.pt.)
for J20/H25
