YH4

GRAND

VITARA

HEATER AND VENTILATION 1A-19

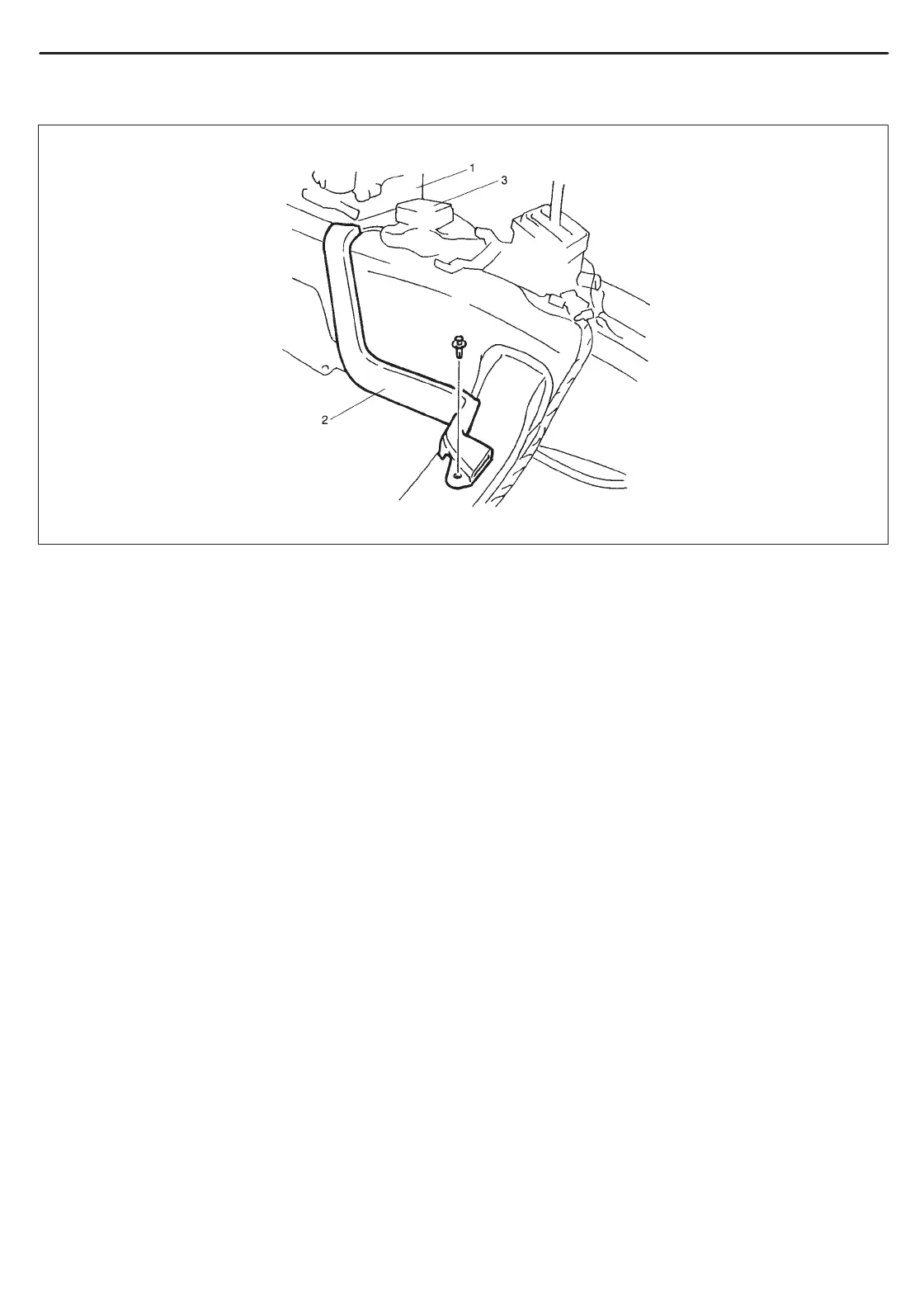

1. Heater unit

2. Rear duct

3. SDM

REAR DUCT

REMOVAL

1) Disconnect negative (–) cable at battery.

2) Remove front seat.

3) Remove console box.

4) Take off carpet till rear duct is totally exposed.

5) Remove rear duct.

INSTALLATION

Reverse removal sequence to install rear duct.
