YH4

GRAND

VITARA

FRONT SUSPENSION 3D-25

09923-74510

Bearing remover

09930-30102

Sliding shaft

09924-74510

Bearing installer handle

09941-66010

Bump stopper wrench

09942-15510

Sliding hammer

09943-35512

Brake drum remover

09944-68210

Bearing & oil seal installer

09944-66010

Wheel hub/knuckle oil

seal installer

09951-16050

Wheel bearing tightening tool

09951-46020

Control arm remover support

09951-16060

Control arm bush remover

(front)

09913-80112

Bearing installer

09925-58210

Oil seal installer

09913-85210

Oil seal installer

09952-86510

Front sensor rotor installer

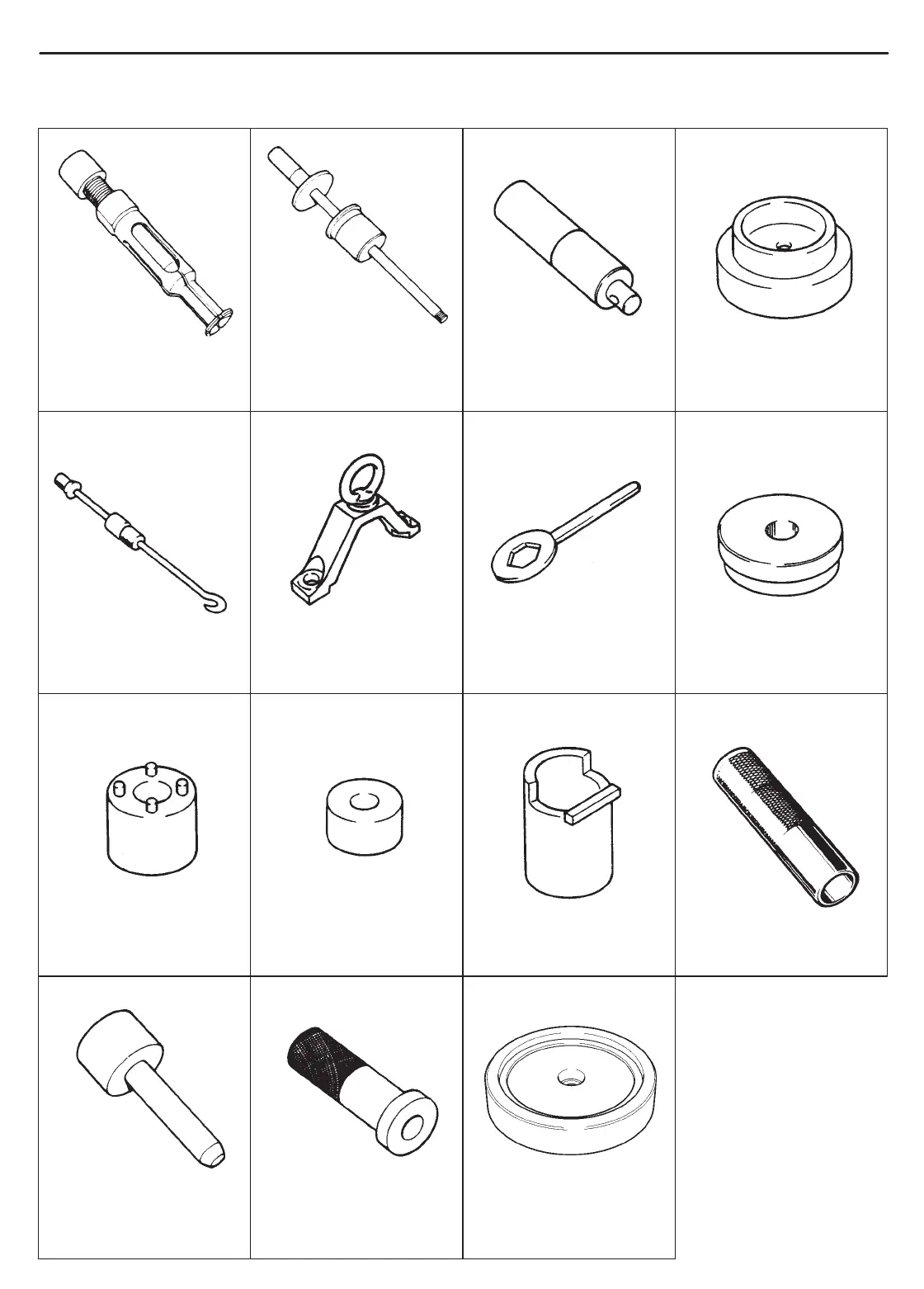

SPECIAL TOOLS
