YH4
GRAND
VITARA
“A”: Drill hole with approximately
3 mm (0.12 in.) diameter.
REAR SUSPENSION 3E-3
DIAGNOSIS
DIAGNOSIS TABLE
Refer to SECTION 3.

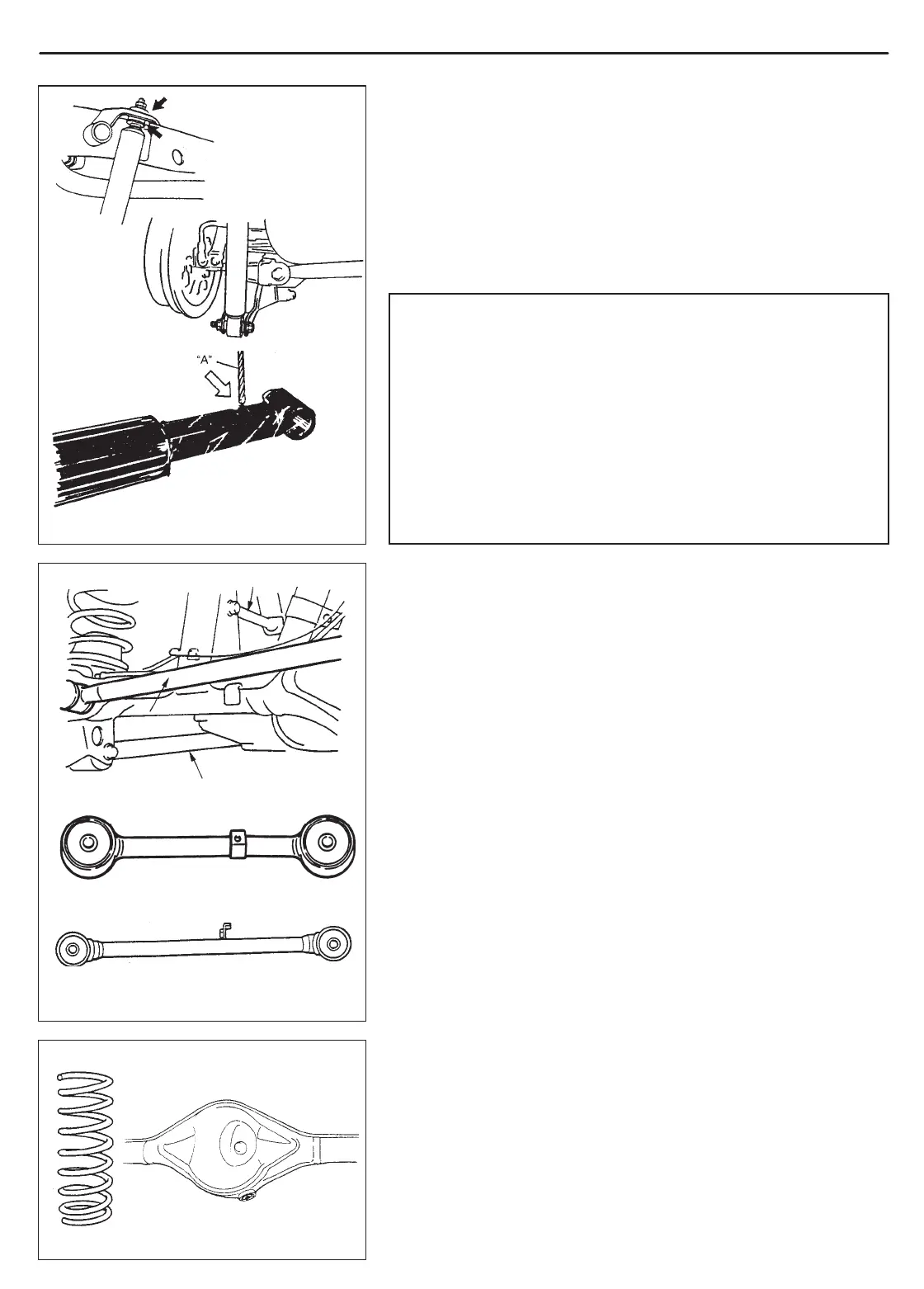

SHOCK ABSORBER CHECK
Inspect for deformation or damage.
Inspect bushings for wear or damage.
Inspect for evidence of oil leakage.
Replace any defective part.
WARNING:
When handling rear shock absorber in which high-pressure
gas is sealed, make sure to observe the following precau-
tions.
1) Don’t disassemble it.
2) Don’t put it into the fire.
3) Don’t store it where it gets hot.
4) Before disposing it, be sure to drill a hole in it where
shown by an arrow in the figure and let gas and oil out.
Lay it down sideways for this work.
5) The gas itself is harmless but it may issue out of the hole
together with chips generated by the drill. Therefore, be
sure to wear goggle.
LOWER ROD, UPPER ROD, LATERAL ROD
CHECK
Inspect for cracks, deformation or damage.
Replace any defective part.
Inspect each bush for wear and breakage. If found defective, re-
place.
AXLE HOUSING AND COIL SPRING CHECK
Inspect for cracks, deformation or damage.
Inspect for evidence of oil leakage at axle housing.
If any, replace defective part.
