YH4
GRAND
VITARA
AIR CONDITIONING (OPTIONAL) 1B-59
PUSH
3. Cylinder
4. Case
5. O-ring
2. Bearing puller

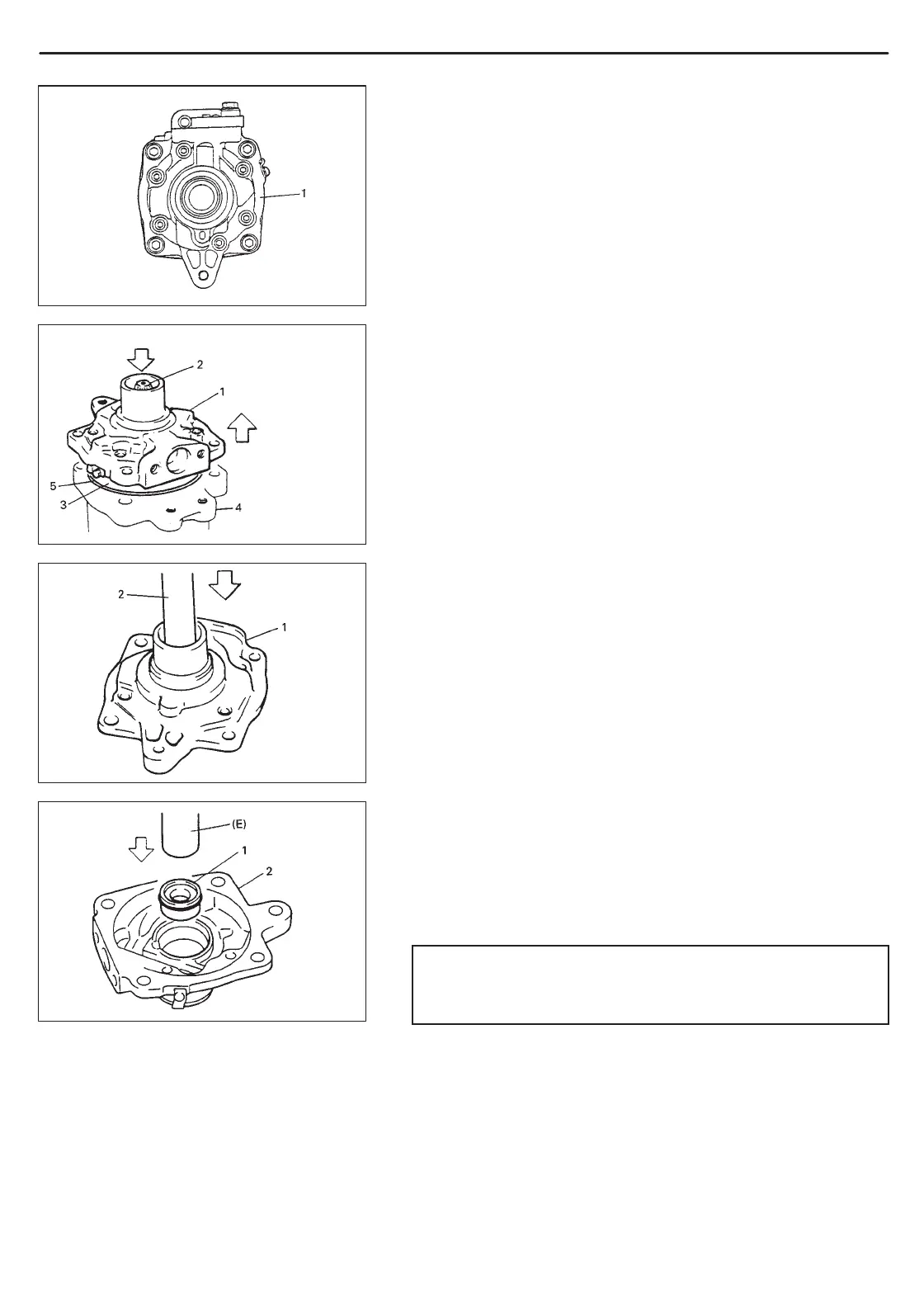

LIP TYPE SEAL (FOR SEIKO SEIKI)
REMOVAL
1) Remove magnet clutch assembly, referring to “MAGNET
CLUTCH ASSEMBLY” in this section.
2) Remove compressor front head (1) mounting bolt (10 pcs.).
3) Remove compressor front head (1) by pushing cylinder shaft
(2).
NOTE:
Be careful not to remove cylinder from case.
4) Remove O-ring.
5) Remove lip seal from compressor front head (1).
INSTALLATION
1) Press-fit lip seal (1) into compressor front head (2) using special
tool (E).
Special Tool
(E): 09991-06050
CAUTION:
Do not reuse mechanical seal once removed from com-
pressor.
To Next Page
