YH4
GRAND
VITARA
ANTILOCK BRAKE SYSTEM (ABS) (OPTIONAL) 5E1-13

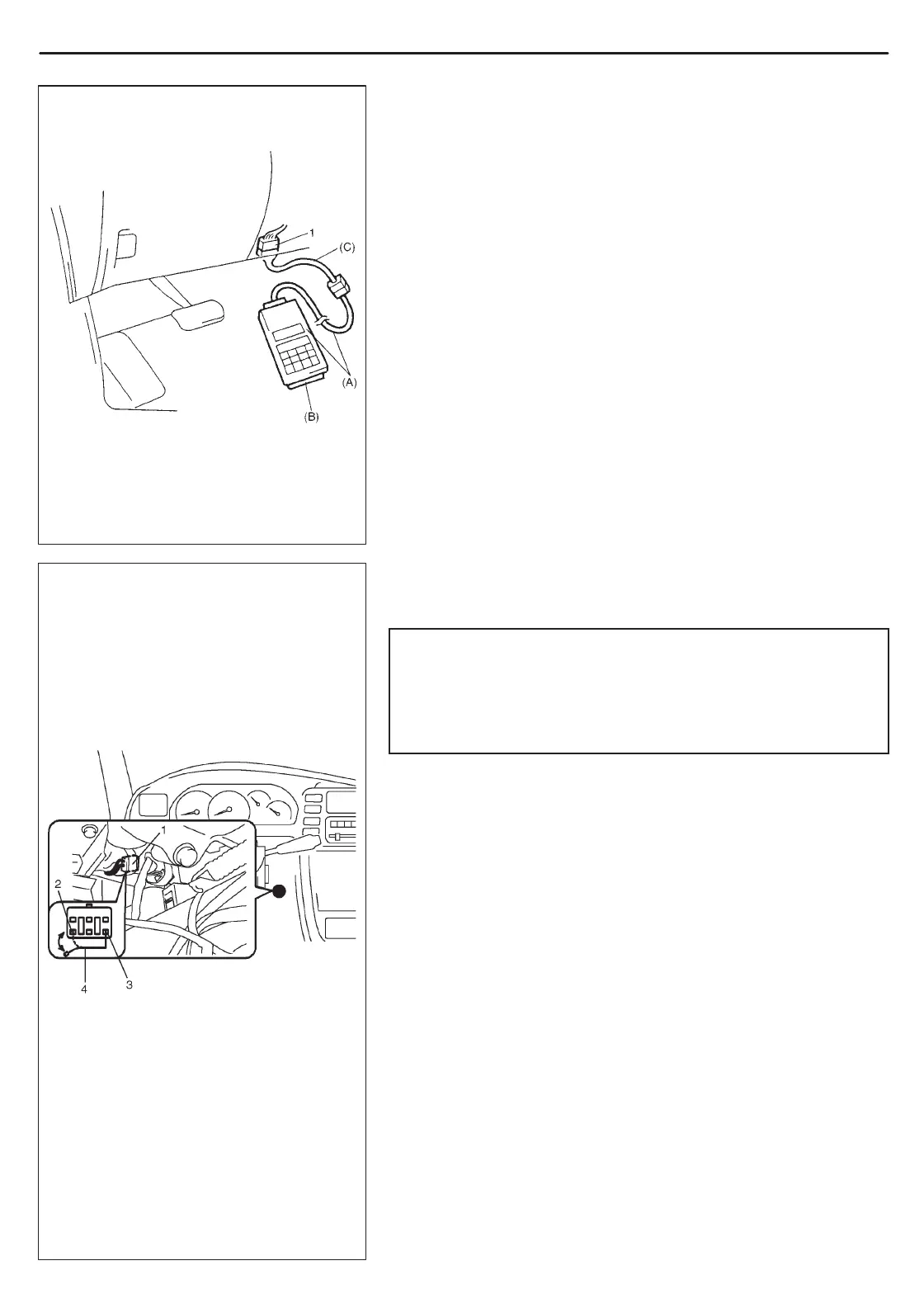

1. Data link connector (DLC)
1. Diagnosis connector (6 pins connector)
2. Ground terminal
3. Diag. switch terminal
4. Service wire
DTC CHECK (USING SUZUKI SCAN TOOL)
1) After setting cartridge for ABS to SUZUKI scan tool, connect SU-
ZUKI scan tool to data link connector.
Special Tool
(A): 09931-76011 (SUZUKI scan tool)
(B): Mass storage cartridge
(C): 16/14 pin DLC cable
2) Turn ignition switch ON.
3) Read DTC according to instructions displayed on SUZUKI scan
tool and print it or write it down. Refer to SUZUKI scan tool opera-
tor’s manual for further details.
4) After completing the check, turn ignition switch off and discon-
nect SUZUKI scan tool from DLC.
DIAGNOSTIC TROUBLE CODE (DTC)
CLEARANCE
WARNING:
When performing a driving test, select a safe place where
there is neither any traffic nor any traffic accident possibil-
ity and be very careful during testing to avoid occurrence of
an accident.
After repair or replace malfunction part(s), clear all DTC’s by per-
forming the following procedure.
1) Turn ignition switch OFF.
2) Using service wire, connect diag. switch terminal of diag. con-
nector to diag. ground terminal.
3) With connection described in above step 2) maintained, turn
ignition switch ON.
4) Repeat on/off operation of service wire at diag. ground terminal
at least 5 times within 10 seconds.
NOTE:
Service wire ON time must be for 0.1 second and more.
5) Turn ignition switch OFF and disconnect service wire from diag.
connector.
6) Perform DRIVING TEST and DTC CHECK and confirm that nor-
mal DTC (DTC 12) is displayed; not malfunction DTC.
NOTE:
It is also possible to clear DTC by using SUZUKI scan tool.
Refer to Cartridge Manual for procedure to clear DTC.
To Next Page
