Tektronix TG8000 User Manual

AGL7 Analog Genlock module
When BLACK 3 is s
elected, the formats listed below are available. Press the
ENTER button to confirm the selection and to enable the selected trilevel
sync signal or the black burst signal when Black Burst (Same as BLACK2) is
selected.
1080 60i
1080 59.94i
1080 50i
1080 24sF
1080 23.98
sF
1080 30p
1080 29.97p
1080 25p
1080 24p
1080 23.98p
720 60p
720 59.94p
720 50p
Black Burst (Same as BLACK 2)
TIMING. Adjusts the timing offset for the output signals relative to the internal
refe
rence signal (frame reset signal). When you select this menu item and press
the ENTER button, you will access the TIMING submenu where you will select
the timing offset. (See page 3-14.)
You cannot set the timing offset under the following conditions:
Whe
n HD SYNC (Same as BLACK 3) is selected as a format for the
BLACK 2 output.
Wh
en Black Burst (Same as BLACK 2) is se lected as a format for the
BLACK 3 output.
AGL7 module
S
IGNAL submenu
Use this menu to select the black burst signal for the NTSC, NTSC No Setup, and
P
AL formats. Use the left (◄)orright(►) arrow button to select the black burst
signal, and then press the ENTER buttontoconfirm the selection. The following
figure shows the SIGNAL submenu.

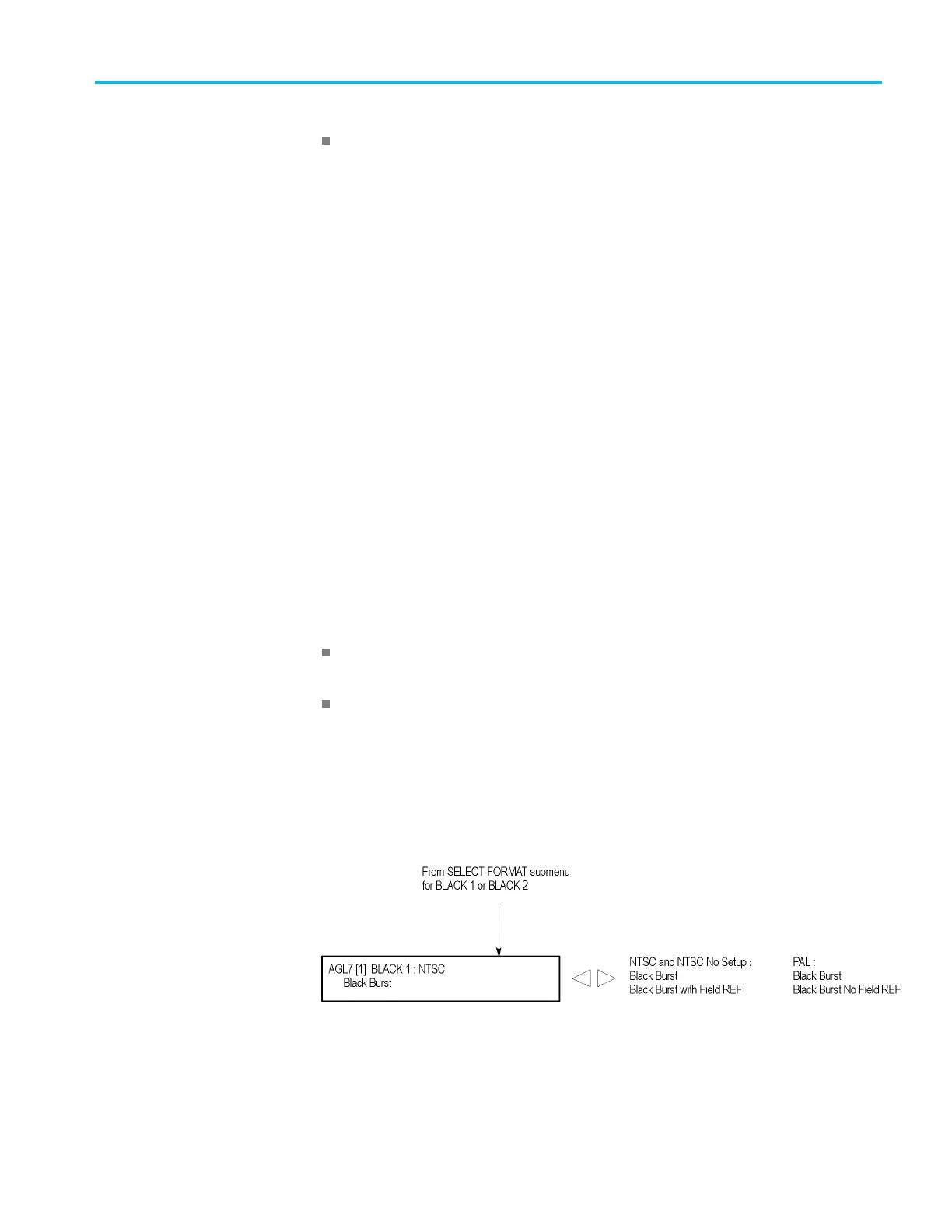

Figure 3-7: AGL7 module SIGNAL submenu
TG8000 Multiformat Test Signal Generator User Manual 3–13
