DS1067-062C 11 LBT20063
1.2 1067/026 TOUCHSCREEN KEYPAD WITH PROXIMITY KEY READER

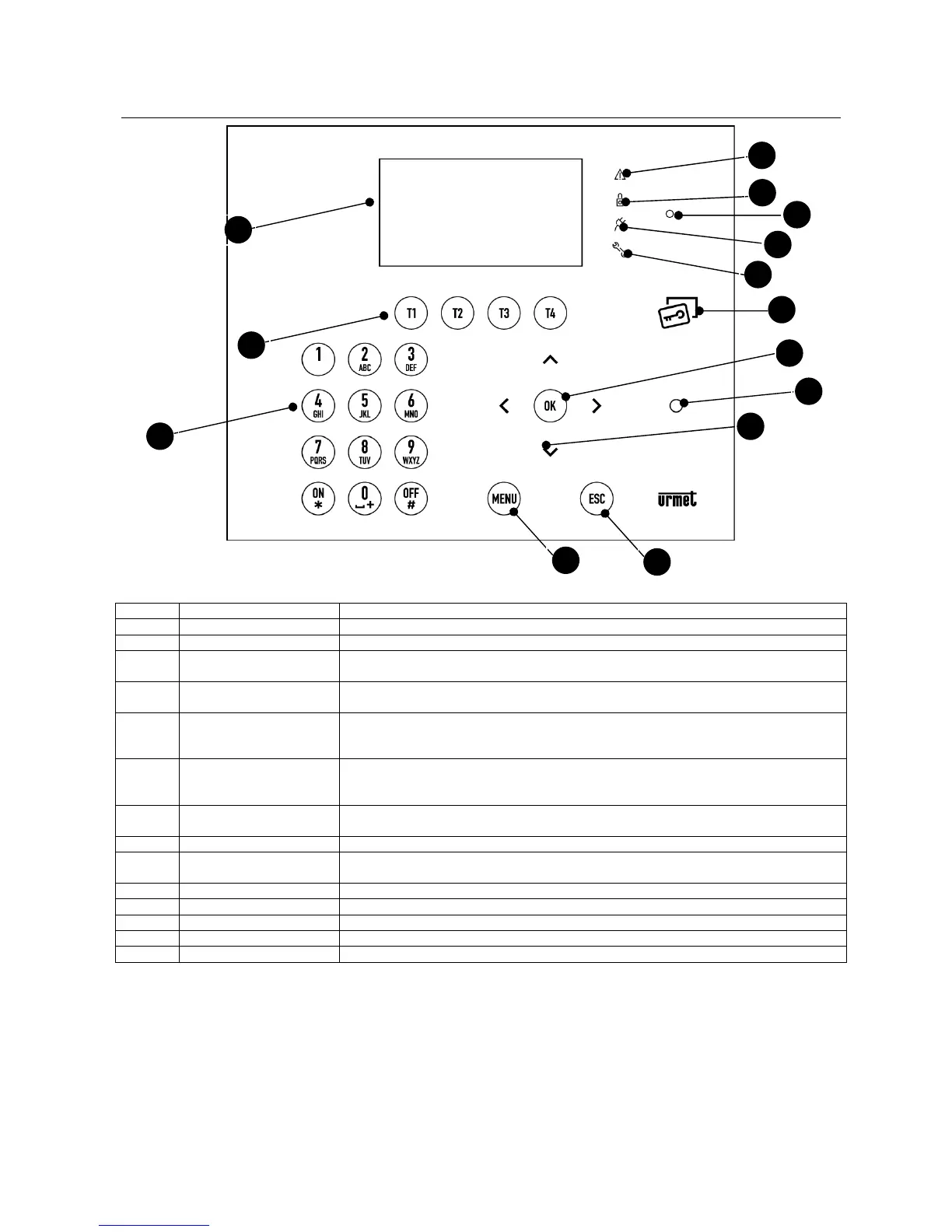

Figure 3 – 1067/026 keypad
Ref. Description Use or indications provided
A Alphanumeric keys Used to enter the access code, select some functions and program the control panel
B Function keys Used to activate the additional system functions
C Graphic OLED display
In stand-by, shows date and time, detailed system status information, event log and
programming menus
D
Yellow LED
Notices
Off = normal operation
On= failure, fault, alarm or tampering
E
Green LED
System status
Off = system disarmed
On= system all armed
Blinking = system partially armed
F
Green LED
Mains voltage
On = mains power present
Blinking = no mains power, battery power present
See Installation Manual.
G
Yellow LED
Maintenance
Off = normal operation
On= system maintenance in progress
H Proximity key reader Proximity key sensor
I
OK key
Confirm access code and other entered data; confirm chosen menu item and go to
the submenu
L Arrow keys To scroll menu items and edit the value of some parameters
M
MENU key
To access the menu
N
ESC key
To go back to the upper menu level
P Approach sensor Approach the hand to activate the keypad
Q Microphone Environmental listening microphone
* Displaying information other than date and time in stand-by mode declasses EN50131 certification from grade 3 to grade 2.
Table 5 - 1067/026 keypad elements
A
B
C
G
D
E
M
L
I
F
H
P
Q
N
