1.2.4 Area indications

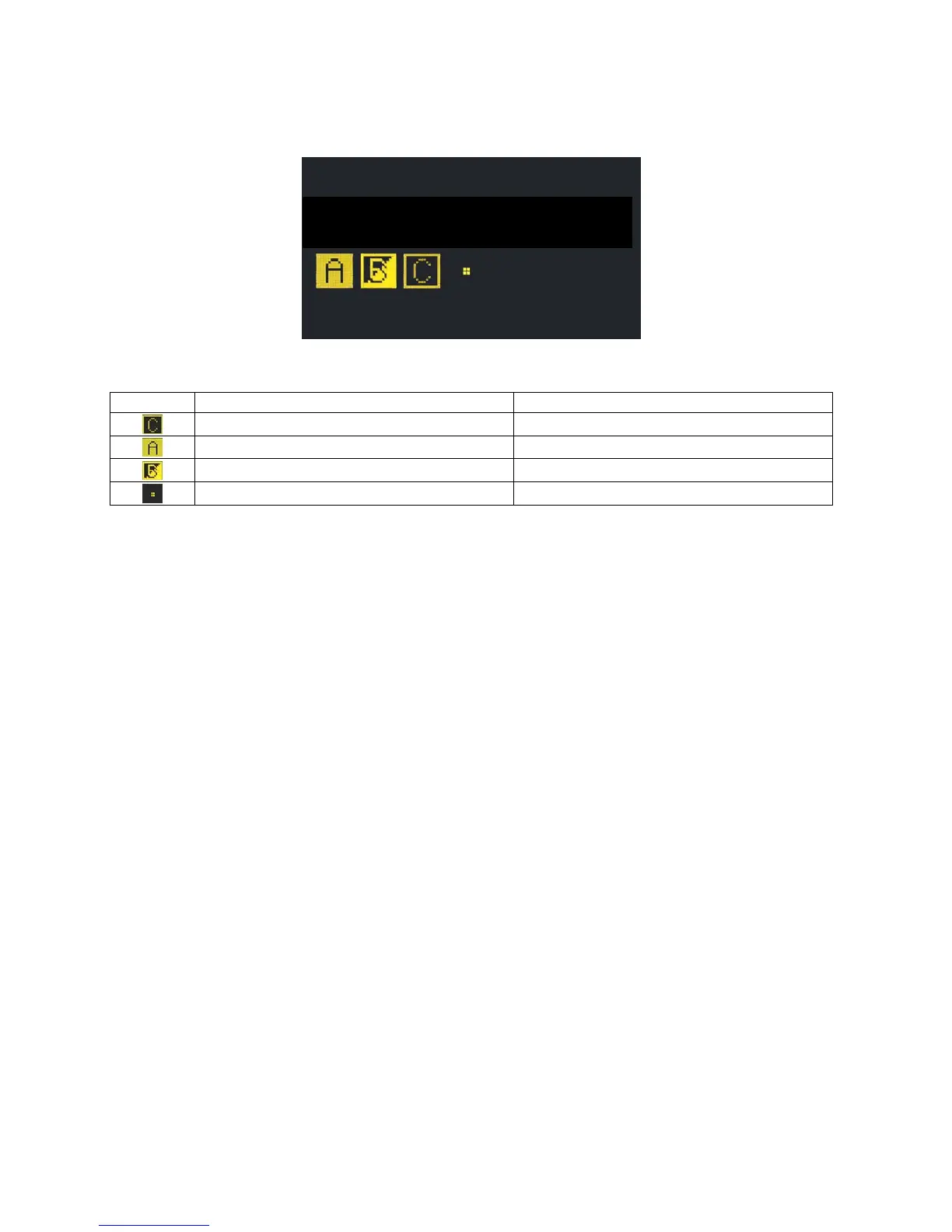

The areas status is shown on the displays in graphic mode. The areas status is shown on the last line.
The meanings are:
Symbol During normal use During programming
area disarmed area not associated to the function
area armed area associated to the function
area partially armed
area does not exist area does not exist
In the example above, area A is armed, area B is partially armed, area C is disarmed and area D does not exist.
