1 CONTROL DEVICES
This chapter contains a description of the devices which allow to access the alarm system locally, to arm or disarm the
system, to program and to interact with it.
The function of the various keys and the information supplied by the LEDs and on the display are explained for keypads.
The information supplied by the LEDs is provided for readers.
1.1 1067/022 KEYPAD DISPLAY

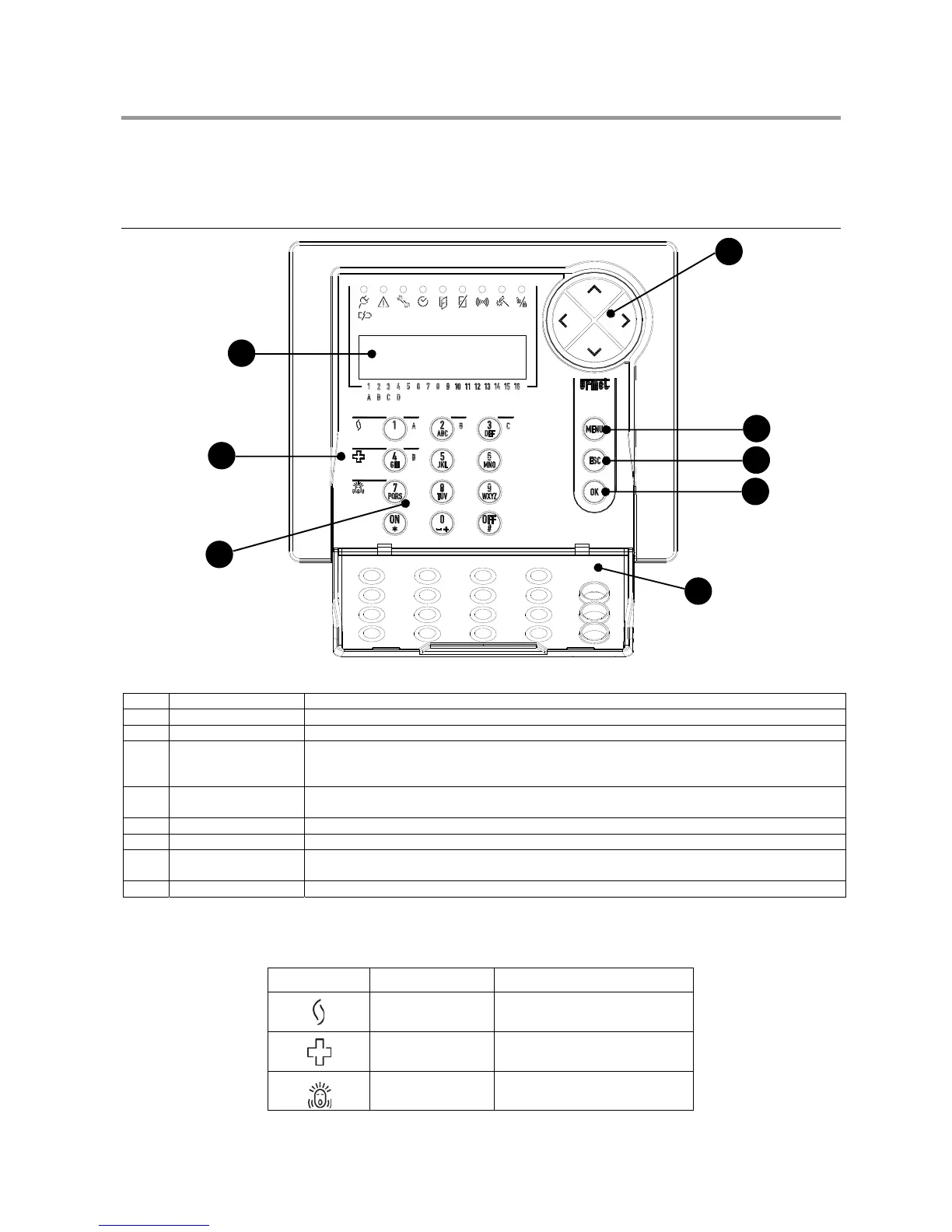

Figure 1 – 1067/022 keypad
Ref. Description Use or indications provided
A Alphanumeric keys For entering the access code, arming or disarming the system, programming the system.
B Function keys For activating fire, emergency and silent panic indications.
C
LCD 2 x 16
characters
Date and time or detailed information on system status is shown in stand-by mode*.
Menus and system parameters and information are shown during system programming or
querying.
D Navigation keys
These are used to go from one menu item to another. They change the value of some
parameters.
E
MENU key
To access the menu.
F
ESC key
To go back to the upper menu level.
G
OK key
To confirm the access code and other entered data.
To confirm the chosen menu and go to the submenu.
H Lid To protect the alphanumeric keys.
* Displaying information other than date and time in stand-by mode declasses EN50131 certification from grade 3 to grade 2.
Table 1 - 1067/022 keypad elements
1.1.1 Function keys
Symbol Key Associated function
1 Fire indication
4 Emergency indication
7 Silent panic indication
Table 2 - 1067/022 keypad function keys
