Yamaha Tracer MT09TRAH 2017 User Manual

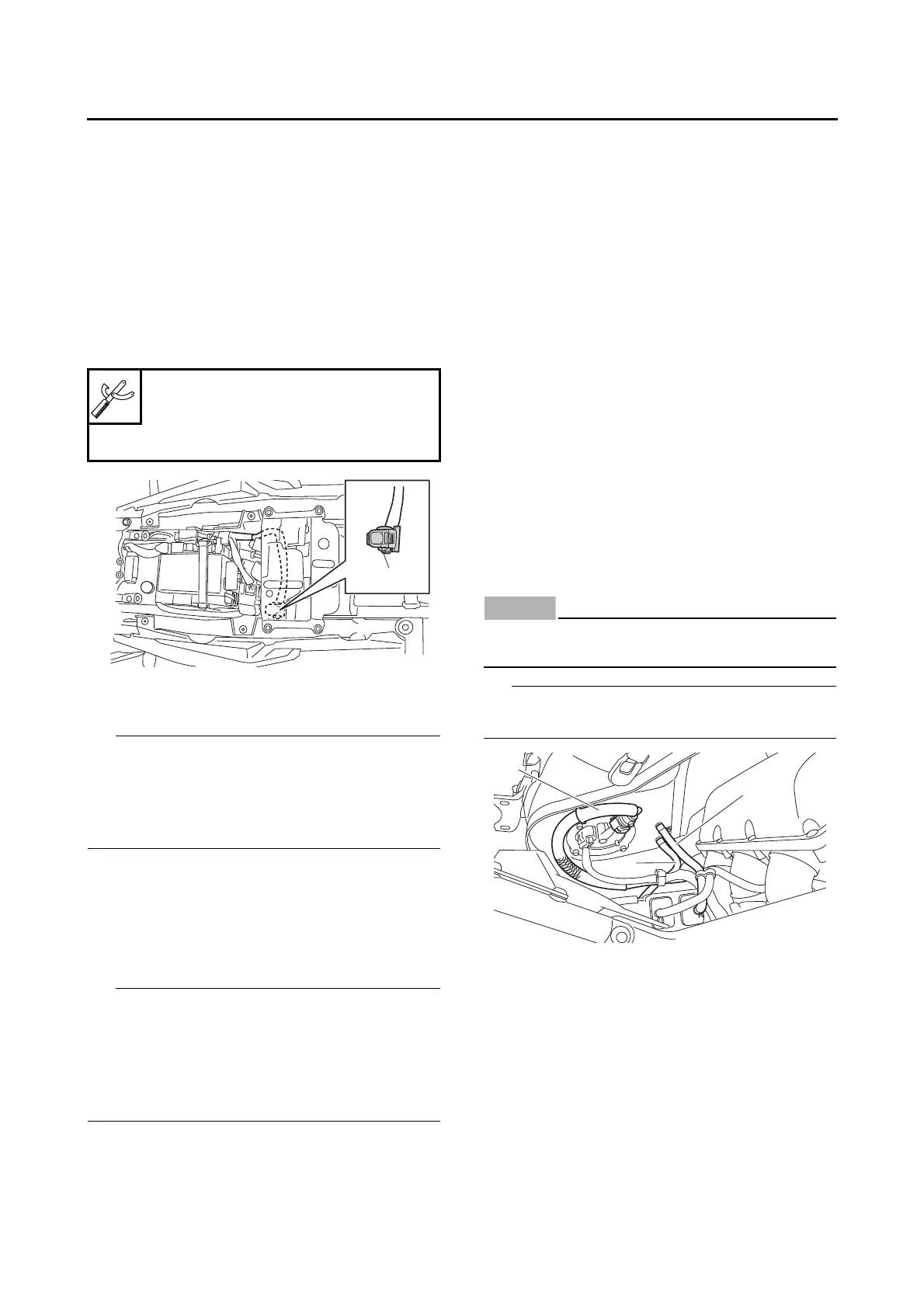

PERIODIC MAINTENANCE
3-4
EAS32024
CHECKING THE VEHICLE USING THE
YAMAHA DIAGNOSTIC TOOL
Use the Yamaha diagnostic tool and check the
vehicle according to the following procedure.
1. Remove:
• Rider seat/Passenger seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
2. Remove the protective cap “1”, and then con-
nect the Yamaha diagnostic tool to the cou-
pler.
3. Check:
• Fault codes
TIP
Use the “Diagnosis of malfunction” function of
the Yamaha diagnostic tool to check the fault
codes. For information about using the Yamaha
diagnostic tool, refer to the operation manual
that is included with the tool.
Fault code number is displayed  Check and
repair the probable cause of the malfunction.
Refer to “TROUBLESHOOTING DETAILS
(FAULT CODE)” on page 8-35.
4. Perform:
• Dynamic inspection
TIP
Use the “Dynamic inspection” function of the
Yamaha diagnostic tool version 3.0 and after to
perform the dynamic inspection. For information
about using the Yamaha diagnostic tool, refer to
the operation manual that is included with the
tool.
5. Install:
• Rider seat/Passenger seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
EAS30619
CHECKING THE FUEL LINE
The following procedure applies to all of the fuel,
drain and breather hoses.
1. Remove:
• Fuel tank front cover/Front side panel/Front
side cowling
Refer to “GENERAL CHASSIS (2)” on page
4-6.
• Passenger seat/Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
• Fuel tank cover
Refer to “GENERAL CHASSIS (3)” on page
4-13.
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
2. Check:
• Fuel hose “1”
• Fuel tank breather hose “2”
• Fuel tank drain hose “3”
Cracks/damage  Replace.
Loose connection  Connect properly.
NOTICE
ECA14940
Make sure the fuel tank breather hose is rout-
ed correctly.
TIP
Before removing the fuel hoses, place a few
rags in the area under where it will be removed.
3. Install:
• Fuel tank
Refer to “FUEL TANK” on page 7-1.
• Fuel tank cover
Refer to “GENERAL CHASSIS (3)” on page
4-13.
• Rider seat/Passenger seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
• Front side cowling/Front side panel/Fuel tank
front cover
Refer to “GENERAL CHASSIS (2)” on page
Yamaha diagnostic tool USB
90890-03250
Yamaha diagnostic tool (A/I)
90890-03252
1
1
2
3
