REAR WHEEL
4-30
EAS30156

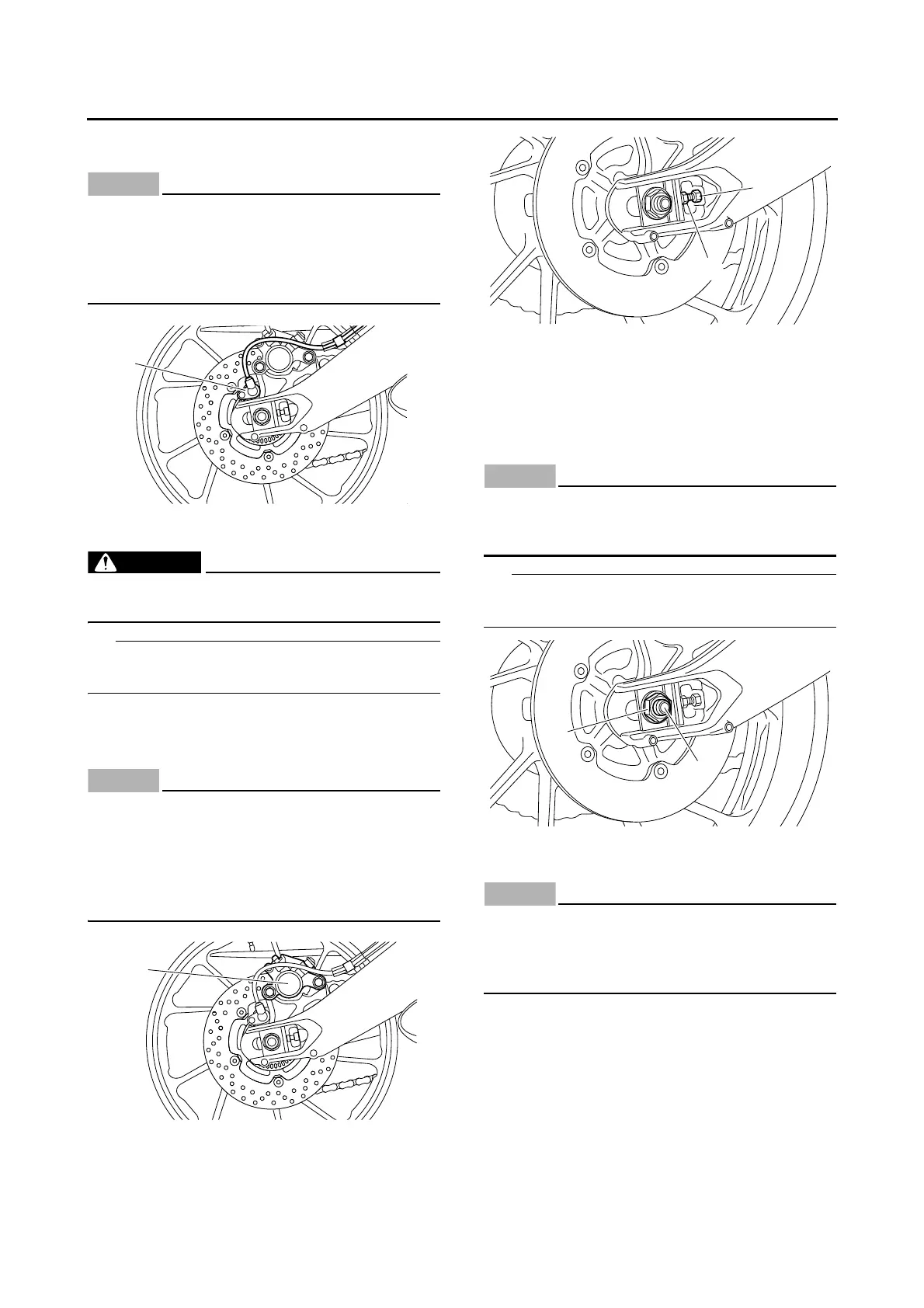

REMOVING THE REAR WHEEL
ECA21390
Keep magnets (including magnetic pick-up
tools, magnetic screwdrivers, etc.) away
from the rear wheel sensor “1”, otherwise
the wheel sensor may be damaged, resulting
in improper performance of the ABS.
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Place the vehicle on the centerstand so that the
rear wheel is elevated.
2. Remove:
• Rear brake caliper “1”
• Rear wheel sensor
ECA21040
• Do not depress the brake pedal when re-
moving the brake caliper.
• Be sure not to contact the sensor electrode
to any metal part when removing the rear
wheel sensor from the rear brake caliper
bracket.
3. Loosen:
• Locknuts “1”
• Adjusting bolts “2”
4. Remove:
• Wheel axle nut “1”
• Washer
• Wheel axle “2”
• Rear wheel
• Brake caliper bracket
ECA21400
Be sure to remove the rear wheel sensor be-
fore removing the brake caliper bracket, oth-
erwise the sensor could be damaged.
Push the rear wheel forward and remove the
drive chain from the rear wheel sprocket.
EAS30158
DISASSEMBLING THE REAR WHEEL
ECA21340
• Do not drop the wheel sensor rotor or sub-
ject it to shocks.
• If any solvent gets on the wheel sensor ro-
tor, wipe it off immediately.
1. Remove:
• Oil seal
• Wheel bearings
Refer to “DISASSEMBLING THE FRONT
WHEEL” on page 4-21.
