FRONT BRAKE
4-35
EAS20030
FRONT BRAKE

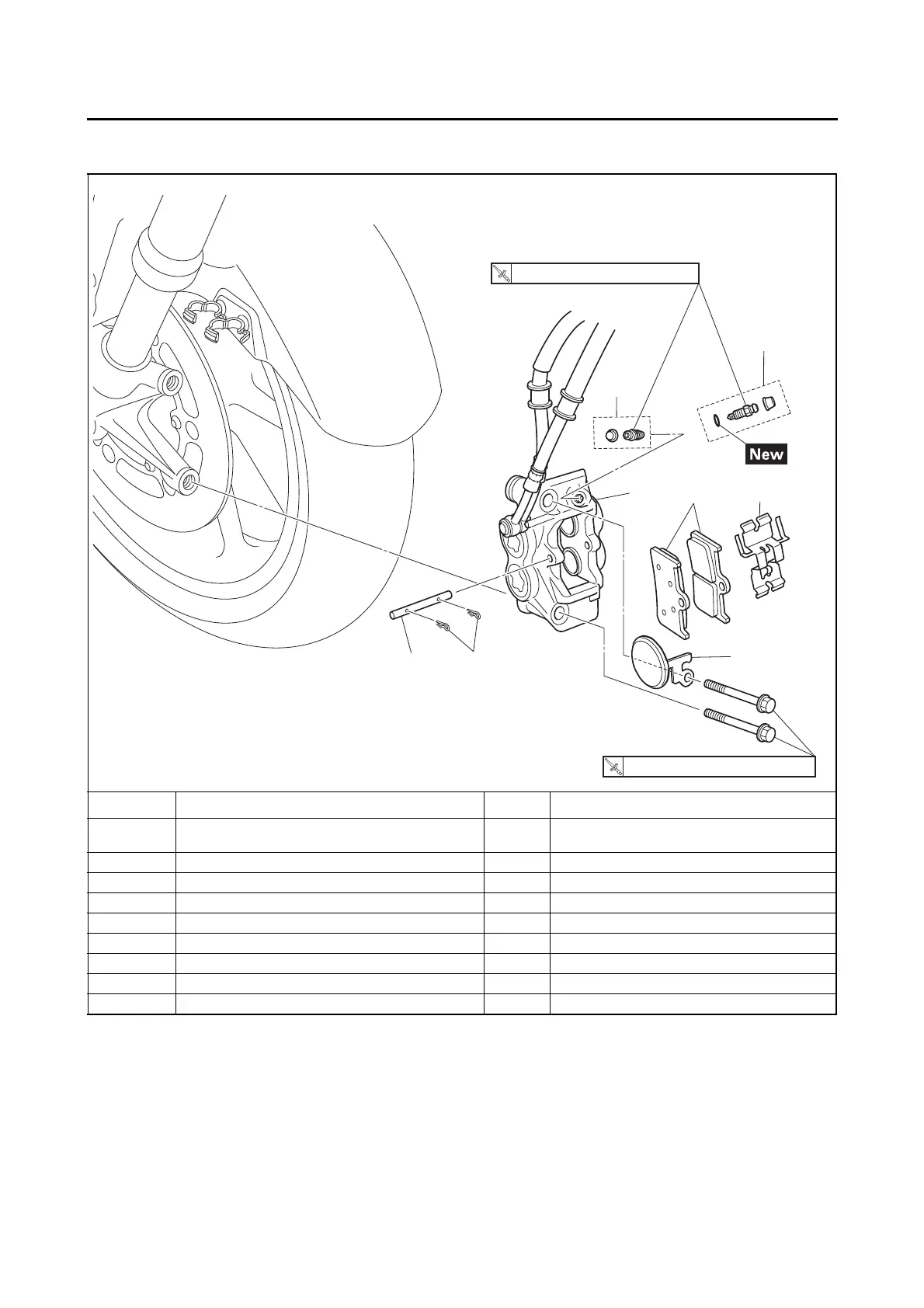

Removing the front brake pads
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
1 Brake pad clip 2
2 Brake pad pin 1
3 Brake pad spring 1
4Brake pad 2
5 Reflector 1
6 Front brake caliper 1
7 Bleed screw 1
8 Bleed screw 1 Right brake caliper side.
12
3
4
6
7
8
5
5 N・m (0.5 kgf・m, 3.6 lb・ft)
35 N・m (3.5 kgf・m, 25 lb・ft)
