CAMSHAFTS
5-9
EAS20043
CAMSHAFTS

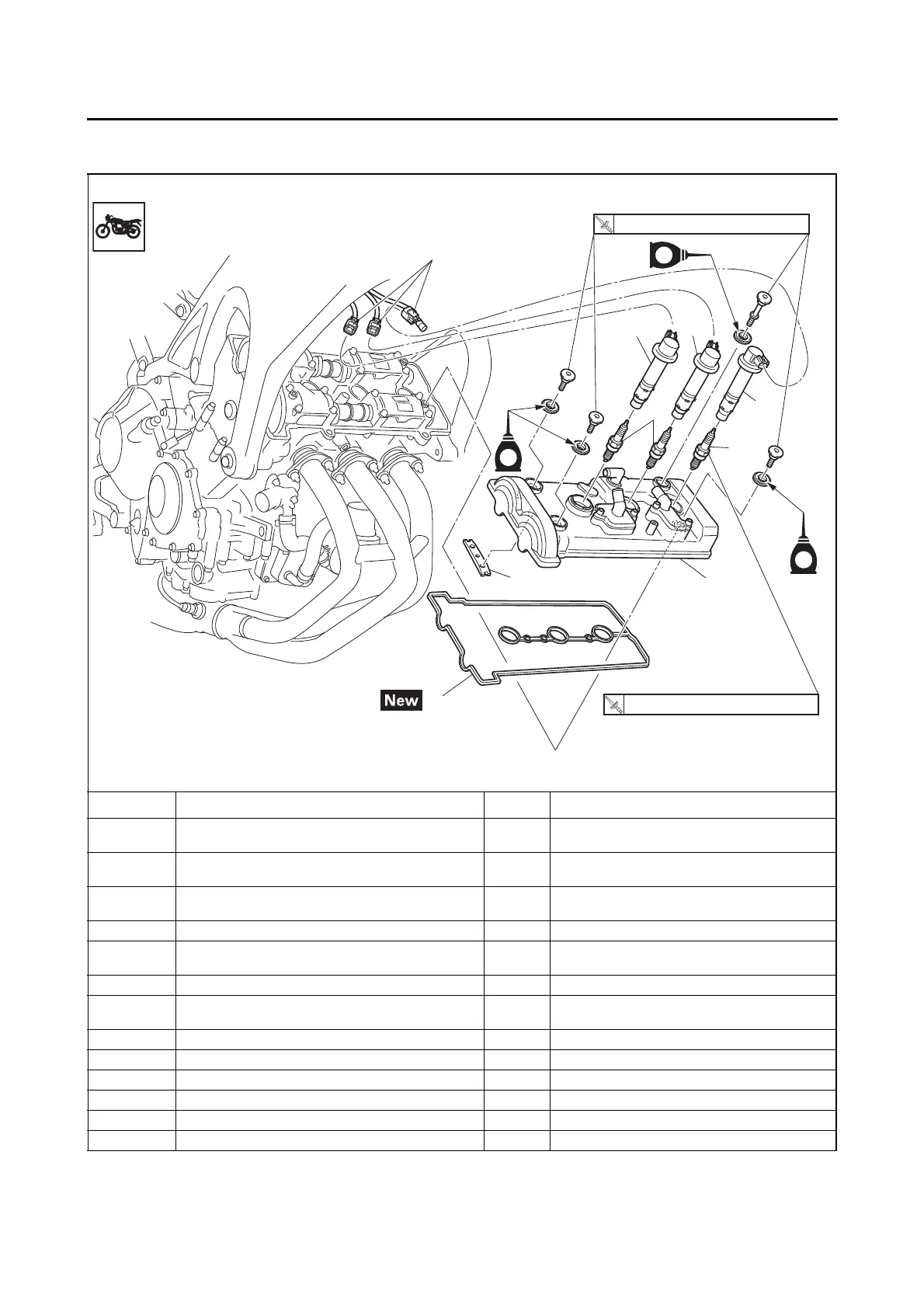

Removing the cylinder head cover
Order Job/Parts to remove Q’ty Remarks
Fuel tank front cover/Front side panel/Front side
cowling
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Passenger seat/Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Radiator Refer to “RADIATOR” on page 6-1.
Air cut-off valve
Refer to “AIR INDUCTION SYSTEM” on
page 7-15.
1 Ignition coil coupler 3 Disconnect.
2 Ignition coil 3
3 Spark plug 3
4 Cylinder head cover 1
5 Cylinder head cover gasket 1
6 Timing chain guide (top side) 1
1
2
3
4
5
6
3
2
2
S
S
S
10 N・m (1.0 kgf・m, 7.2 lb・ft)
13 N・m (1.3 kgf・m, 9.4 lb・ft)
To Next Page
