CHAIN DRIVE
4-98
EAS20038
CHAIN DRIVE

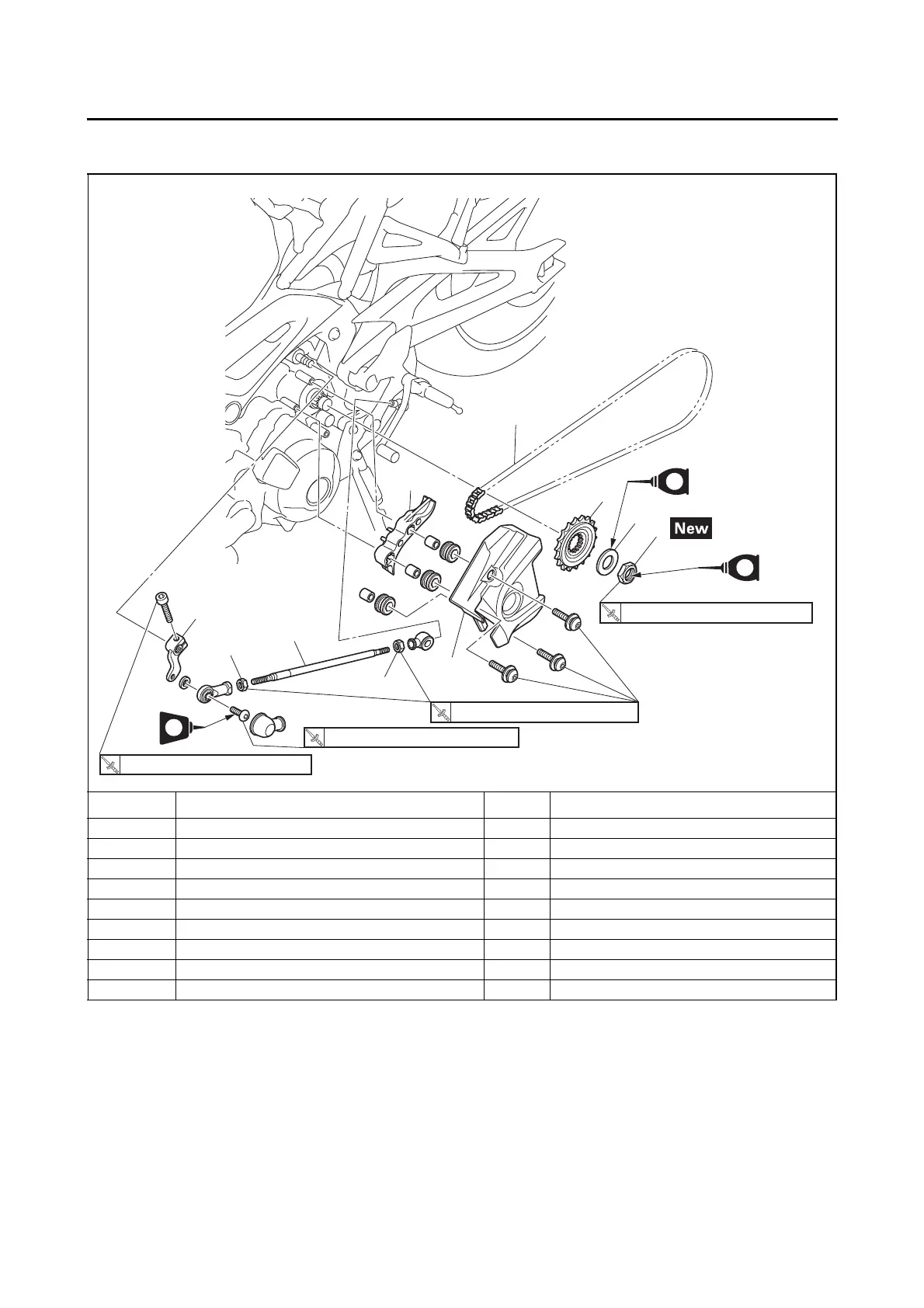

Removing the drive chain
Order Job/Parts to remove Q’ty Remarks
1 Locknut 2
2 Shift rod 1
3 Shift arm 1
4 Drive sprocket cover 1
5 Drive chain guide 1
6 Drive sprocket nut 1
7Washer 1
8 Drive sprocket 1
9Drive chain 1
1
2
3
4
5
6
7
8
9
E
1
LT
E
10 N・m (1.0 kgf・m, 7.2 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
95 N・m (9.5 kgf・m, 69 lb・ft)
8 N・m (0.8 kgf・m, 5.8 lb・ft)
