STEERING HEAD
4-87
EAS20035

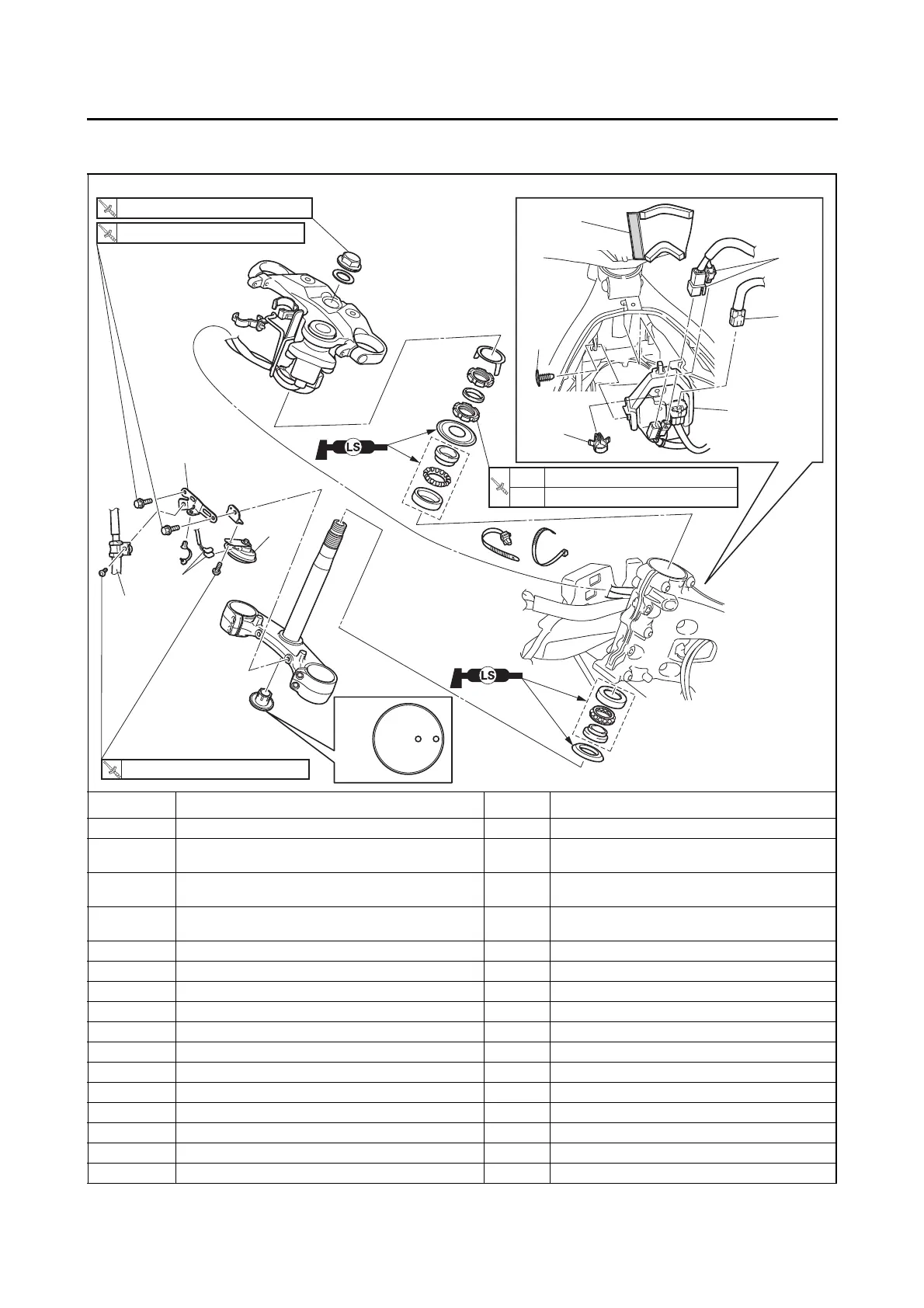

STEERING HEAD
Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case
Refer to “GENERAL CHASSIS (3)” on page
4-13.
Headlight assembly
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Meter assembly
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Handlebar Refer to “HANDLEBAR” on page 4-69.
Front fork legs Refer to “FRONT FORK” on page 4-76.
1 Protector 1
2 Rivet 1
3 Coupler cover assembly 1
4 Clamp 1
5 Main switch coupler 2 Disconnect.
6 Immobilizer coupler 1 Disconnect.
7 Horn lead connector 2 Disconnect.
8Horn 1
9 Front brake hose 1
10 Front brake hose bracket 1
FWD
7
9
10
8
1
2
5
6
4
3
110 N・m (11 kgf・m, 80 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
3
4
1st
2nd
52 N・m (5.2 kgf・m, 38 lb・ft)
18 N・m (1.8 kgf・m, 13 lb・ft)
To Next Page
