CLUTCH
5-38
EAS20055
CLUTCH

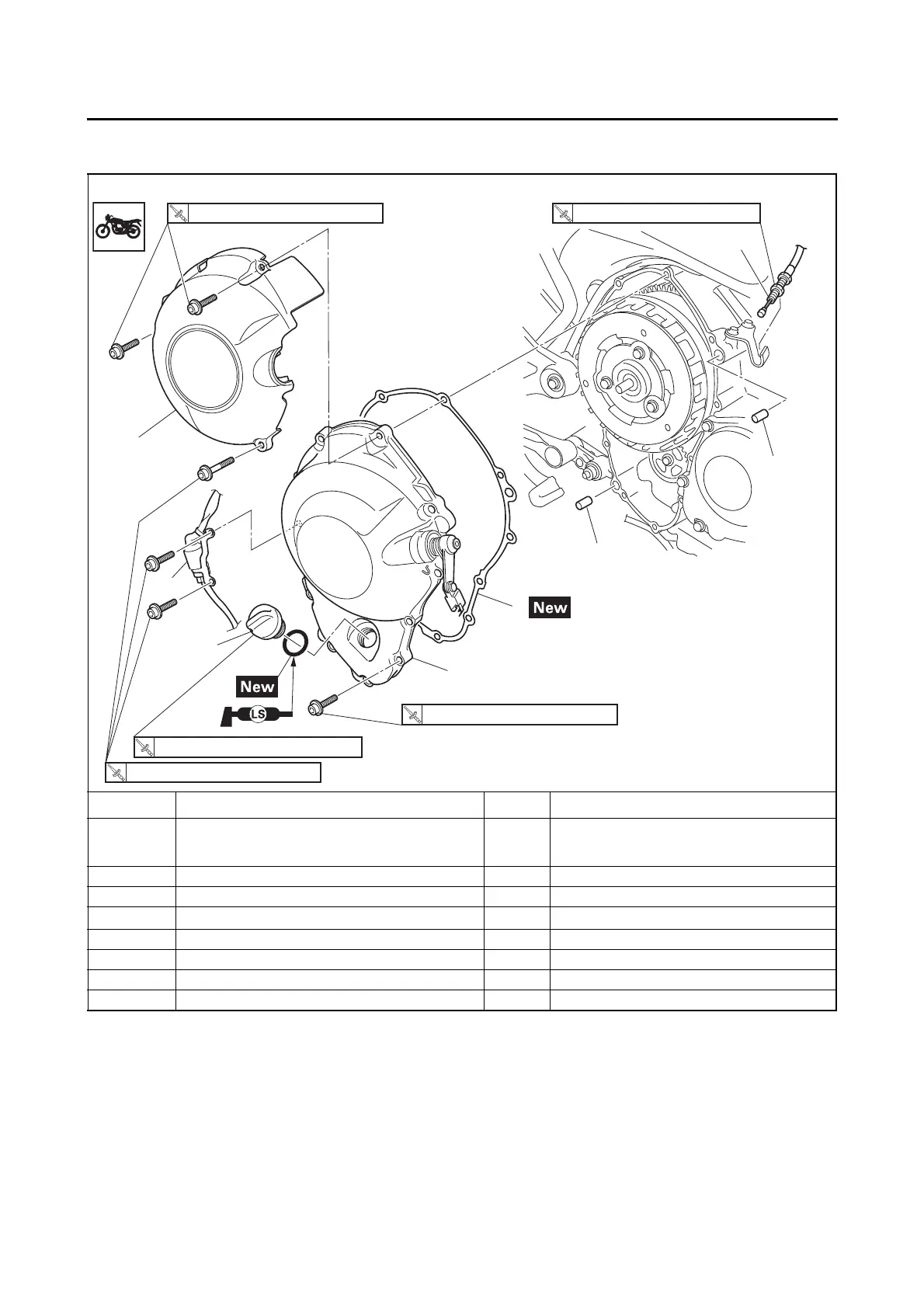

Removing the clutch cover
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-24.
1 Clutch cable 1 Disconnect.
2Cover 1
3
O
2
sensor coupler bracket
1
4 Clutch cover 1
5 Clutch cover gasket 1
6 Dowel pin 2
7 Oil filler cap 1
1
2
3
4
5
6
7
6
(6)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
