GENERAL CHASSIS (2)
4-12

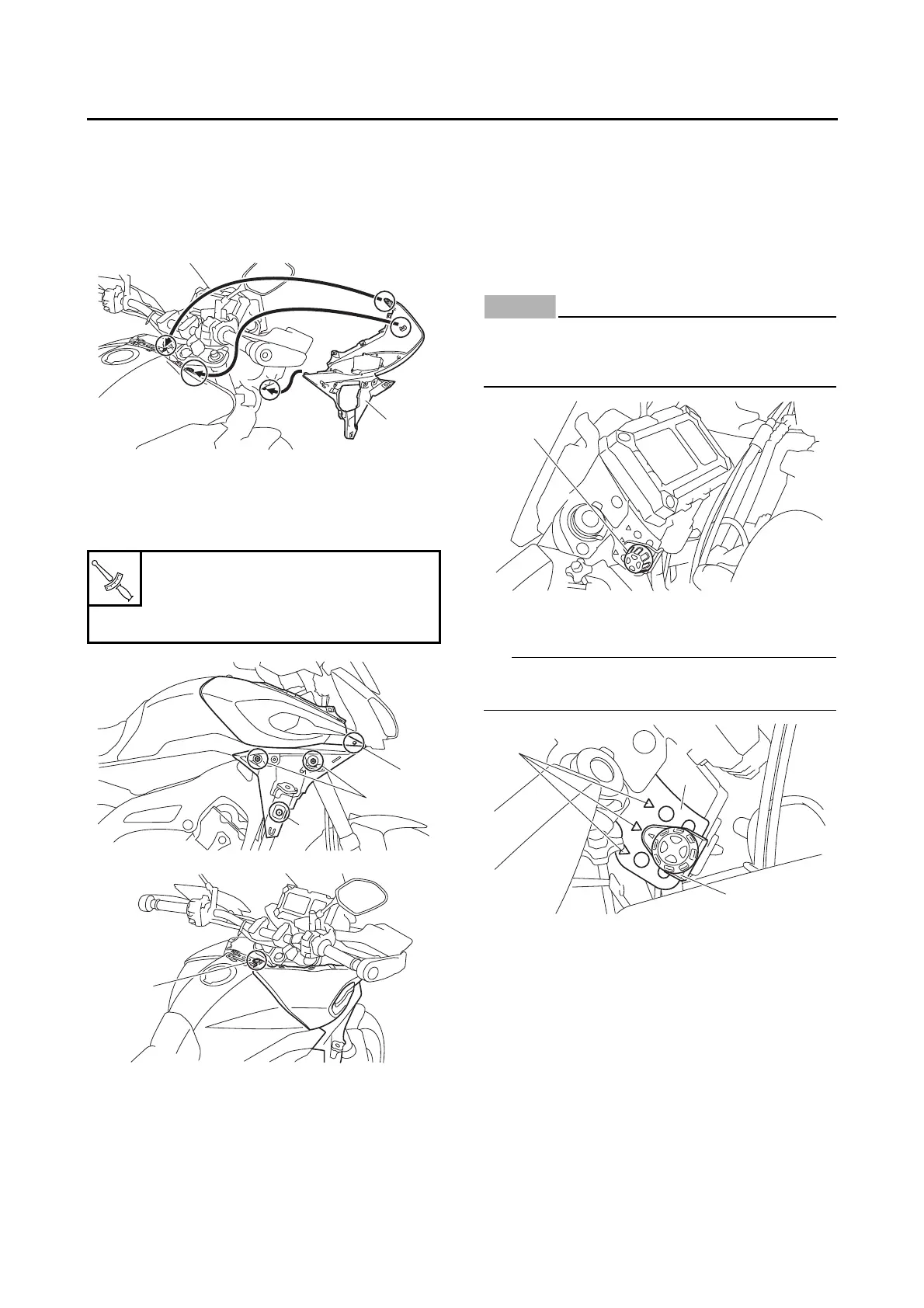

2. Install:
• Front side cowling (right) “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Insert the slot “a” into the projection “b”, and
then install the front side cowling as shown in
the illustration.
b. Install the quick fastener screw “2”, front side
cowling screw “3” and front side cowling bolts
“4”, and then tighten the screw and bolts to
specification.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Install:
• Front side panel
• Fuel tank front cover
EAS31383
ADJUSTING THE WINDSHIELD HEIGHT
1. Adjust:
• Windshield height position
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen the windshield height position adjust-
ing knob “1” on each side of the windshield
until resistance is felt.
NOTICE
ECA20430
Do not continue turning the knob after resis-
tance is felt. Otherwise, the knob could be
damaged.
b. Align the slide plate holder “2” with the match
marks “3” at the desired position.
TIP
Make sure that the projection on plate holder fits
into the corresponding hole in the slide plate “4”.
c. Tighten the adjusting knobs.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Front side cowling screw
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
Front side cowling bolt
4.0 N·m (0.40 kgf·m, 2.9 lb·ft)
1
a
b
T
R
.
.
4
3
2
4
1
3
4
2
