OIL PAN
5-55
EAS20177
OIL PAN

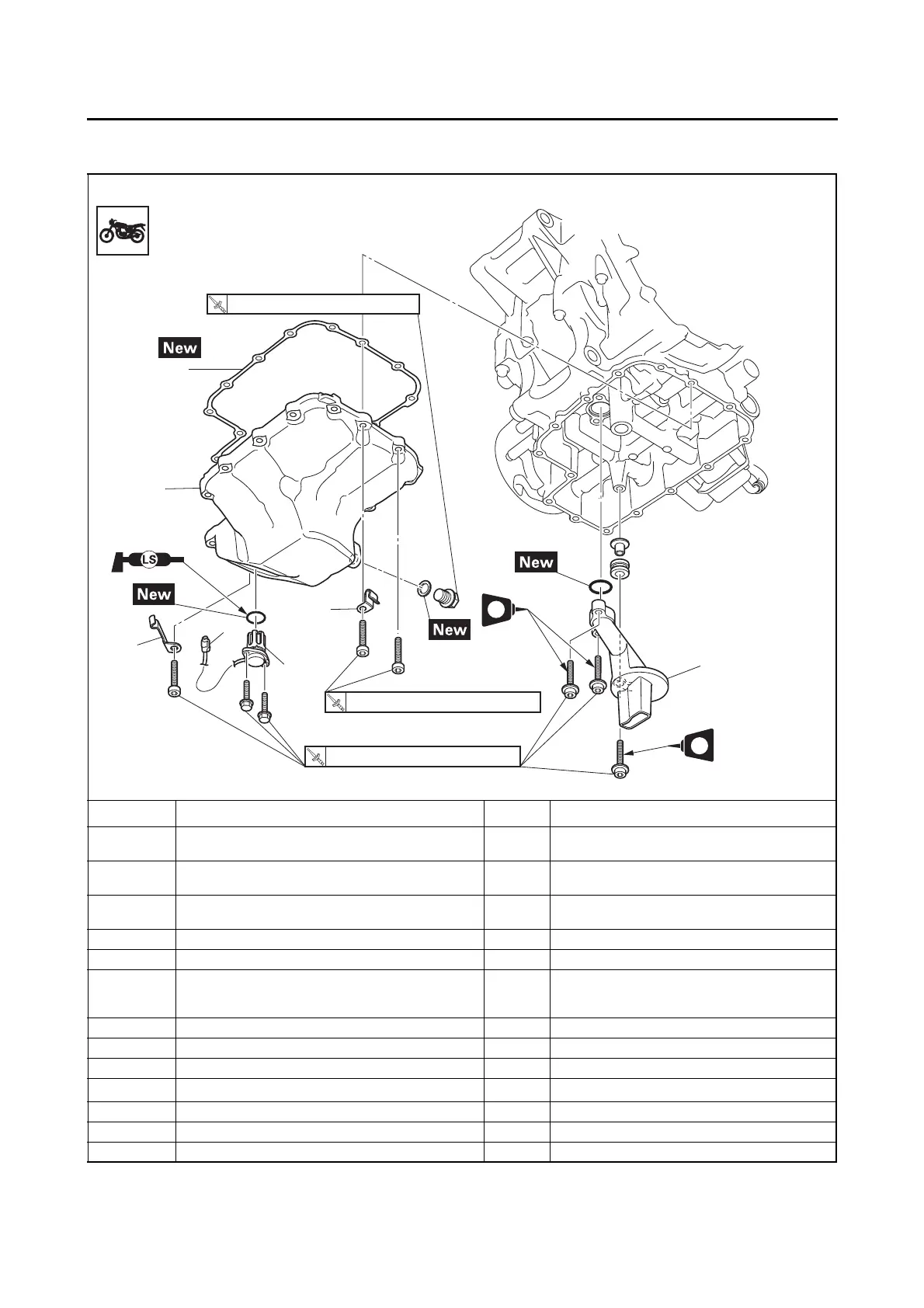

Removing the oil pan
Order Job/Parts to remove Q’ty Remarks
Fuel tank front cover/Front side panel/Front side
cowling
Refer to “GENERAL CHASSIS (2)” on page
4-6.
Passenger seat/Rider seat
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank cover
Refer to “GENERAL CHASSIS (1)” on page
4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Muffler assembly Refer to “ENGINE REMOVAL” on page 5-3.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-24.
1 Oil level switch coupler 1 Disconnect.
2 Oil level switch lead holder 1
3 Oil level switch 1
4
O
2
sensor lead holder
1
5Oil pan 1
6 Oil pan gasket 1
7 Oil strainer 1
1
2
3
4
5
6
7
LT
(13)
LT
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
43 N・m (4.3 kgf・m, 31 lb・ft)
To Next Page
