FRONT FORK
4-76
EAS20034
FRONT FORK

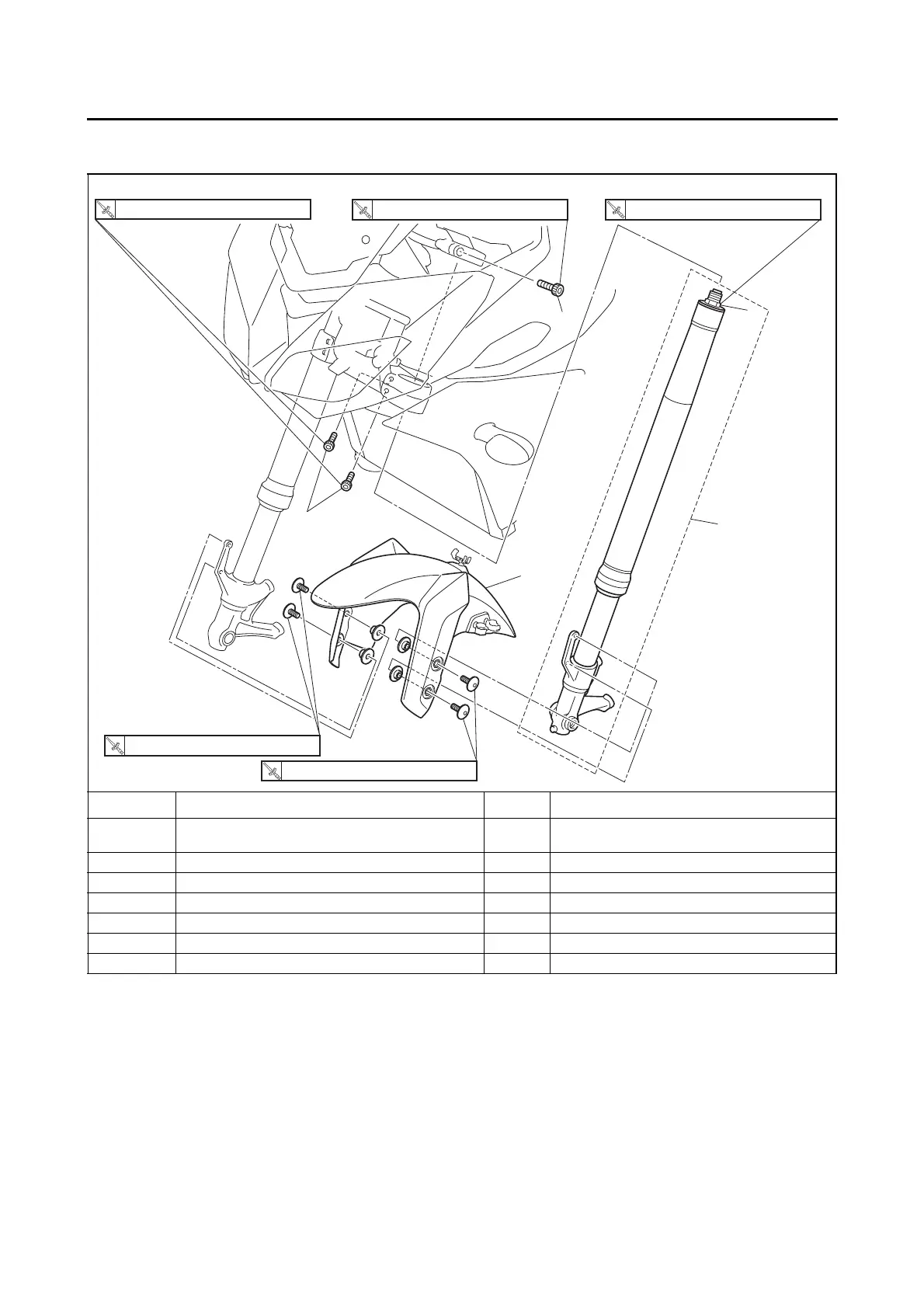

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Front wheel Refer to “FRONT WHEEL” on page 4-19.
1 Front fender 1
2 Upper bracket pinch bolt 1 Loosen.
3 Cap bolt 1 Loosen.
4 Lower bracket pinch bolt 2 Loosen.
5Front fork leg 1
1
2
3
4
5
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
26 N・m (2.6 kgf・m, 19 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
