ELECTRIC STARTER
5-37
6. Check:
• Gear teeth
Damage/wear Replace the starter motor.
7. Check:
• Bearing
• Oil seal
Damage/wear Replace the starter motor.
EAS30326

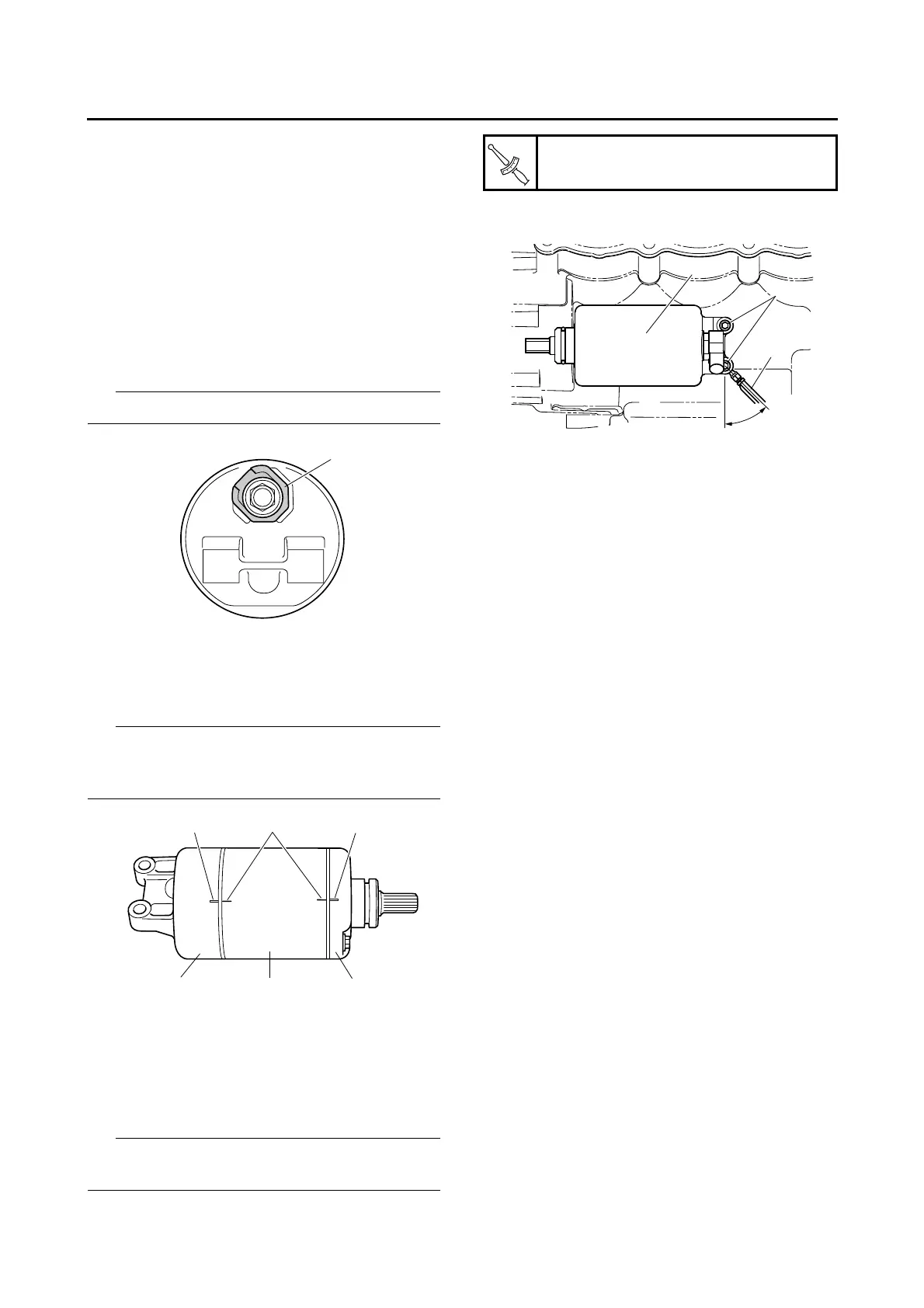

ASSEMBLING THE STARTER MOTOR
1. Install:
• Brush holder set
• Insulator “1”
Install the insulator as shown in the illustration.
2. Install:
• Starter motor rear cover “1”
• Starter motor yoke “2”
• Starter motor front cover “3”
Align the match marks “a” on the starter motor
yoke with the match marks “b” on the front and
rear cover.
EAS30327
INSTALLING THE STARTER MOTOR
1. Install:
• Starter motor “1”
• Negative battery lead “2”
• Starter motor bolts “3”
Install the negative battery lead as shown in the
illustration.
2. Connect:
• Starter motor lead
Starter motor bolt
12 N·m (1.2 kgf·m, 8.7 lb·ft)
To Next Page
