PERIODIC MAINTENANCE
3-30
tle body synchronization should be adjusted
properly.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

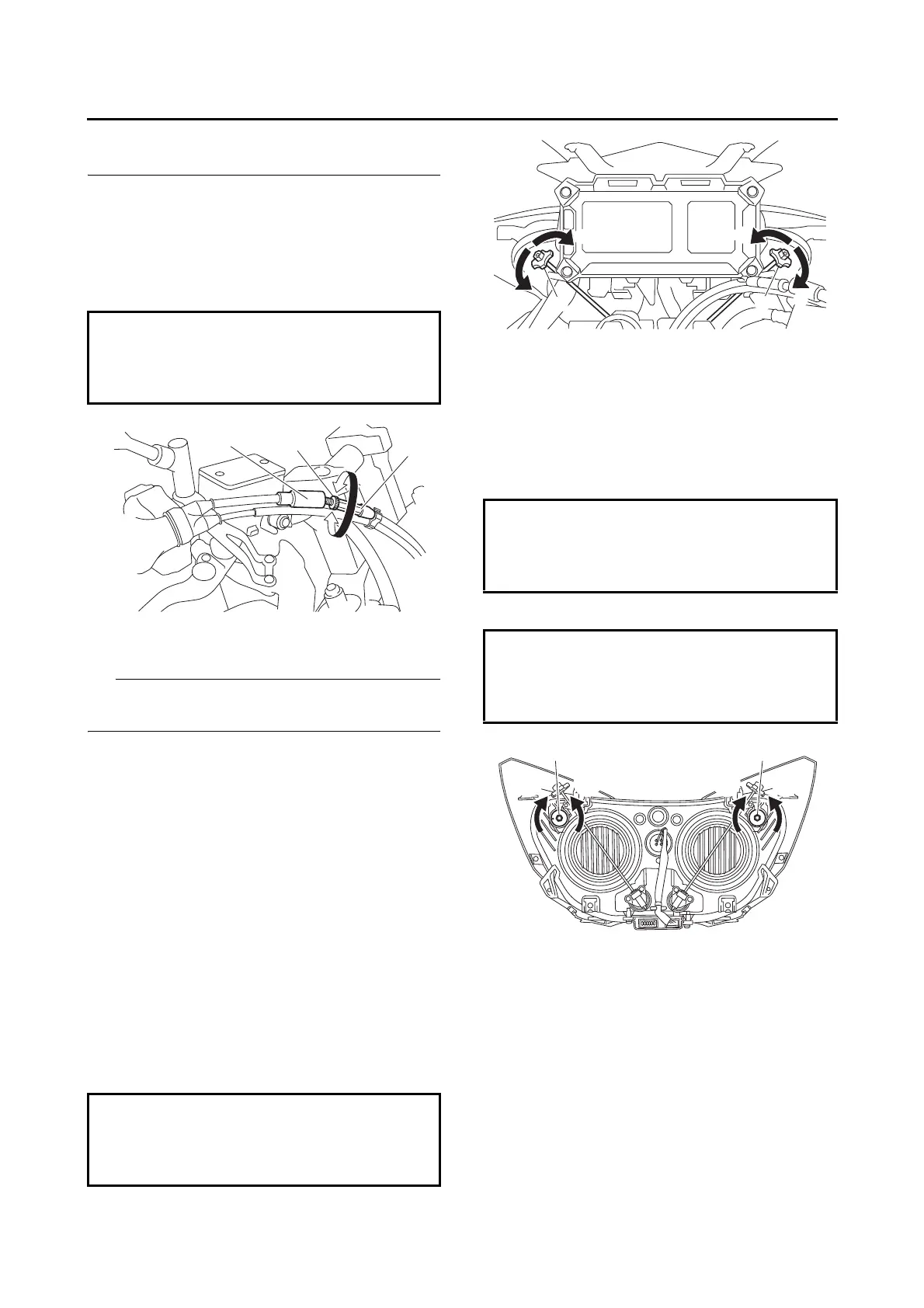

a. Slide back the rubber cover “1”.
b. Loosen the locknut “2”.
c. Turn the adjusting nut “3” in direction “a” or “b”
until the specified throttle grip free play is ob-
tained.
d. Tighten the locknut.
e. Slide the rubber cover to its original position.
TIP
Make sure that the adjusting nut is covered com-
pletely by the rubber cover.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS30816
CHECKING AND CHARGING THE BATTERY
Refer to “CHECKING AND CHARGING THE
BATTERY” on page 8-158.
EAS30662
CHECKING THE FUSES
Refer to “CHECKING THE FUSES” on page
8-157.
EAS30664
ADJUSTING THE HEADLIGHT BEAMS
1. Adjust:
• Headlight beam (vertically)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting knobs “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Adjust:
• Headlight beam (horizontally)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting screws “1” in direction “a”
or “b”.
Headlight (left)
Headlight (right)
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Direction “a”
Throttle grip free play is increased.
Direction “b”
Throttle grip free play is decreased.
Direction “a”
Headlight beam is lowered.
Direction “b”
Headlight beam is raised.
1
2
3
a
b
Direction “a”
Headlight beam moves to the right.
Direction “b”
Headlight beam moves to the left.
Direction “a”
Headlight beam moves to the left.
Direction “b”
Headlight beam moves to the right.
a
a
b
b
1
1
ab
1
ab
1
