ENGINE REMOVAL
5-3
EAS20042
ENGINE REMOVAL

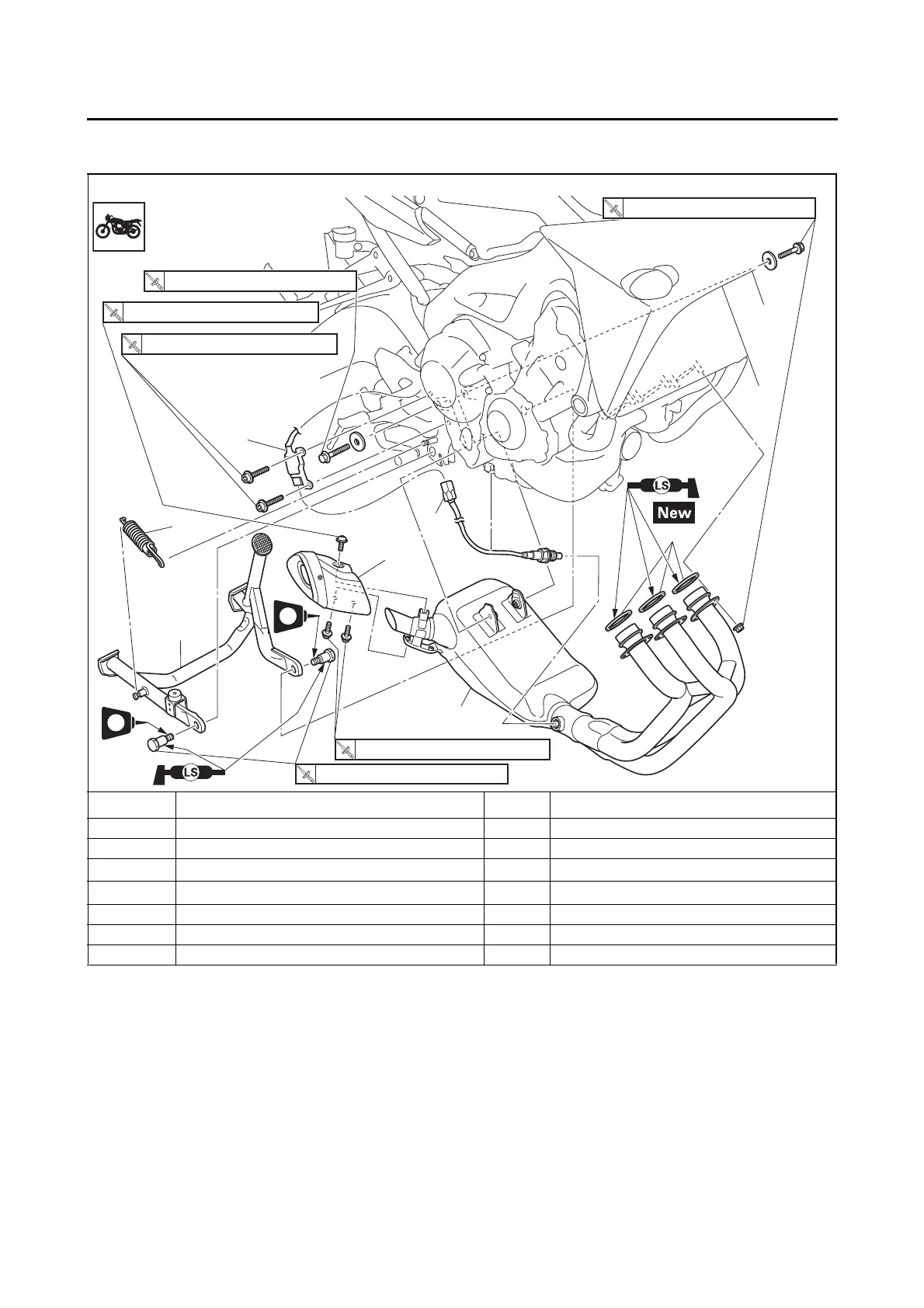

Removing the muffler and exhaust pipe
Order Job/Parts to remove Q’ty Remarks
1Spring 1
2 Centerstand 1
3
O
2
sensor coupler bracket
1
4
O
2
sensor coupler
1 Disconnect.
5 Muffler assembly 1
6 Exhaust gasket 3
7 Muffler protector 1
3
4
5
6
7
(6)
LT
LT
1
2
10 N・m (1.0 kgf・m, 7.2 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
20 N・m (2.0 kgf・m, 14 lb・ft)
20 N・m (2.0 kgf・m, 14 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
48 N・m (4.8 kgf・m, 35 lb・ft)
