ENGINE REMOVAL
5-7
EAS30250

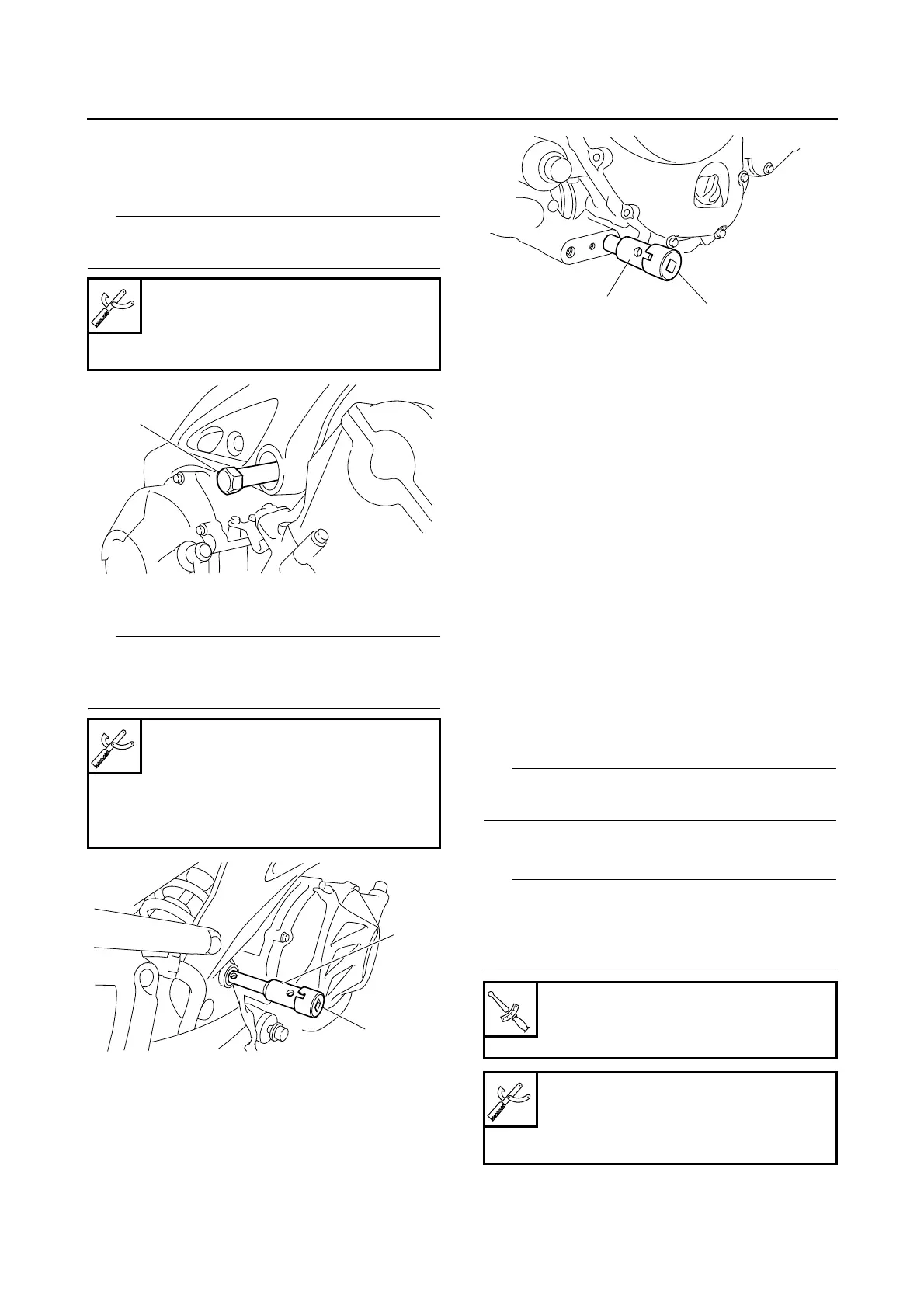

REMOVING THE ENGINE
1. Loosen:
• Engine mounting adjust bolt (front)
Loosen the engine mounting adjust bolt with the
pivot shaft wrench “1”.
2. Loosen:
• Engine mounting adjust bolt (rear)
Loosen the engine mounting adjust bolts with
the pivot shaft wrench “1” and pivot shaft wrench
adapter “2”.
EAS30251
INSTALLING THE ENGINE
1. Install:
• Engine mounting adjust bolt (front) “1”
(temporarily tighten)
• Engine mounting adjust bolt (rear) “2”
(temporarily tighten)
2. Install:
• Engine
3. Install:
• Engine mounting bolt (rear upper side) “3”
• Engine mounting bolt (rear lower side) “4”
4. Install:
• Centerstand bracket bolt (left) “5”
(temporarily tighten)
5. Install:
• Engine mounting bolt (left front upper side)
“6”
• Engine mounting bolt (left front lower side) “7”
• Engine mounting bolt (right front lower side)
“8”
Temporarily tighten the engine mounting bolts
“6”–“8”.
6. Tighten:
• Engine mounting adjust bolt (front) “1”
• Tighten the engine mounting adjust bolt to
specification with the pivot shaft wrench.
• Make sure that the flange on the engine
mounting adjust bolt contacts the engine.
Pivot shaft wrench
90890-01485
Frame mount insert wrench
YM-01485
Pivot shaft wrench
90890-01518
Frame spanner socket
YM-01518
Pivot shaft wrench adapter
90890-01476
Engine mounting adjust bolt
(front)
7 N·m (0.7 kgf·m, 5.1 lb·ft)
Pivot shaft wrench
90890-01485
Frame mount insert wrench
YM-01485
To Next Page
