GENERAL CHASSIS (2)
4-10
EAS31379

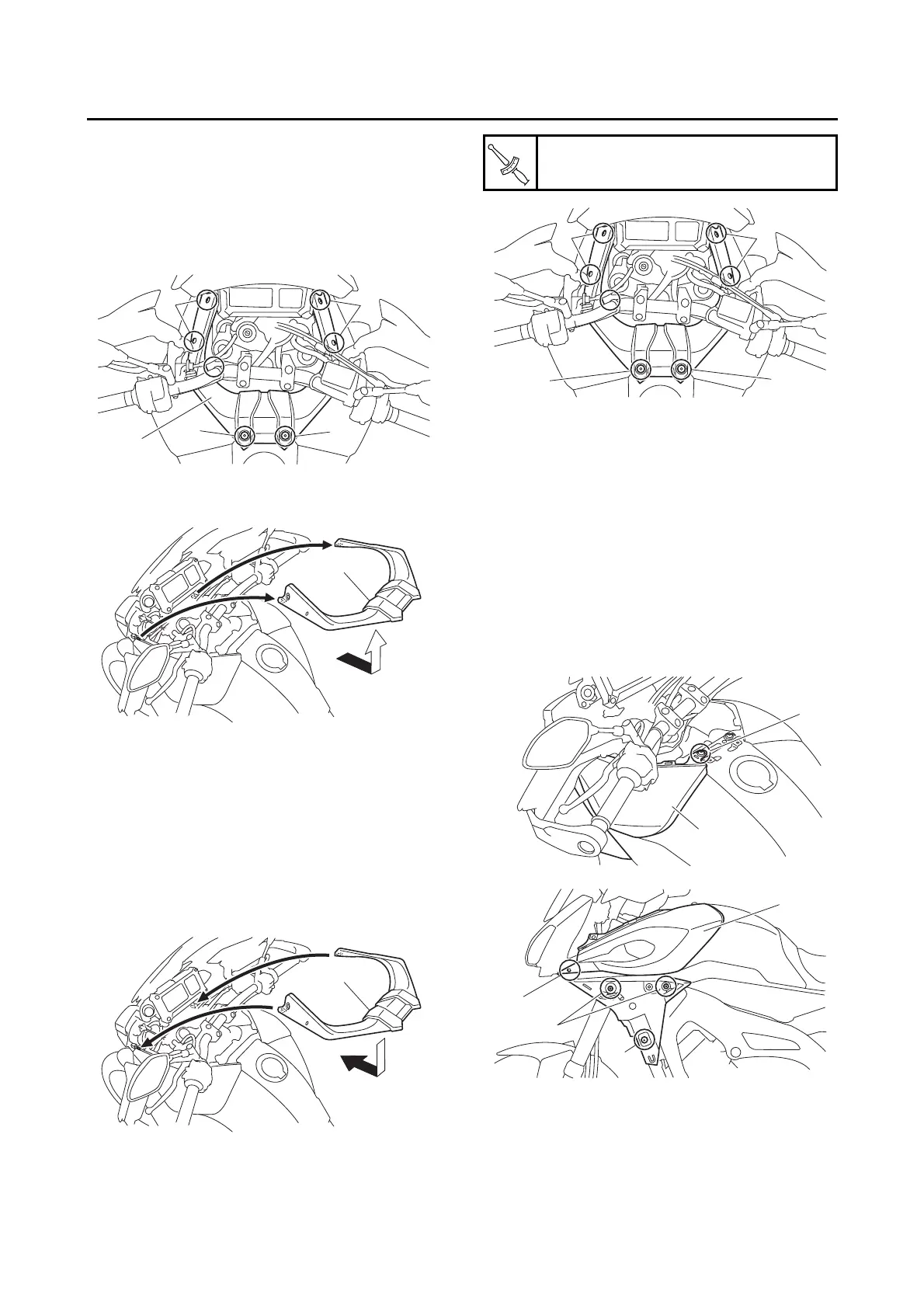

REMOVING THE FUEL TANK FRONT COVER
1. Remove:
• Fuel tank front cover “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the quick fastener screws “2” and
fuel tank front cover bolts “3”.
b. Remove the fuel tank front cover “1” by slid-
ing it rearward.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS31380
INSTALLING THE FUEL TANK FRONT
COVER
1. Install:
• Fuel tank front cover “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the fuel tank front cover “1” by sliding it
forward.
b. Install the fuel tank front cover bolts “2” and
quick fastener screws “3”, and then tighten
the bolts to specification.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS31381
REMOVING THE FRONT SIDE COWLINGS
1. Remove:
• Fuel tank front cover
• Front side panel
2. Remove:
• Front side cowling (left) “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the front side cowling bolts “2”, front
side cowling screw “3” and quick fastener
screw “4”.
b. Disengage portion “a”, and then remove the
front side cowling by sliding it in the direction
shown in the illustration.
3
3
2
2
1
1
1
Fuel tank front cover bolt
4.0 N·m (0.40 kgf·m, 2.9 lb·ft)
T
R
.
.
2
2
3
3
1
2
1
2
3
4
