Yamaha Tracer MT09TRAH 2017 User Manual

HANDLEBAR
4-74
WARNING
EWA13700
Do not touch the handlebar grip until the rub-
ber adhesive has fully dried.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
10.Adjust:
• Throttle grip free play
Refer to “CHECKING THE THROTTLE
GRIP” on page 3-29.
11.Adjust:
• Clutch lever free play
Refer to “ADJUSTING THE CLUTCH LEVER
FREE PLAY” on page 3-12.
EAS31386

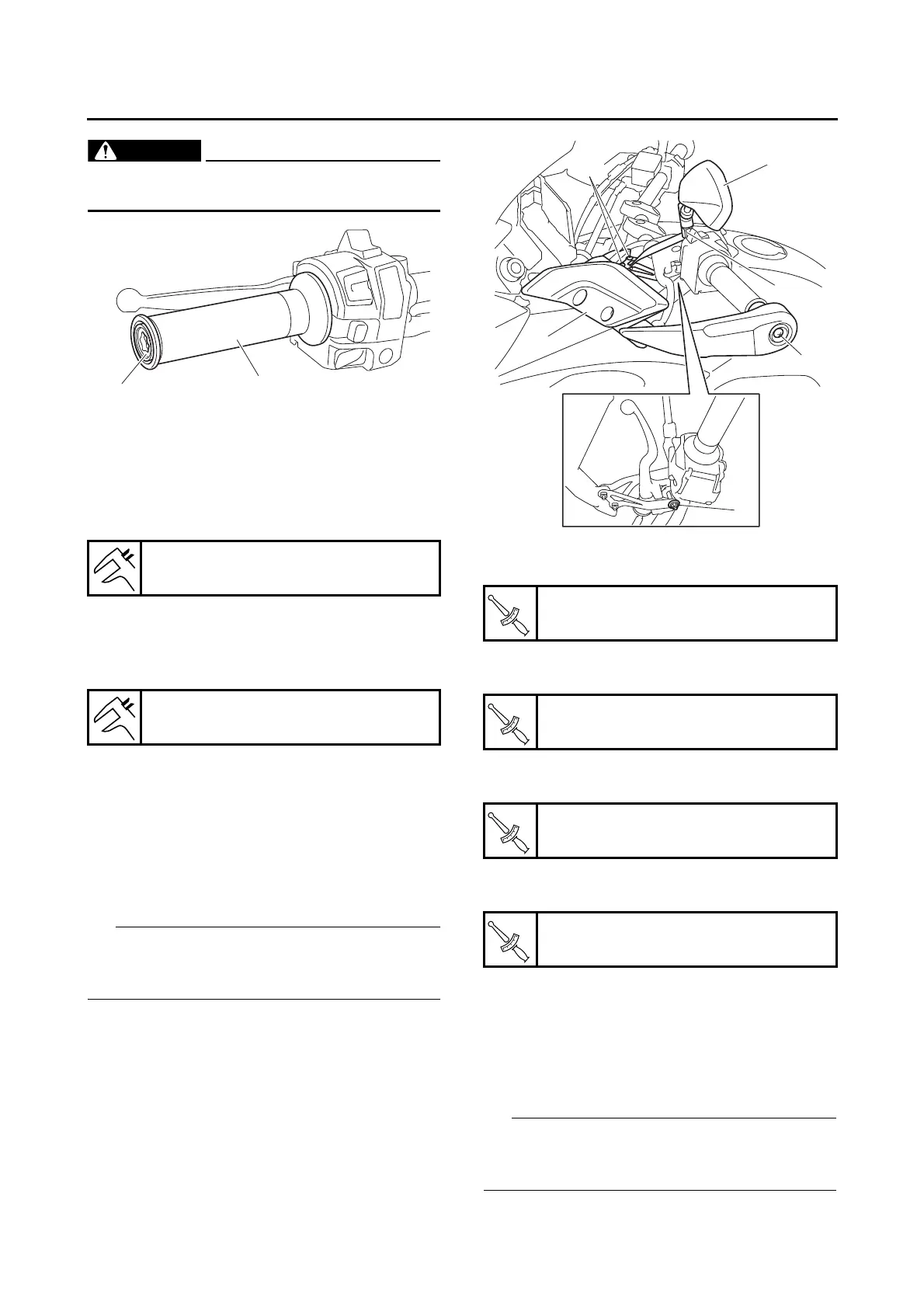

INSTALLING THE REARVIEW MIRRORS
AND HANDGUARDS
1. Install:
• Handguard (left) “1”
• Rearview mirror (left) “2”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the handguard and rearview mirror.
TIP
Temporarily tighten the handguard bracket bolts
“3”, rearview mirror locknut “4”, handguard bolt
“5” and handguard bracket nut “6”.
b. Tighten the handguard bracket bolts “3” to
specification.
c. Tighten the rearview mirror locknut “4” to
specification.
d. Tighten the handguard bolt “5” to specifica-
tion.
e. Tighten the handguard bracket nut “6” to
specification.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Install:
• Handguard (right) “1”
• Rearview mirror (right) “2”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the handguard and rearview mirror.
TIP
Temporarily tighten the handguard bracket bolts
“3”, rearview mirror locknut “4”, handguard bolt
“5” and handguard bracket nut “6”.
Throttle grip free play
3.0–5.0 mm (0.12–0.20 in)
Clutch lever free play
10.0–15.0 mm (0.39–0.59 in)
1
2
Handguard bracket bolt
7 N·m (0.7 kgf·m, 5.1 lb·ft)
Rearview mirror locknut
17 N·m (1.7 kgf·m, 12 lb·ft)
Handguard bolt
17 N·m (1.7 kgf·m, 12 lb·ft)
Handguard bracket nut (left)
7 N·m (0.7 kgf·m, 5.1 lb·ft)
1
2
4
5
6
3
T
R
.
.
T
R
.
.
T
R
.
.
T
R
.
.
