REAR BRAKE
4-48
EAS20031
REAR BRAKE

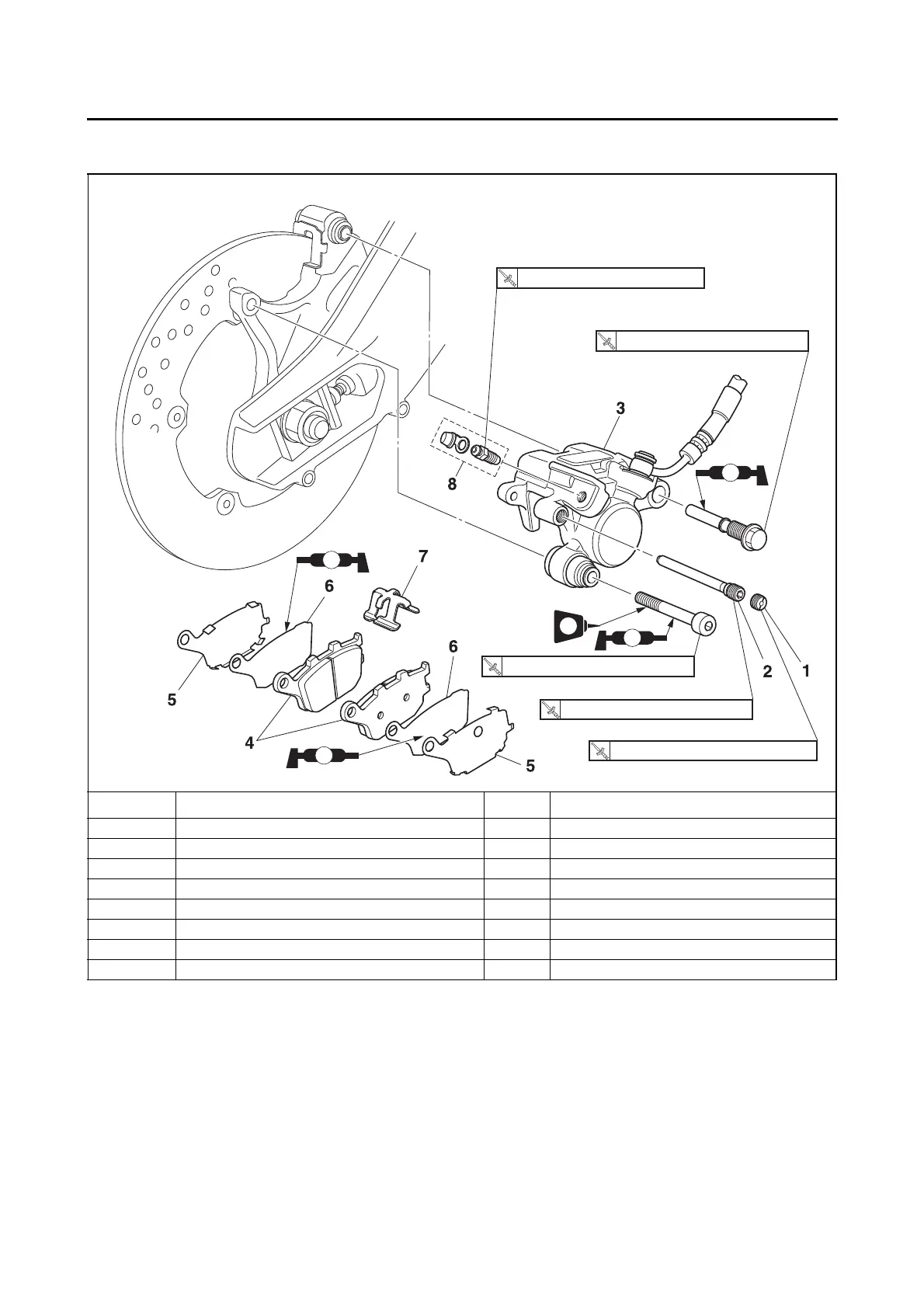

Removing the rear brake pads
Order Job/Parts to remove Q’ty Remarks
1 Screw plug 1
2 Brake pad retaining bolt 1
3 Rear brake caliper 1
4Brake pad 2
5 Brake pad shim 2
6 Brake pad insulator 2
7 Brake pad spring 1
8 Bleed screw 1
LT
S
S
S
S
5 N・m (0.5 kgf・m, 3.6 lb・ft)
27 N・m (2.7 kgf・m, 20 lb・ft)
17 N・m (1.7 kgf・m, 12 lb・ft)
22 N・m (2.2 kgf・m, 16 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
