TRANSMISSION
5-77
EAS20062
TRANSMISSION

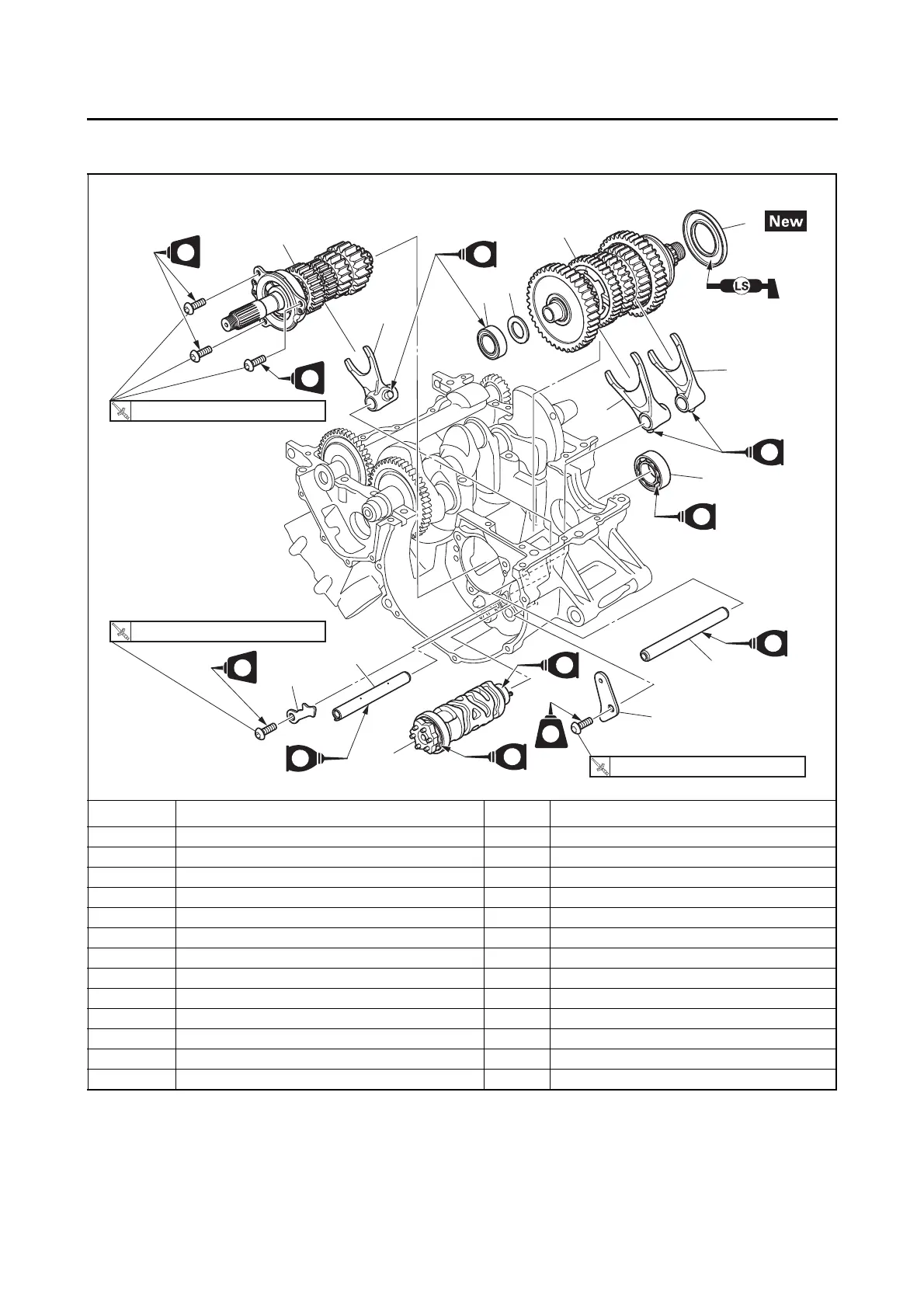

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Lower crankcase Refer to “CRANKCASE” on page 5-57.
1 Drive axle assembly 1
2 Oil seal 1
3 Bearing 1
4Washer 1
5 Shift drum retainer 2
6 Shift fork guide bar 2
7 Shift fork-L 1
8 Shift fork-R 1
9 Shift drum assembly 1
10 Shift fork-C 1
11 Main axle assembly 1
12 Bearing 1
1
2
3
4
5
6
7
8
9
10
11
E
LT
LT
LT
E
E
E
E
E
5
6
LT
E
12
10 N・m (1.0 kgf・m, 7.2 lb・ft)
10 N・m (1.0 kgf・m, 7.2 lb・ft)
12 N・m (1.2 kgf・m, 8.7 lb・ft)
