SWINGARM
4-96
EAS30226

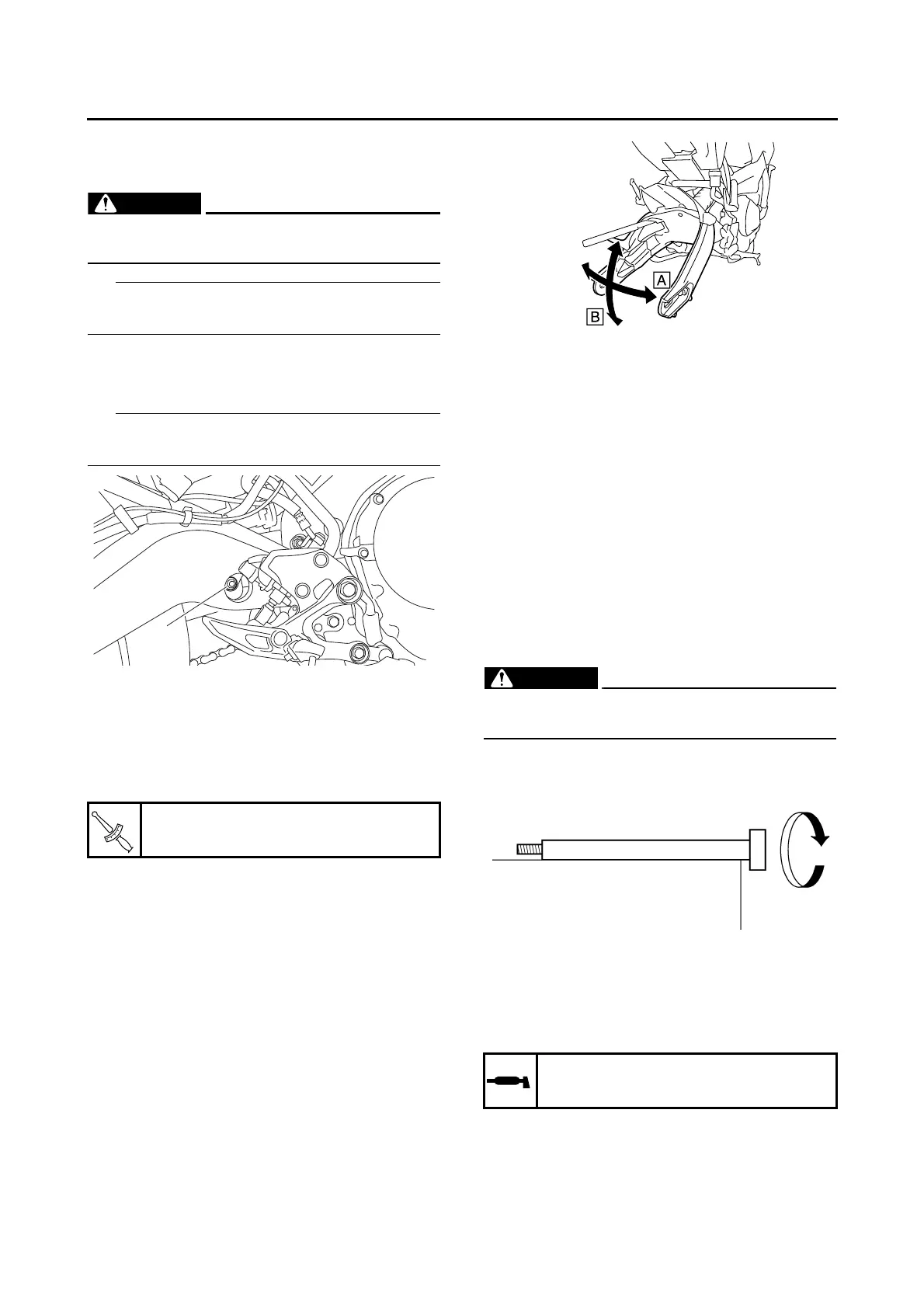

REMOVING THE SWINGARM
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Place the vehicle on the centerstand so that the
rear wheel is elevated.
2. Remove:
• Connecting arm lower nut “1”
• Connecting arm lower bolt
When removing the bolt, hold the swingarm so
that it does not drop down.
3. Measure:
• Swingarm side play
• Swingarm vertical movement
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Measure the tightening torque of the pivot
shaft nut.
b. Check the swingarm side play “A” by moving
the swingarm from side to side.
If the swingarm has side-to-side play, check
the collars, bearings, and dust covers.
c. Check the swingarm vertical movement “B”
by moving the swingarm up and down.
If the swingarm vertical movement is not
smooth or if there is binding, check the pivot
shaft, collars, bearings, and dust covers.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Remove:
• Drive chain
Refer to “REMOVING THE DRIVE CHAIN”
on page 4-99.
• Swingarm
EAS30227
CHECKING THE SWINGARM
1. Check:
• Swingarm
Bends/cracks/damage Replace.
2. Check:
• Pivot shaft
Roll the pivot shaft on a flat surface.
Bends Replace.
EWA13770
Do not attempt to straighten a bent pivot
shaft.
3. Wash:
• Pivot shaft
• Dust covers
• Collars
• Washer
4. Check:
• Dust covers “1”
• Oil seals “2”
Damage/wear Replace.
Pivot shaft nut
110 N·m (11 kgf·m, 80 lb·ft)
Recommended cleaning solvent
Kerosene
To Next Page
