BASIC SERVICE INFORMATION
EAS30013
QUICK FASTENERS

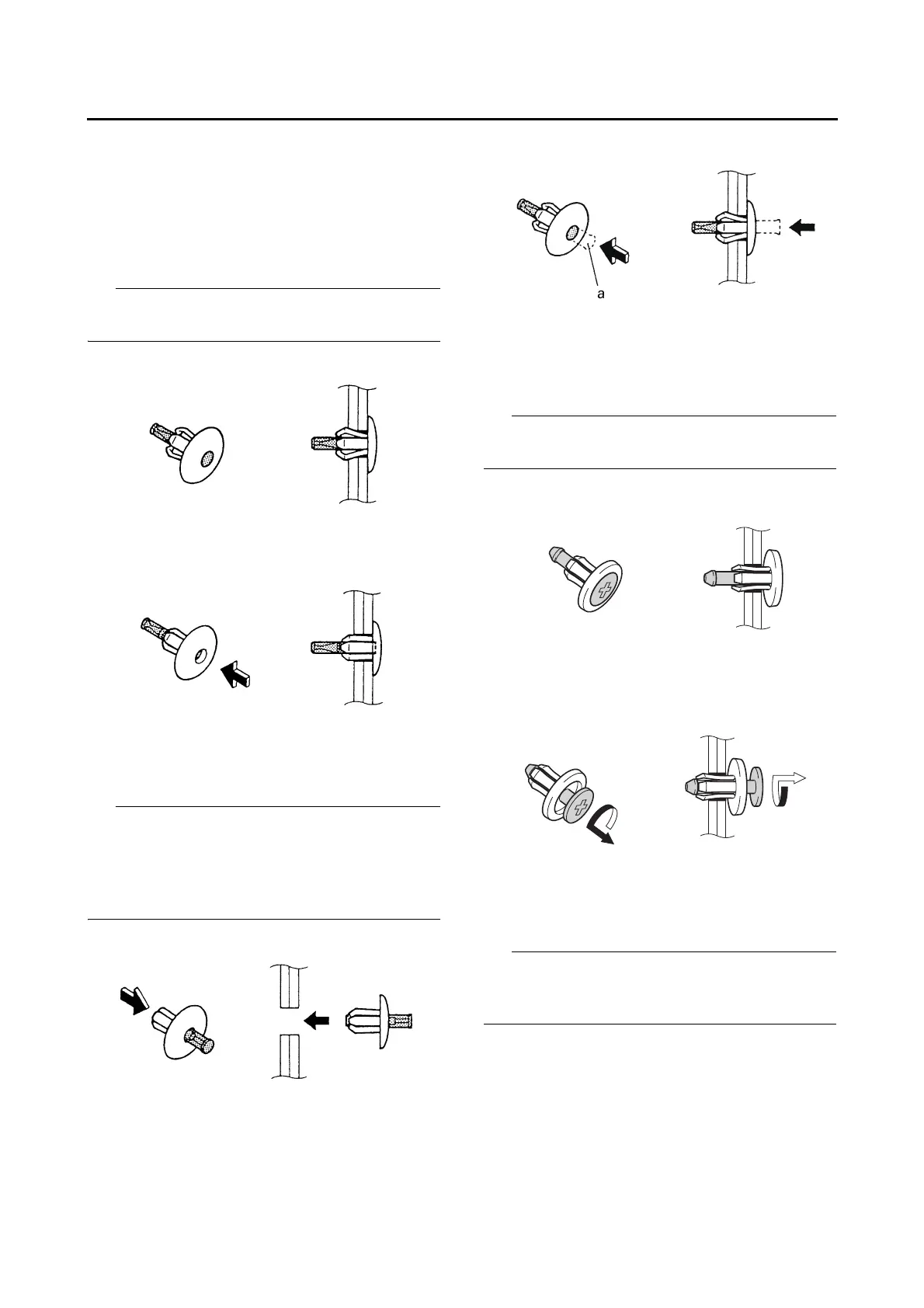

Rivet type
1. Remove:
• Quick fastener
To remove the quick fastener, push its pin with a
screwdriver, then pull the fastener out.
2. Install:
• Quick fastener
To install the quick fastener, push its pin so that
it protrudes from the fastener head, then insert
the fastener into the part to be secured and push
the pin “a” in with a screwdriver. Make sure that
the pin is flush with the fastener’s head.
Screw type
1. Remove:
• Quick fastener
To remove the quick fastener, loosen the screw
with a screwdriver, then pull the fastener out.
2. Install:
• Quick fastener
To install the quick fastener, insert the fastener
into the part to be secured and tighten the screw
“a”.
