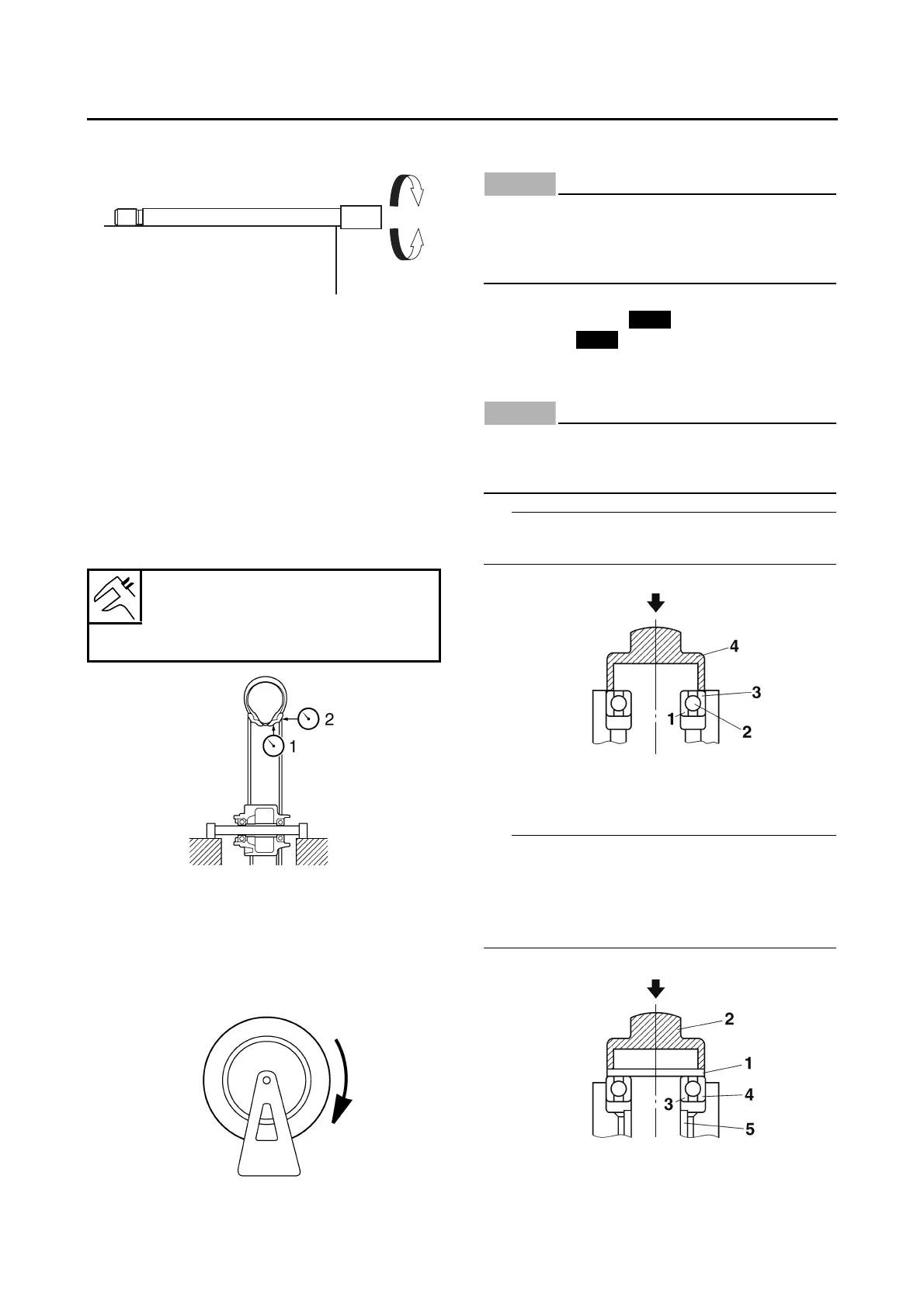

FRONT WHEEL
4-22
2. Check:
• Tire
• Front wheel
Damage/wear Replace.
Refer to “CHECKING THE TIRES” on page
3-16 and “CHECKING THE WHEELS” on
page 3-16.
3. Measure:
• Radial wheel runout “1”
• Lateral wheel runout “2”
Over the specified limits Replace.
4. Check:
• Wheel bearings
Front wheel turns roughly or is loose Re-
place the wheel bearings.
• Oil seals
Damage/wear Replace.
EAS30151
ASSEMBLING THE FRONT WHEEL
ECA21340
• Do not drop the wheel sensor rotor or sub-
ject it to shocks.
• If any solvent gets on the wheel sensor ro-
tor, wipe it off immediately.
1. Install:
• Wheel bearings
• Oil seals
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the new wheel bearing (right side).
ECA18110
Do not contact the wheel bearing inner race
“1” or balls “2”. Contact should be made
only with the outer race “3”.
Use a socket “4” that matches the diameter of
the wheel bearing outer race.
b. Install the spacer.
c. Install the new wheel bearing (left side).
Place a suitable washer “1” between the socket
“2” and the bearing so that both the inner race
“3” and outer race “4” are pressed at the same
time, and then press the bearing until the inner
race makes contact with the spacer “5”.
d. Install the new oil seals.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
