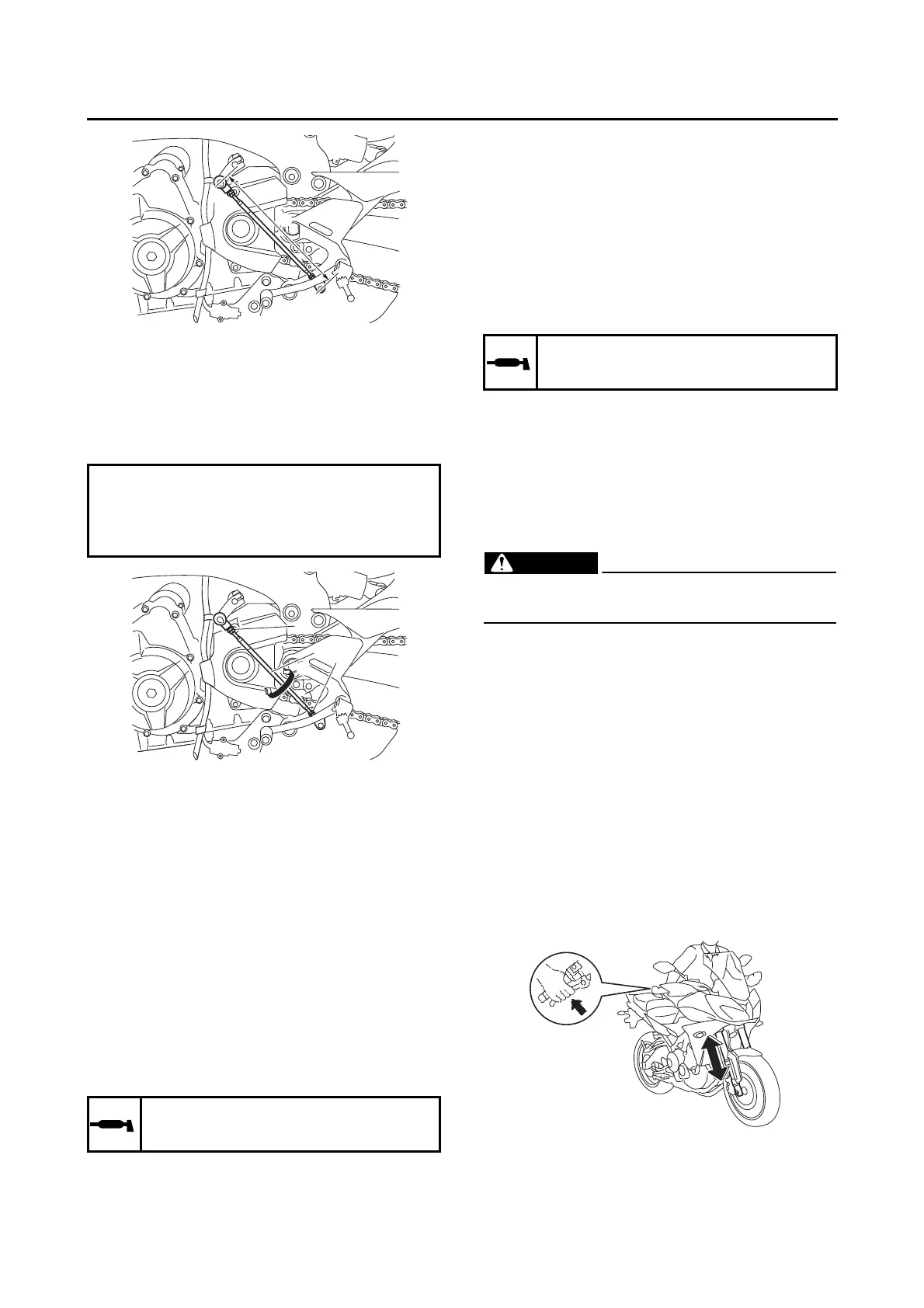

2. Adjust:
• Installed shift rod length
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Loosen both locknuts “1”.
b. Turn the shift rod “2” in direction “a” or “b” to
obtain the correct shift pedal position.
c. Tighten both locknuts.
d. Make sure the installed shift rod length is
within specification.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS30650
CHECKING THE SIDESTAND
1. Check:
• Sidestand operation
Check that the sidestand moves smoothly.
Rough movement Repair or replace.
EAS30651
LUBRICATING THE SIDESTAND
Lubricate the pivoting point, metal-to-metal mov-
ing parts and spring contact point of the sides-
tand.
EAS30856
CHECKING THE CENTERSTAND
1. Check:
• Centerstand operation
Check that the centerstand moves smoothly.
Rough movement Repair or replace.
EAS30857
LUBRICATING THE CENTERSTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the centerstand.
EAS30652
CHECKING THE SIDESTAND SWITCH
Refer to “ELECTRICAL COMPONENTS” on
page 8-149.
EAS30653
CHECKING THE FRONT FORK
1. Stand the vehicle on a level surface.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Check:
• Inner tube
Damage/scratches Replace.
• Front fork leg
Oil leaks between inner tube and outer tube
Replace the oil seal.
3. Hold the vehicle upright and apply the front
brake.
4. Check:
• Front fork operation
Push down hard on the handlebar several
times and check if the front fork rebounds
smoothly.
Rough movement Repair.
Refer to “FRONT FORK” on page 4-76.
EAS30806
ADJUSTING THE FRONT FORK LEGS
The following procedure applies to both of the
Direction “a”
Installed shift rod length increases.
Direction “b”
Installed shift rod length decreases.
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
